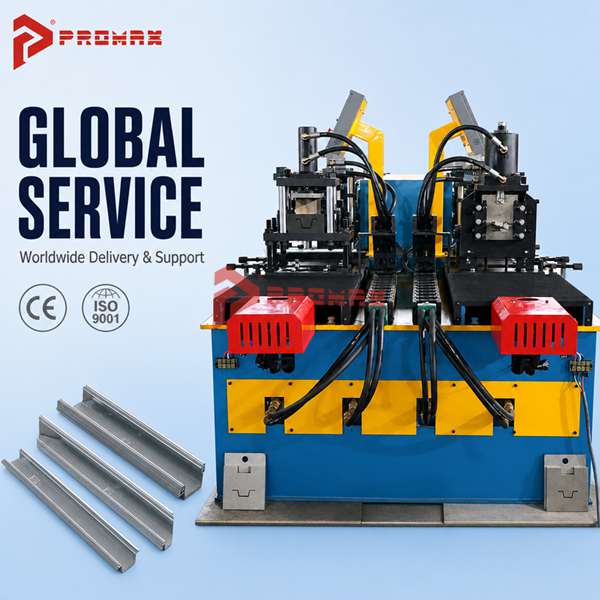

LIGHT KEEL ROLL FORMING MACHINE

Light Keel Roll Forming Machine | PROMAX

The light keel roll forming machine from PROMAX is designed for manufacturers producing light steel framing profiles for drywall partitions, suspended ceilings, interior walls, and light gauge construction systems. The machine continuously forms galvanized steel coils into customized light keel profiles, providing an efficient production solution for construction material manufacturers, steel framing suppliers, and profile distributors.

PROMAX develops each light keel roll forming machine according to the customer's profile requirements and production specifications. The forming rollers can be manufactured based on supplied profile drawings, while material thickness, coil width, profile dimensions, punching requirements, cutting length, and production capacity can be considered during machine configuration. This enables manufacturers to produce different light keel profiles for specific drywall, ceiling, partition, and light steel framing applications.

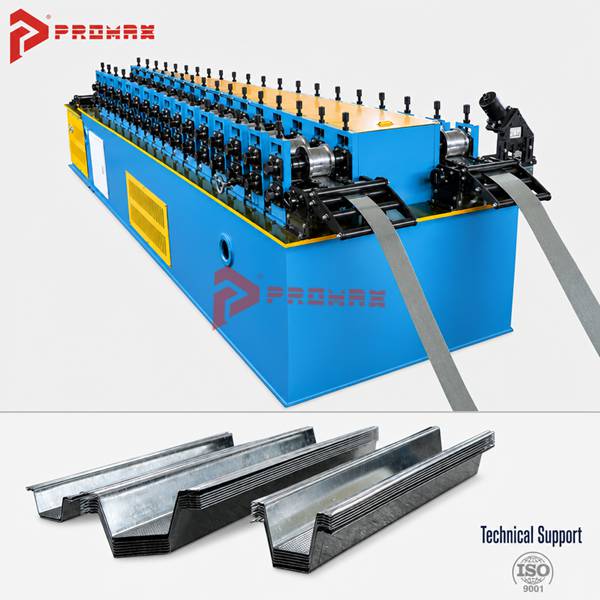

The production process begins with galvanized or other suitable steel coils loaded onto the decoiler. The strip is then guided through the feeding and leveling section before entering the roll forming system. Multiple forming stations gradually shape the steel strip into the required light keel profile. Each forming stage performs a controlled bending operation, helping maintain consistent dimensions and profile geometry throughout continuous production.

For manufacturers looking for a light keel roll forming machine, production flexibility and profile accuracy are important considerations. PROMAX can customize the forming system according to different light steel profile designs rather than limiting customers to a fixed standard configuration. Customers can provide C profile, U profile, ceiling channel, or other light keel drawings for technical evaluation before production.

The machine can be equipped with automatic punching systems for service holes, positioning holes, slots, or other openings required by the profile design. After forming, an automatic cutting system can cut the finished light keel profiles to the programmed length. Depending on the production requirements, PLC control, servo feeding, length measurement, automatic collection, and other auxiliary functions can also be integrated into the production line.

Light steel keels are widely used as framing components in drywall systems, suspended ceilings, interior partitions, and lightweight construction. Depending on the profile design, C studs, U tracks, ceiling channels, furring channels, and other light steel sections can be manufactured using customized roll forming equipment. A dedicated production line allows manufacturers to produce these profiles continuously while maintaining control over dimensions, finished length, and production specifications.

The PROMAX light keel roll forming machine is suitable for drywall profile manufacturers, ceiling system producers, light gauge steel framing factories, construction material suppliers, and distributors developing their own metal profile product lines. The machine can be configured for different profile sizes, steel materials, thicknesses, and punching patterns according to the customer's product range and target market.

Before manufacturing, PROMAX engineers can review the customer's light keel profile drawings, material information, required production speed, punching pattern, and finished profile length. Based on these details, the machine configuration can be developed around the customer's actual production process. This helps ensure that the forming rollers, punching system, cutting unit, and control system are properly matched to the intended profile.

PROMAX provides technical support throughout the equipment project, including profile analysis, machine configuration, manufacturing, factory testing, installation guidance, and after-sales technical support. For customers evaluating a light keel roll forming machine, providing the profile drawing and basic production requirements is a practical first step for confirming machine compatibility and production configuration.

With its customized forming system, progressive roll forming process, automatic control options, and flexible production configuration, the PROMAX light keel roll forming machine provides a practical solution for manufacturers producing light steel framing profiles in-house. Contact PROMAX with your profile drawings and production requirements to receive a customized technical proposal for your light keel production line.
