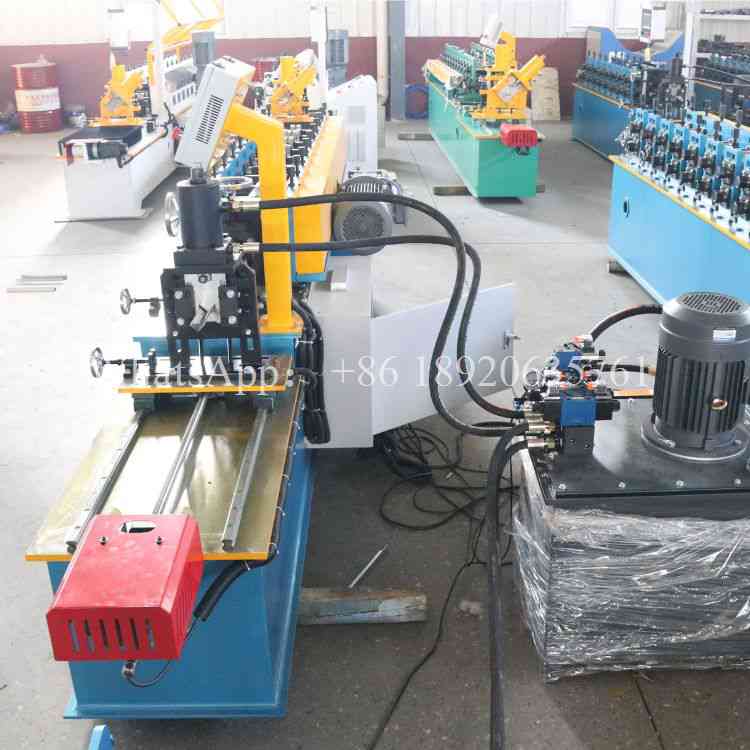

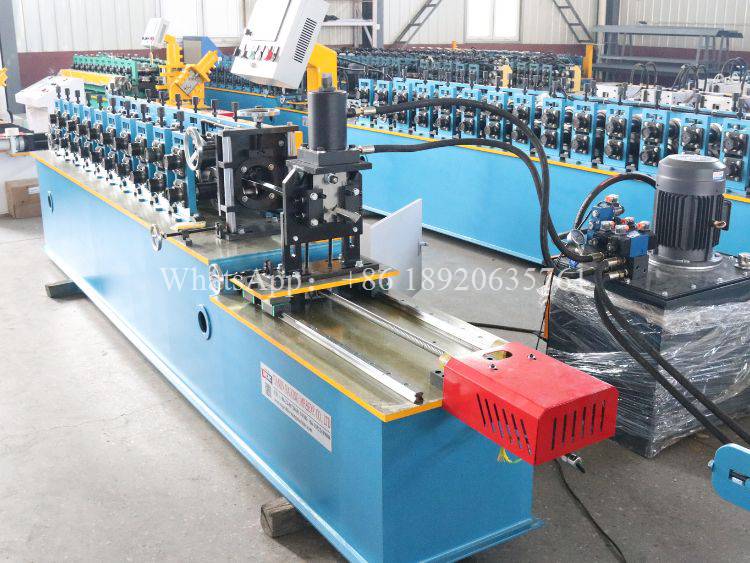

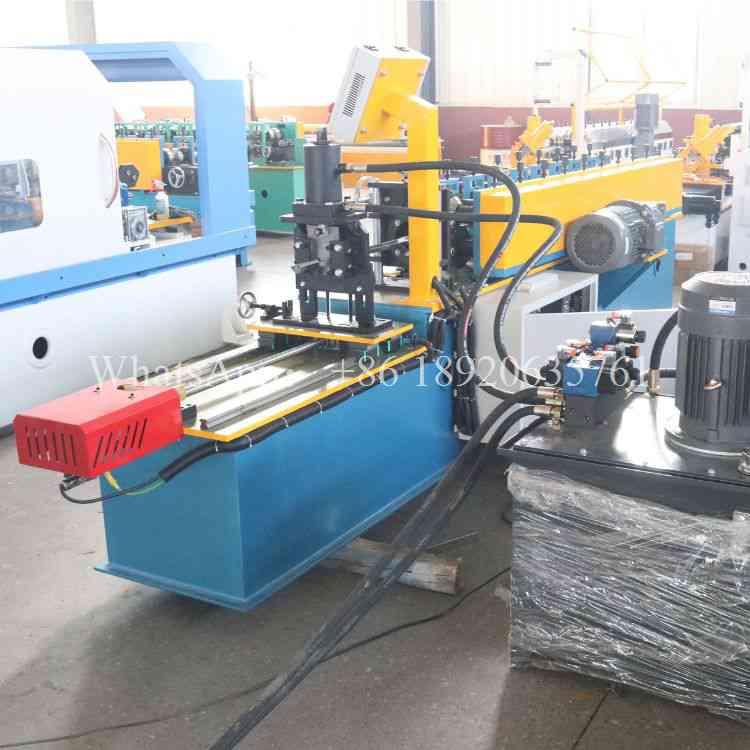

In the demanding sectors of modern construction, industrial framing, and infrastructure development, the margin for error is zero. The L-shaped steel angle is a cornerstone component, providing critical structural integrity as framing studs, support braces, and reinforcement elements. The precision of its 90-degree geometry directly dictates the strength, alignment, and assembly speed of the final structure. To meet this imperative for flawless manufacturing, we introduce our High-precision L Shaped Steel Angle Roll Forming Machine. The High-precision L Shaped Steel Angle Roll Forming Machine is more than equipment; it is a commitment to quality, designed for manufacturers who will not compromise on the foundational components of their projects.

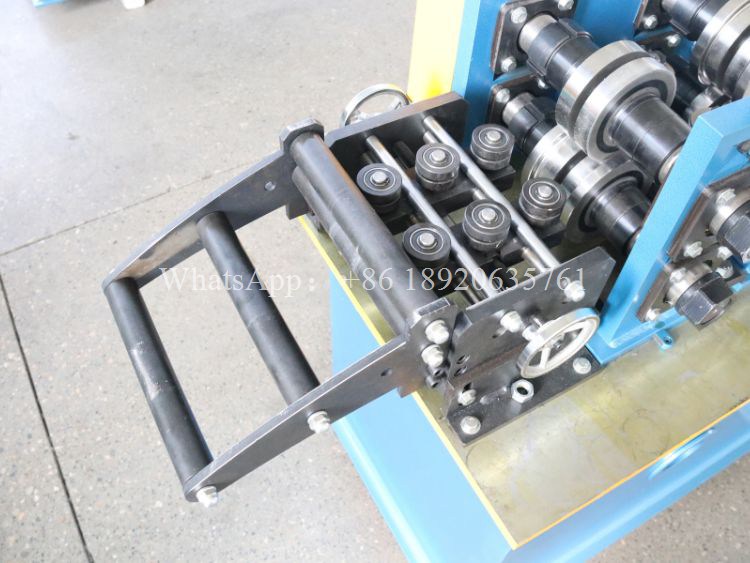

The process initiates with precision decoiling and feeding, guaranteeing a smooth and stable introduction of galvanized steel coil—the essential first step for dimensional consistency.

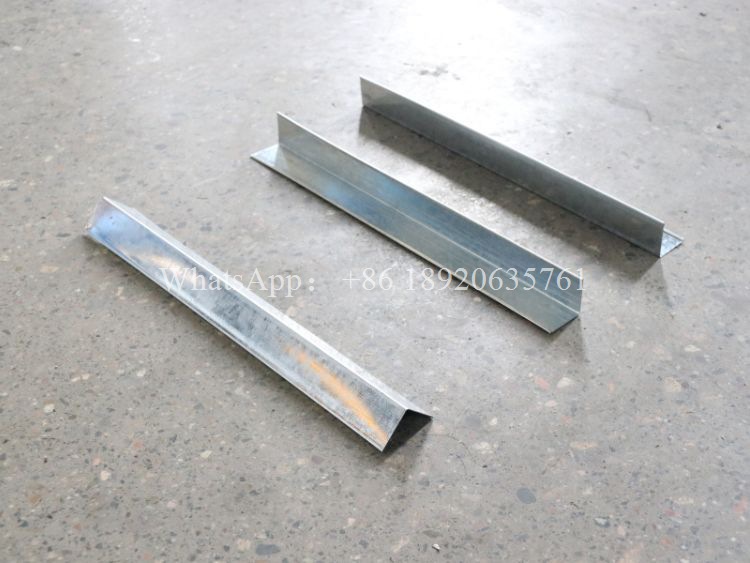

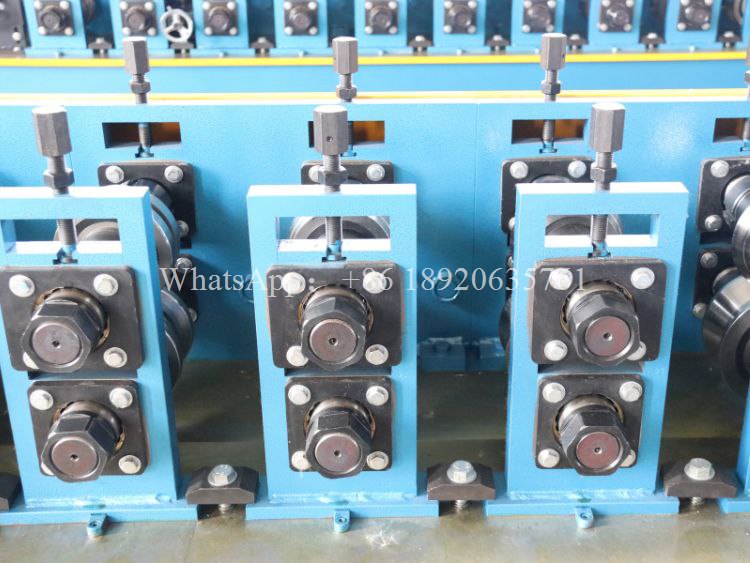

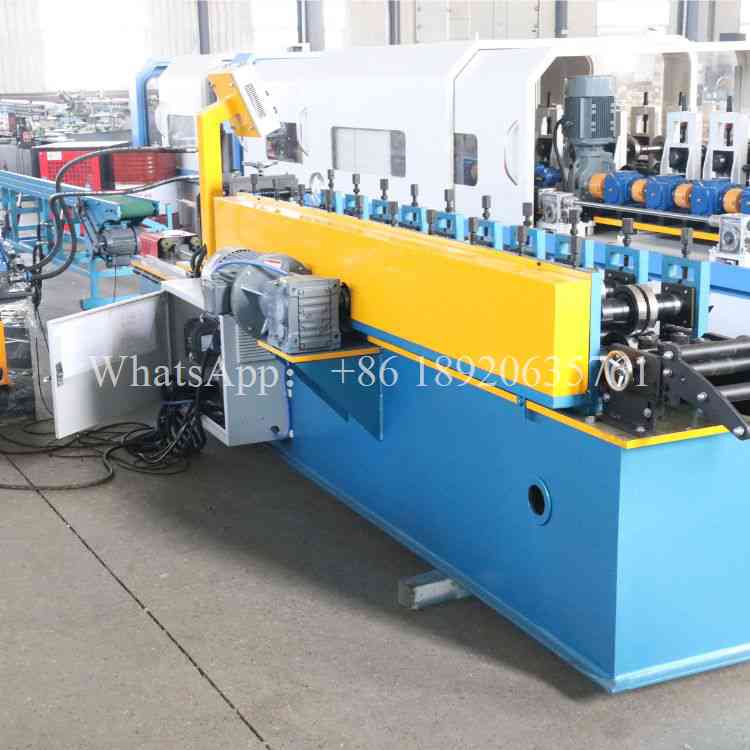

The core of the system is its advanced, multi-stage roll forming station, featuring digitally calibrated, hardened tooling. Here, the flat steel strip is progressively shaped through incremental bends, resulting in a perfect L-profile with exact leg lengths and a flawless 90-degree angle.

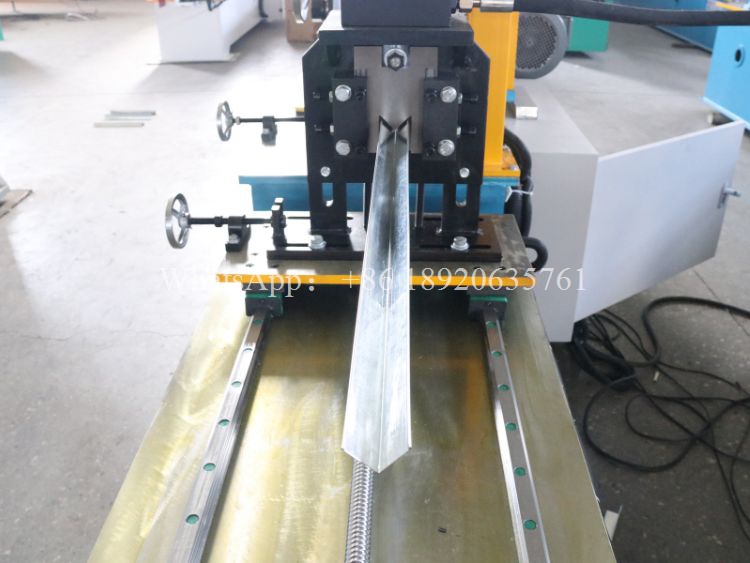

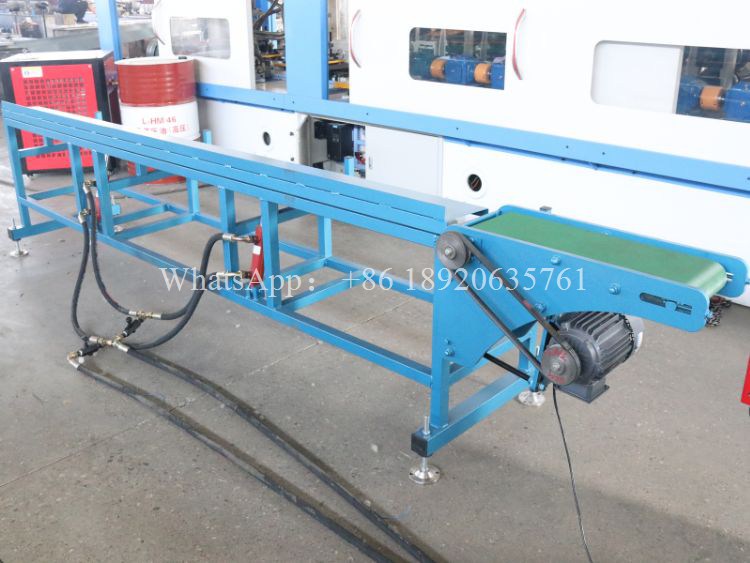

A high-speed servo cutting system then executes clean, burr-free shears at programmed lengths, before finished angles are neatly organized on the receiving frame.
This integrated automation within the High-precision L Shaped Steel Angle Roll Forming Machine ensures repeatable tolerances, maximizes material yield, and provides the reliable output required for large-scale, quality-critical applications.
| Product Name | High-precision L Shaped Steel Angle Roll Forming Machine |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
A pivotal feature of this system is its fusion of extreme customizability with certified international standards. We understand that precision requirements vary. Therefore, the High-precision L Shaped Steel Angle Roll Forming Machine can be tailored to your exact needs: maximum material entry width, specific steel thickness (gauge) capacity, operational voltage, and the touch-screen HMI language are all configurable. This ensures seamless integration into your production line. Crucially, the machine's design and construction are verified by CE certification, providing definitive assurance of its safety, durability, and compliance with rigorous European directives. This certification is a vital asset for accessing regulated global markets and building trust with clients who specify only the highest-quality components.
Investing in the High-precision L Shaped Steel Angle Roll Forming Machine is a strategic decision to build a reputation for reliability and excellence. It empowers your business to manufacture the essential, high-tolerance structural angles that form the backbone of superior construction. By deploying this sophisticated High-precision L Shaped Steel Angle Roll Forming Machine, you are not just purchasing machinery—you are acquiring a precision manufacturing partner engineered for accuracy, adaptability, and long-term competitive advantage.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a High-precision L Shaped Steel Angle Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the High-precision L Shaped Steel Angle Roll Forming Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
