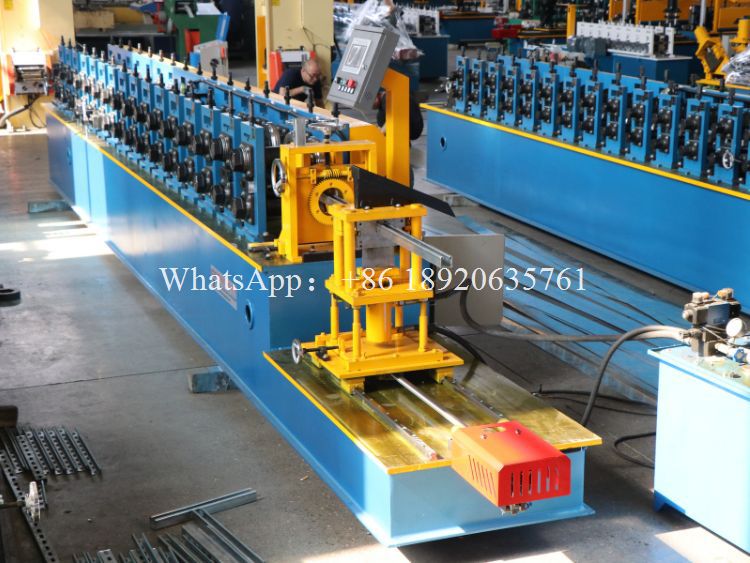

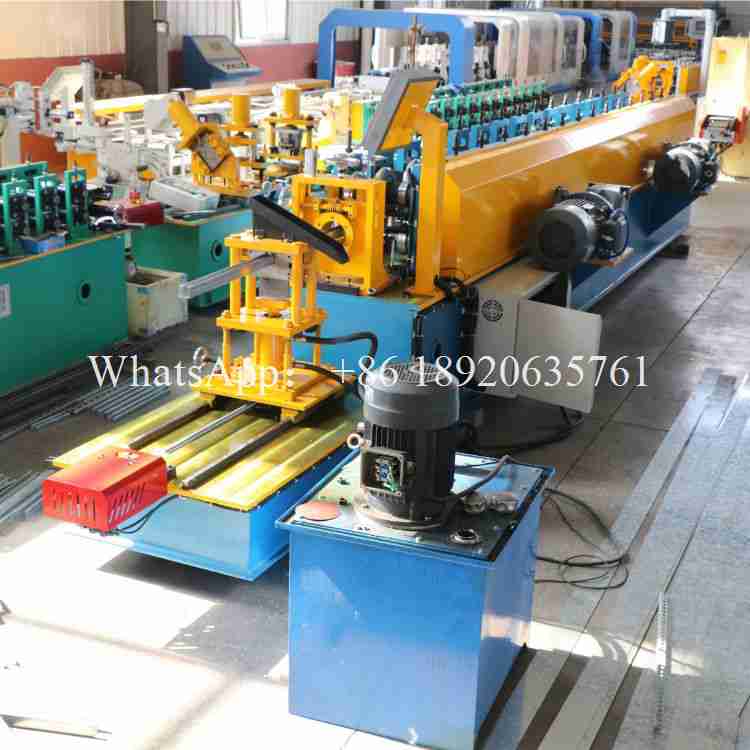

In the construction and drywall framing industry, efficiency is measured not only by speed but by the completeness of the manufacturing process. Producing C-studs that are immediately ready for installation, complete with precise service holes, eliminates costly secondary processing steps and accelerates project timelines. For forward-thinking manufacturers, integrating punching operations directly into the roll forming line represents a significant leap in productivity. Our advanced C Steel Stud Machine for Sale with Punching System is engineered to deliver exactly this advantage. This integrated solution combines precision hole punching with high-speed forming in one seamless, automated sequence.

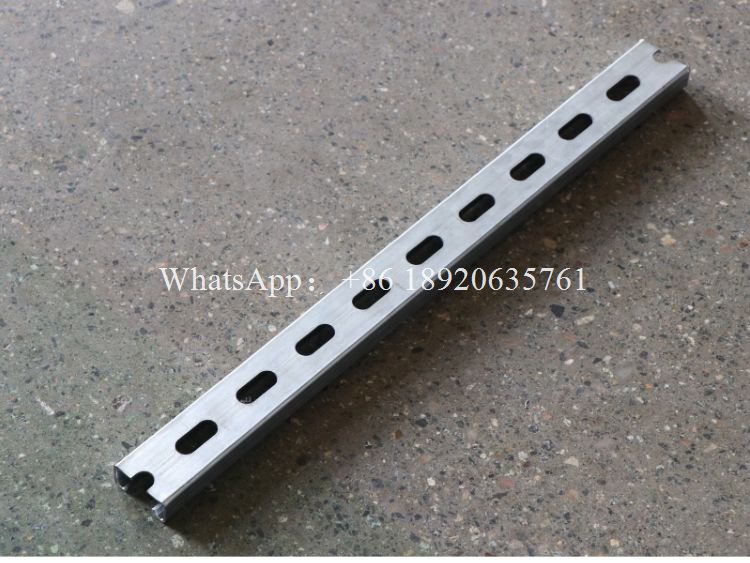

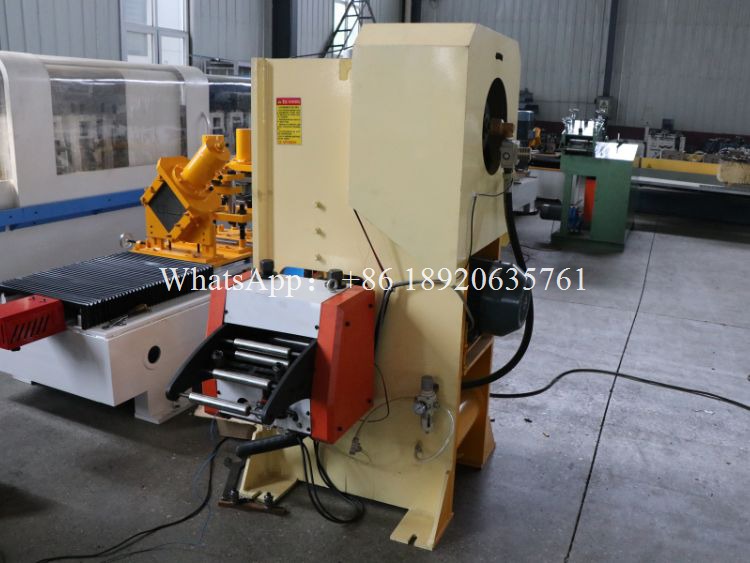

The process strategically begins with the punching stage. A robust punching station accurately creates holes for electrical conduits, plumbing, or fasteners in the flat steel strip before it enters the forming section. This "pre-punch" method ensures clean, deformation-free holes with perfect alignment.
Following punching, the strip is fed through a precision decoiler and servo feeder into the core roll forming unit.

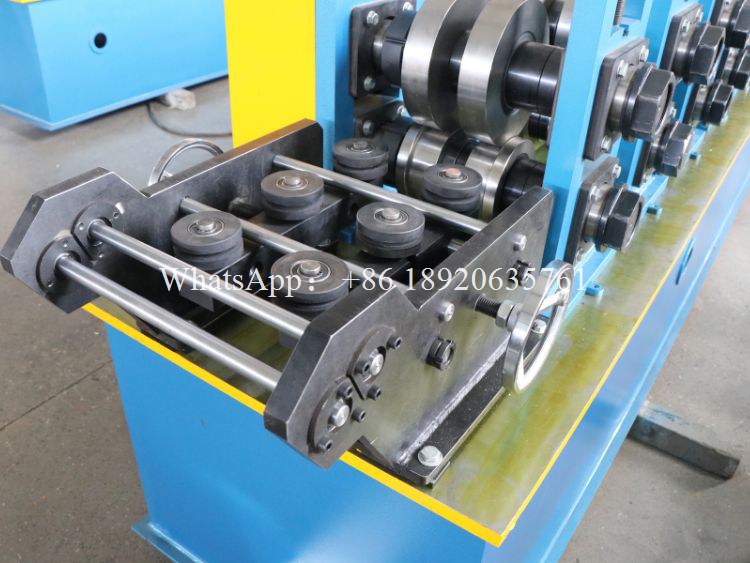

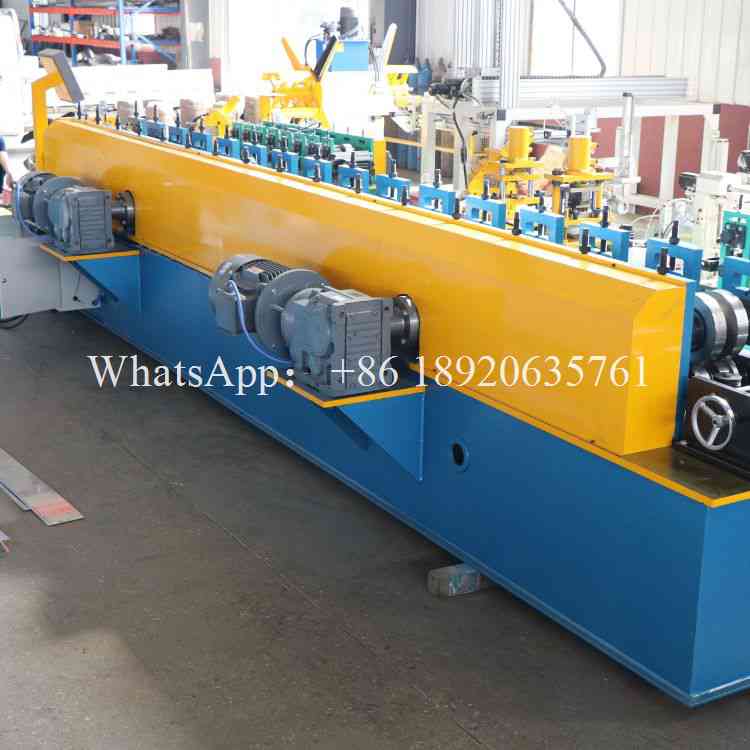

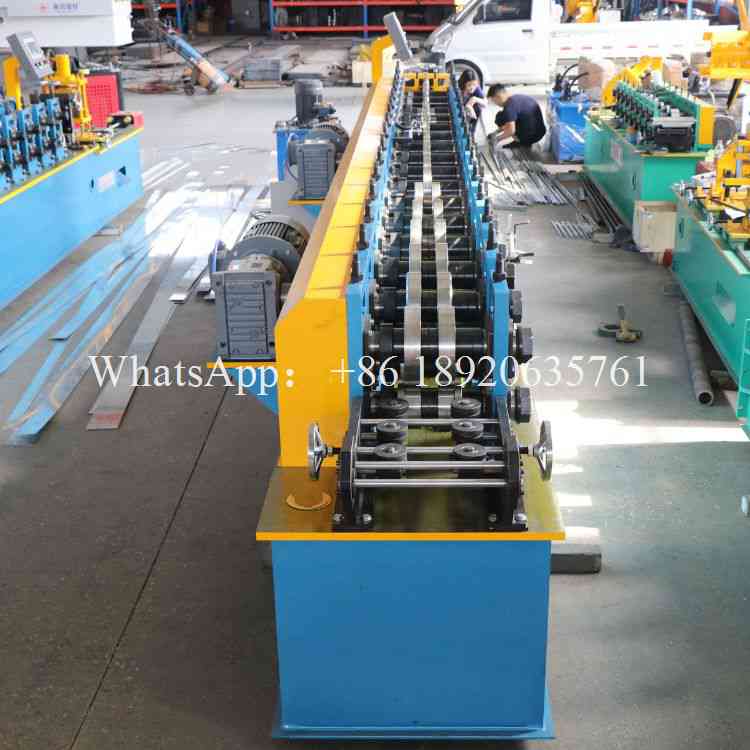

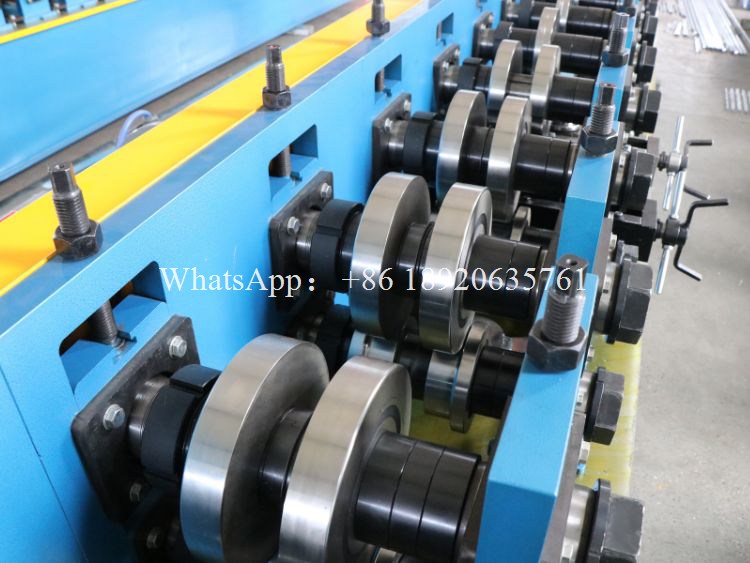

Here, a series of hardened rollers progressively shape the pre-punched strip into a perfect C-profile.

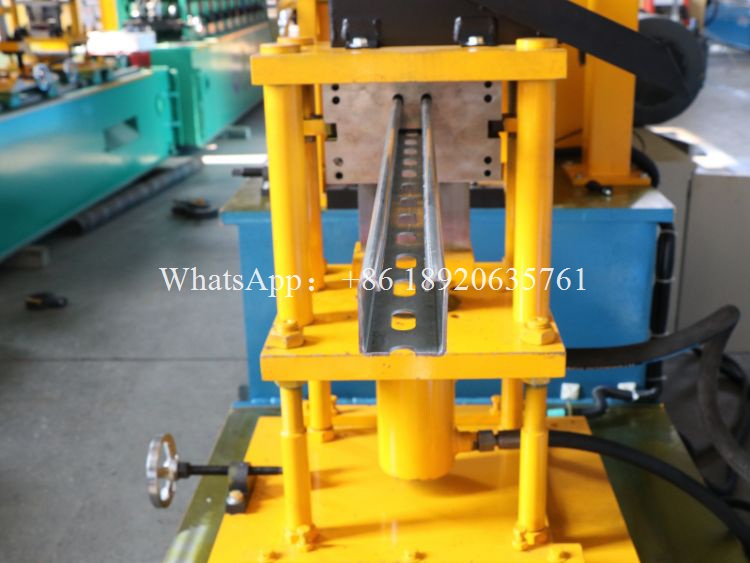

Finally, a high-speed cutting system shears the finished stud to exact lengths.
This integrated flow is the core value of choosing a C Steel Stud Machine for Sale with Punching System, as it consolidates multiple manufacturing steps into one continuous, automated operation, drastically reducing handling time and labor costs.
| Product Name | C Steel Stud Machine for Sale with Punching System |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
The versatility of this C Steel Stud Machine for Sale with Punching System is a key feature for modern manufacturers. It is built to be extensively customized to fit your specific production goals and regional requirements. You have full control over critical parameters: the material entry width can be set to match your coil dimensions, the roll forming thickness (or gauge) can be configured for your required steel strength, and the operational voltage can be tailored to your local power supply. The intuitive touchscreen Human-Machine Interface (HMI) supports multiple language options, ensuring easy operation for your team. Furthermore, the punching patterns—including hole size, spacing, and layout—are fully programmable, allowing you to quickly switch between different customer specifications. This adaptability makes the C Steel Stud Machine for Sale with Punching System a flexible and future-proof asset in your factory.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a C Steel Stud Machine for Sale with Punching System. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the C Steel Stud Machine for Sale with Punching System can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
