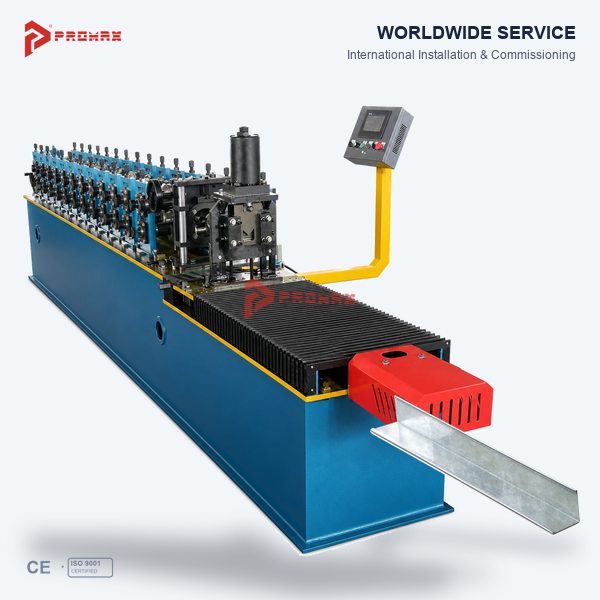

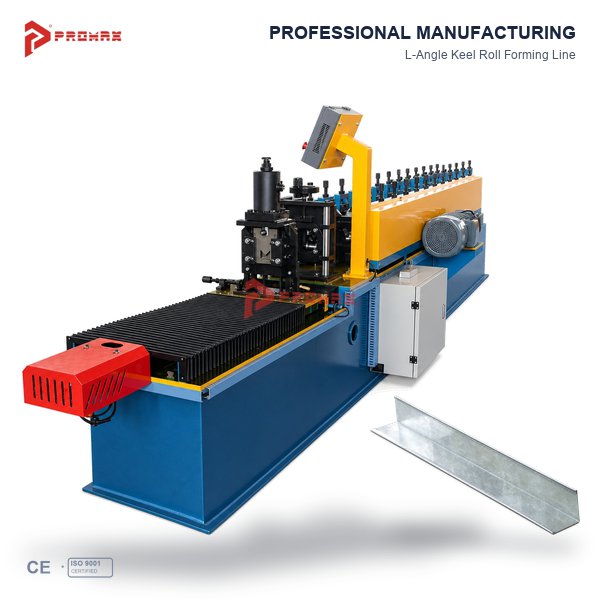

PROMAX Angle Iron Roll Forming Machine

PROMAX Angle Iron Roll Forming Machine for Steel Angle Profile Production

The PROMAX angle iron roll forming machine is designed for manufacturing cold-formed steel angle profiles used in metal framing, construction accessories, industrial components and related applications. Using progressive cold roll forming technology, the equipment transforms suitable steel coils into L-shaped profiles according to customer-supplied drawings and material specifications.

Steel angle profiles are used in a variety of metal fabrication applications where consistent dimensions, straightness and suitable material properties are required. For manufacturers producing cold-formed angle sections, a dedicated roll forming machine provides a continuous manufacturing solution for approved profile designs.

PROMAX supplies customized angle profile roll forming equipment based on the required profile dimensions, steel thickness, material grade and production objectives. Depending on the approved configuration, the equipment can include decoiling, material guiding, forming rollers, automatic cutting and PLC-based production control.

What Is an Angle Iron Roll Forming Machine?

An angle iron roll forming machine is equipment used to manufacture cold-formed metal angle profiles from suitable sheet or strip material.

The machine progressively bends flat steel strip through a series of roller stations until the required angle-shaped cross-section is produced.

Depending on the approved profile design, the finished product may feature equal or unequal leg dimensions and specified bend angles.

Cold-formed angle profiles should be distinguished from hot-rolled structural angle steel, as their manufacturing processes and applicable product specifications may differ.

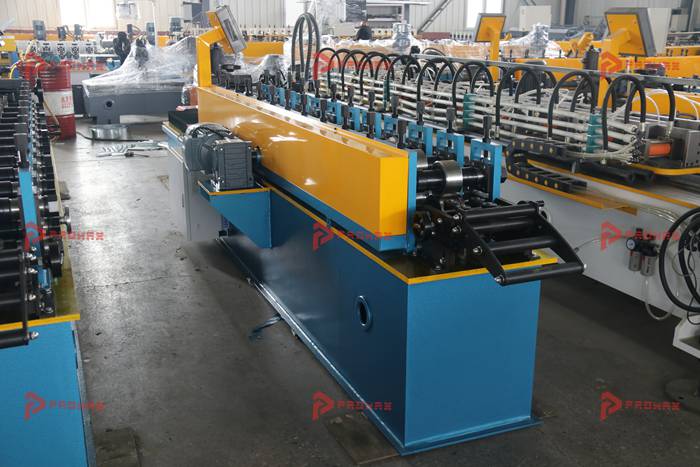

The machine configuration is developed according to the required profile drawing, material properties and production conditions.

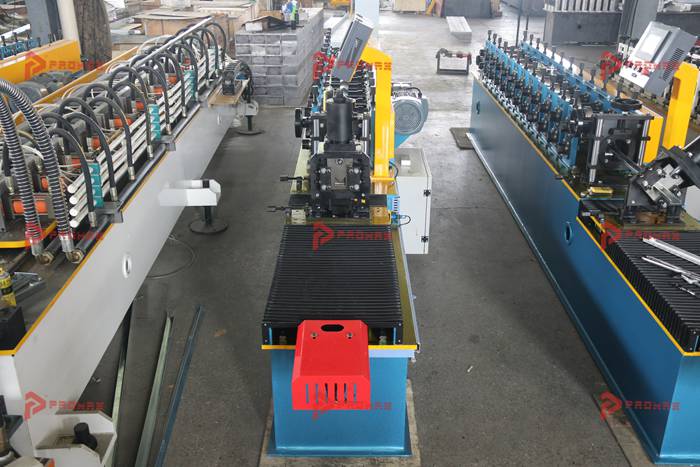

Precision Cold Roll Forming Technology

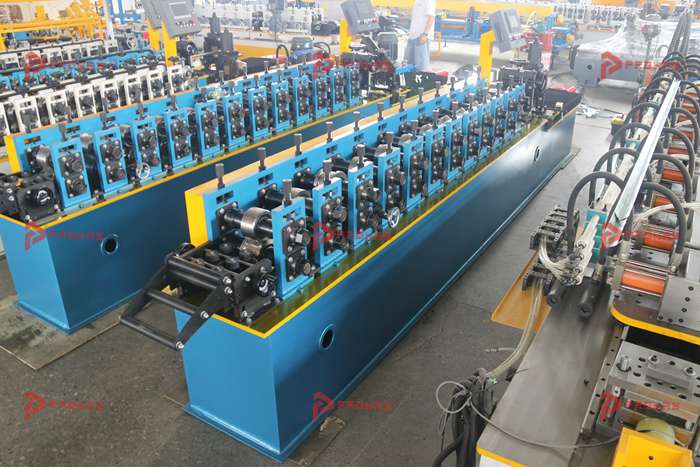

The PROMAX angle steel roll forming machine uses successive forming stations to shape steel strip into the specified angle profile.

Each roller station performs a controlled bending operation, gradually changing the material geometry until the required cross-section is achieved.

Dedicated forming rollers are designed according to the approved angle dimensions, bend radius, steel thickness and material properties.

Proper material guidance and roller alignment help maintain dimensional consistency during continuous production.

Finished angle profiles should be inspected against the approved drawings to confirm their geometry and surface condition.

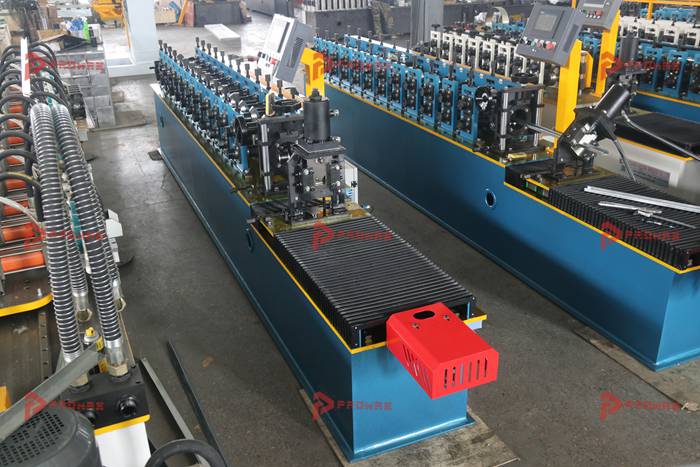

Custom Equal and Unequal Angle Profiles

Different manufacturing applications require different angle profile dimensions and configurations.

PROMAX can evaluate customized L angle roll forming machines for suitable equal-leg and unequal-leg angle profiles.

Important design parameters include leg width, material thickness, bend angle, internal bend radius and finished cutting length.

Special profile details, such as folded edges or additional bends, can be evaluated according to the customer's drawing.

Different angle profiles may require dedicated forming tooling or a separately approved adjustment arrangement.

Customers requiring multiple angle sizes should confirm the supported profile range and changeover method before ordering.

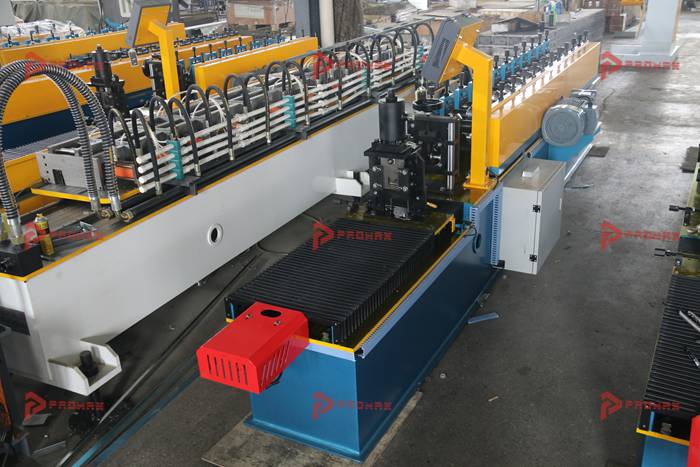

Galvanized and Cold-Rolled Steel Processing

Depending on the machine design, suitable galvanized steel and cold-rolled steel strip may be considered for angle profile production.

Material characteristics such as thickness, yield strength, surface coating and incoming coil width influence the forming process.

For coated materials, the forming arrangement should account for the required surface finish and material handling conditions.

PROMAX evaluates the customer's steel specifications before determining the appropriate forming rollers and machine configuration.

Material compatibility and the supported processing range are confirmed in the final technical proposal.

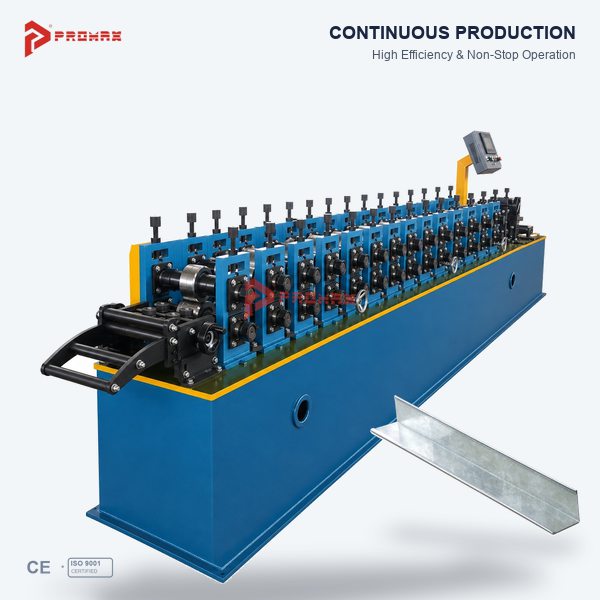

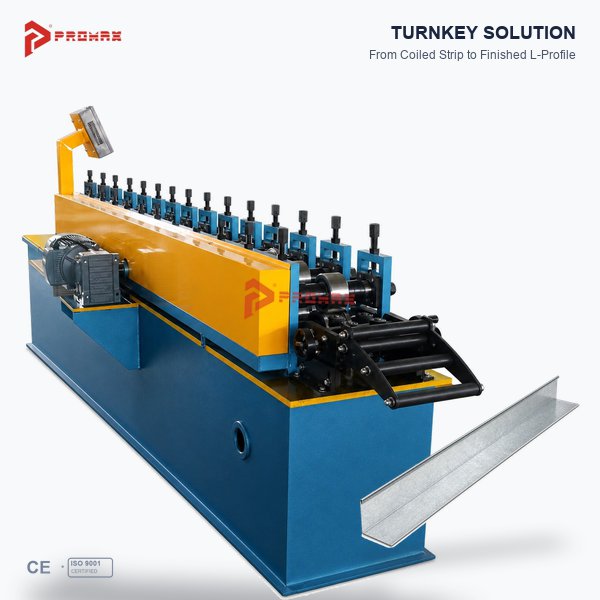

Continuous Angle Profile Manufacturing Process

A typical angle profile roll forming process includes several coordinated manufacturing stages.

1. Decoiling: Suitable steel coil is loaded onto a decoiler and supplied to the production line.

2. Material Guiding: The steel strip passes through a guiding section to support accurate alignment.

3. Roll Forming: Successive roller stations progressively bend the steel strip into the required angle profile.

4. Length Cutting: The formed profile is cut according to the specified finished length.

5. Collection and Inspection: Completed angle sections are collected, checked and prepared for packaging.

The final manufacturing process depends on the approved machine configuration and required profile specifications.

PLC Control and Automatic Cutting Options

PROMAX angle profile forming equipment can be configured with PLC-based production control and automatic length cutting functions.

Depending on the selected control arrangement, operators may enter the required cutting length and production quantity through the machine interface.

Automatic cutting supports repeated production of angle profiles for different manufacturing orders.

The cutting method is selected according to the finished angle geometry, material thickness and production requirements.

Control functions and electrical component specifications are confirmed during the technical evaluation stage.

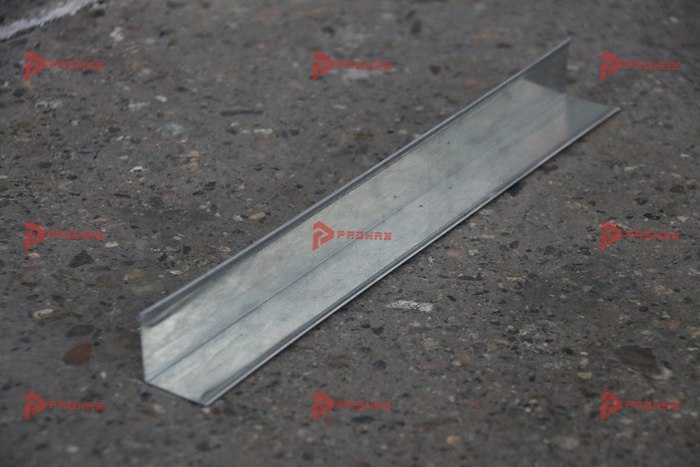

Applications of Cold-Formed Steel Angle Profiles

Cold-formed steel angle profiles can be used in a range of suitable metal fabrication and construction applications.

Potential applications include light metal framing, interior construction accessories, equipment components, industrial enclosures, reinforcement accessories and customized metal products.

The suitability of a particular angle section depends on its dimensions, steel grade, thickness and intended application.

Where angle profiles are used for load-bearing purposes, their design and material specifications must meet the applicable structural engineering requirements.

PROMAX can evaluate production equipment for customer-defined angle profiles used in different manufacturing markets.

Benefits of Angle Profile Roll Forming Equipment

A dedicated angle iron roll forming machine supports continuous manufacturing of approved angle-shaped steel profiles.

Progressive forming can help manufacturers maintain repeatable profile geometry when the equipment is properly configured and operated.

Automatic cutting options allow finished products to be manufactured according to specified lengths and production quantities.

Customized forming equipment also allows manufacturers to develop angle profiles suited to their product requirements.

Actual manufacturing performance depends on the machine configuration, steel properties, profile design and operating conditions.

How to Choose an Angle Iron Roll Forming Machine

Before purchasing an angle profile roll forming machine, customers should define the required finished profile and material specifications.

Important information includes the angle profile drawing, leg dimensions, bend angle, material thickness, steel grade, incoming coil width and finished cutting length.

Customers should also consider expected production capacity, factory space, electrical supply and material handling requirements.

If several profile sizes are required, the necessary tooling or adjustment arrangement should be confirmed during the equipment design stage.

PROMAX can review these requirements and prepare a customized machine proposal.

Why Choose PROMAX Roll Forming Equipment?

PROMAX provides customized roll forming equipment for metal profiles used in construction and industrial manufacturing applications.

Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.

We develop equipment proposals according to customer drawings, material specifications and production objectives.

Whether you are establishing a new angle profile manufacturing facility or expanding an existing metal fabrication business, PROMAX can evaluate a suitable forming solution.

Request an Angle Iron Roll Forming Machine Quotation

Looking for an angle iron roll forming machine for your steel angle profile manufacturing project?

Send PROMAX your required angle profile drawing, leg dimensions, material thickness, steel grade, incoming coil width, cutting length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment configuration proposal and quotation.

Contact PROMAX today to request an angle iron roll forming machine price.
