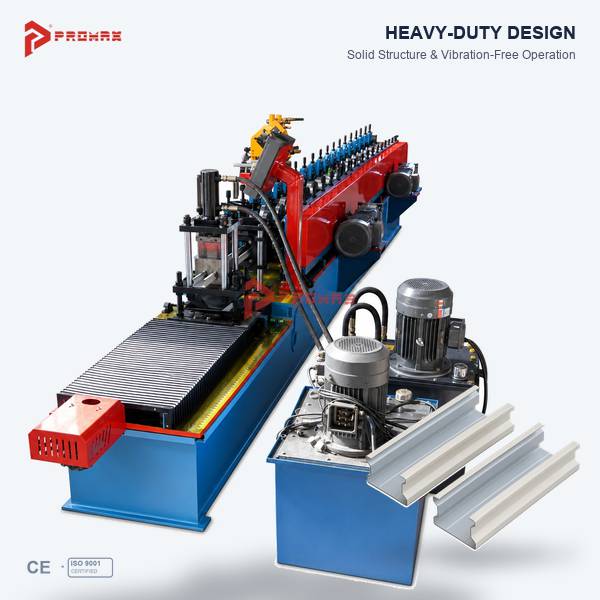

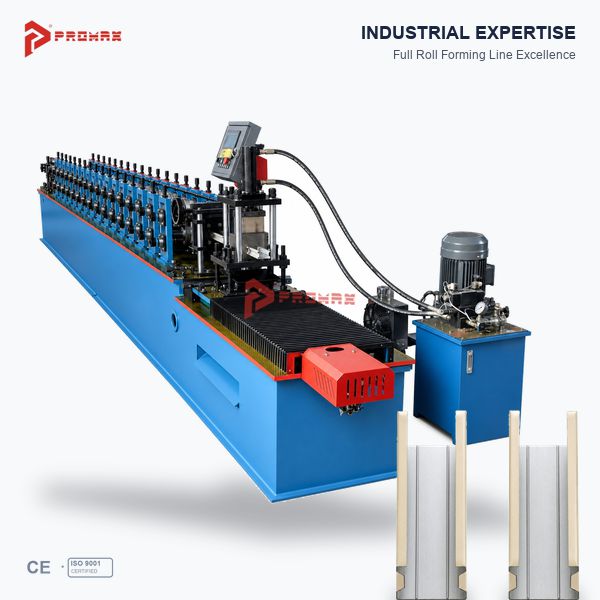

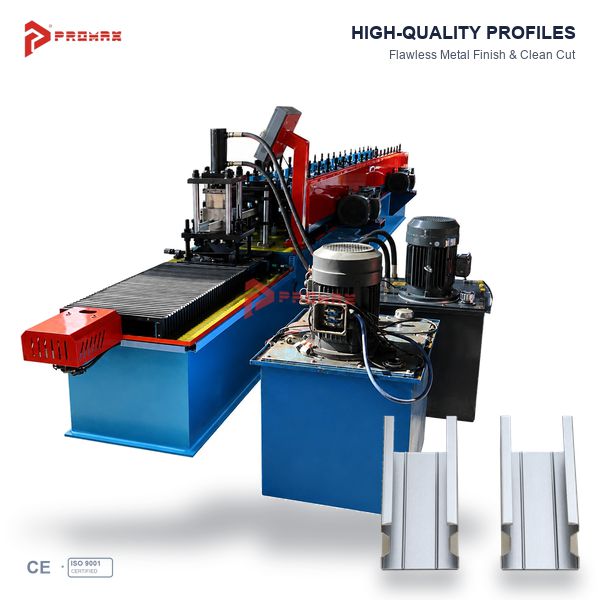

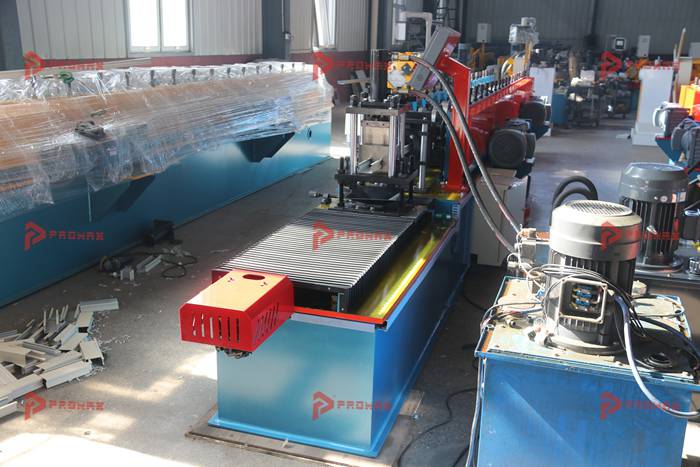

C Stud Roll Forming Machine – promax C

The promax C stud roll forming machine is designed to manufacture C-shaped steel profiles for metal framing applications. It serves building material manufacturers, steel processing companies, and distributors planning to establish their own production. Whether you are introducing a new stud range or expanding an existing workshop, the machine configuration should match your profile drawings, material specifications, and production requirements. Share your target products with promax to discuss a suitable technical proposal.

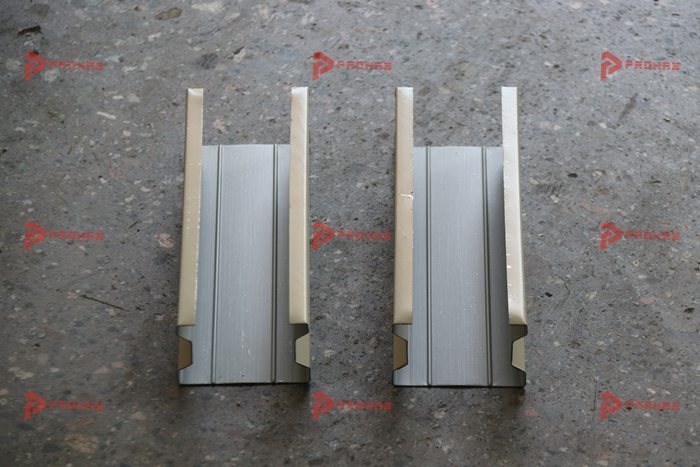

Manufacture C-Shaped Studs for Drywall Framing

C-shaped steel studs are used in drywall partition and wall lining systems, subject to the requirements of the finished assembly. Their dimensions must be compatible with the tracks and other framing components selected for the project. Before choosing equipment, define the web width, flange height, return lips, bend radii, and finished lengths. These details provide a practical starting point for evaluating tooling and preparing a production solution for your product range.

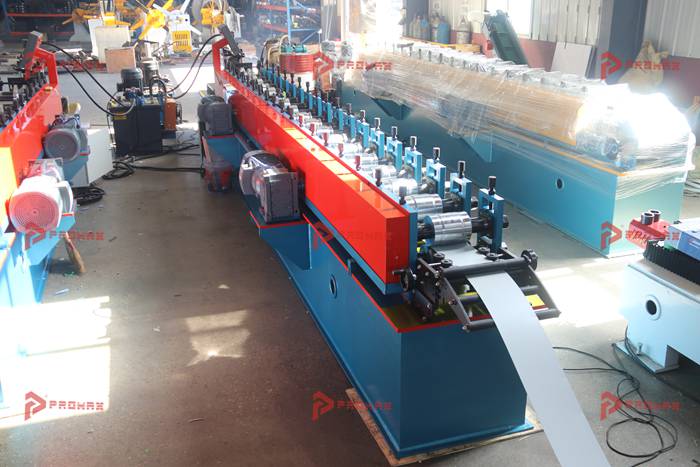

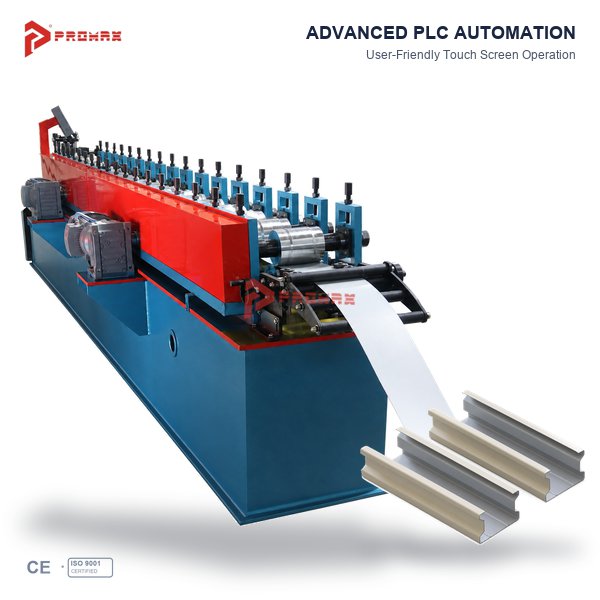

Progressive Cold Roll Forming of Steel Strip

The roll forming process shapes steel strip through successive roller stations. Each station gradually develops the cross-section until the required C profile is formed, without heating the strip for forming. Tooling design depends on the profile geometry, material thickness, and mechanical properties of the steel. If your production uses galvanized steel, include the coating specifications in your inquiry so that the material requirements can be considered during the technical assessment.

Specify the Functions Your Production Needs

A clear specification helps align the C stud roll forming machine with your manufacturing priorities. Provide drawings for each intended profile, together with dimensional tolerances, cutting lengths, and expected order quantities. Where service holes or other openings are required, specify their shape, size, and position. The feasibility of producing multiple dimensions on one configuration must be checked against your drawings. Any punching equipment, adjustment arrangements, and cutting functions should be confirmed in the technical proposal.

Plan the Line Around Your Workshop

Equipment selection should also consider available floor space, electrical supply, coil handling, and finished stud collection. Your expected production volumes and typical batch sizes help establish suitable operating requirements. When comparing quotations, use the same profile specifications, supply scope, and acceptance criteria. This gives purchasing and production teams a consistent basis for assessing the proposed equipment and understanding how it would fit into the workshop.

Request a Quote for the promax C

Looking for a C stud roll forming machine for your next manufacturing project? Send promax your dimensioned profile drawings, steel grade, material thickness, and required lengths. Include projected quantities and installation constraints to support the feasibility review. These details help define the proposed configuration and prepare a technical and commercial quotation. Request a solution based on the C-shaped studs your customers need and the production conditions at your facility.
