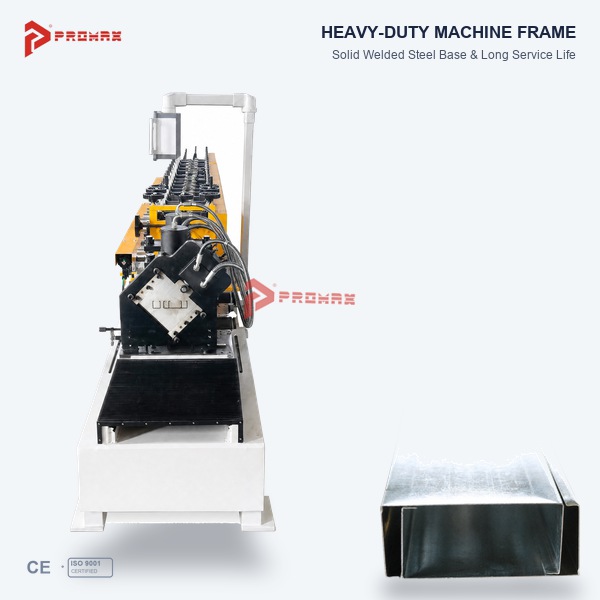

PROMAX Steel Stud and Track Roll Forming Machines feature automatic C/U changeover for manufacturing galvanized steel studs and tracks used in drywall partition systems.
Brand: PROMAX
Machine Type: Automatic C/U Changeover Roll Forming Machine
Material: Galvanized Steel
Key Features: Automatic C/U changeover, PLC-controlled adjustment, precision roll forming and automatic cutting.
Applications: Drywall partitions, interior steel framing and building material manufacturing.
Customization: C stud and U track dimensions, steel thickness, cutting length and equipment configuration.
Contact PROMAX with your stud and track drawings to request a customized machine quotation.
PROMAX steel stud and track roll forming machines provide an efficient manufacturing solution for producing galvanized steel C studs and U tracks used in drywall partition walls and interior metal framing systems. Equipped with an automatic C/U changeover system, this production line is designed to manufacture compatible stud and track profiles without requiring separate dedicated forming machines for each profile type.
The machine combines progressive cold roll forming technology, automated profile adjustment and PLC-based production control. Manufacturers can switch between supported C stud and U track configurations according to their production requirements, helping simplify profile changeovers and improve production flexibility.
PROMAX develops customized steel framing equipment for drywall profile factories, construction material manufacturers and metal framing suppliers. Machine configurations are designed according to customer drawings, galvanized steel specifications and expected production requirements.
The automatic C/U changeover system is a key feature of this steel stud and track roll forming machine. It enables manufacturers to switch between compatible C-shaped studs and U-shaped tracks through an automated adjustment arrangement.
C studs are typically used as vertical framing members in drywall partition systems, while U tracks are used as horizontal guides at the top and bottom of the partition structure.
These profiles work together to form a complete light gauge steel framing system.
Depending on the approved equipment configuration, operators can select the required profile type through the PLC control interface. The machine then adjusts the relevant forming components according to the selected production program.
This reduces repetitive manual adjustment compared with conventional machines that require extensive tooling repositioning.
The available profile dimensions and changeover functions are confirmed in the final technical specifications.
PROMAX automatic stud and track roll forming machines are designed for manufacturers producing both C stud and U track profiles for compatible drywall framing systems.
Using one configurable production line allows manufacturers to organize different production orders according to customer demand.
Instead of relying on separate machines for every compatible C and U profile, the automatic changeover system supports production flexibility within its approved adjustment range.
This configuration is suitable for drywall profile manufacturers supplying building material distributors, contractors and construction projects.

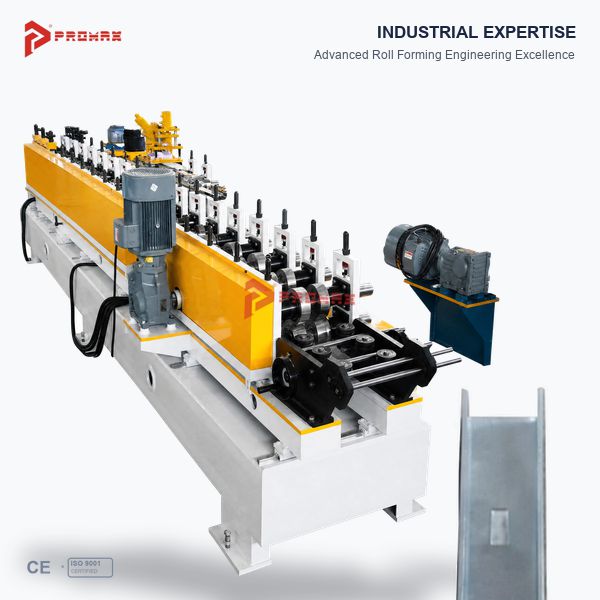

The PROMAX steel stud and track machine uses progressive cold roll forming technology to transform galvanized steel strip into the required framing profiles.

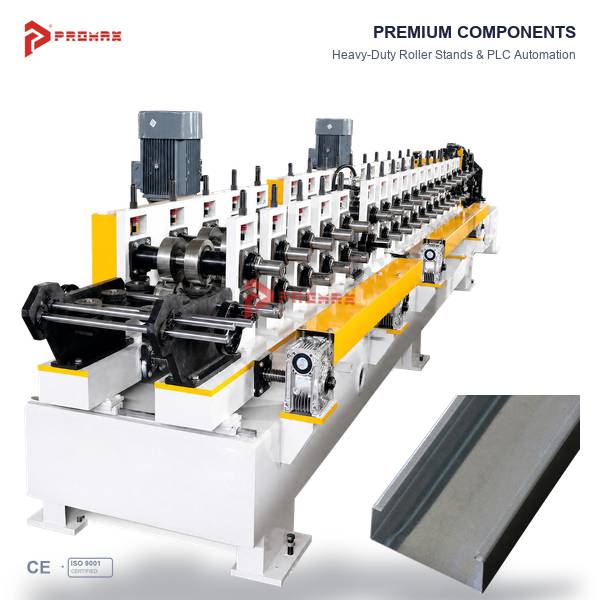

During production, the steel strip passes through successive forming roller stations. Each station performs a controlled bending operation until the required C-shaped or U-shaped cross-section is achieved.
The forming roller design is developed according to the approved profile dimensions, steel thickness and material properties.
Correct material guidance and roller alignment help maintain consistent dimensions during continuous production.
Finished profiles are inspected against the approved drawings to confirm their dimensions and quality.
The automatic changeover configuration integrates production control with supported profile adjustment functions.
Depending on the selected control system, operators can choose compatible C stud or U track settings through the PLC interface.
The automated adjustment mechanism positions the relevant forming components according to the selected profile program.
PLC-based production control can also coordinate supported production parameters, including cutting length and production quantity.
Specific control functions, adjustment mechanisms and component brands are confirmed in the final equipment proposal.
Different construction markets use different steel stud and track dimensions for drywall partition systems.
PROMAX can evaluate customized drywall stud and track machines according to customer-supplied profile drawings.
Important customization parameters include C stud web width, U track width, flange dimensions, edge geometry, galvanized steel thickness and required cutting length.
Compatible profile dimensions can be incorporated into an automatic changeover configuration when supported by the machine design.
Customers should provide drawings of both C studs and U tracks so the technical team can evaluate the required forming and adjustment range.
Additional profile details, such as service holes or specialized edges, can be evaluated according to customer requirements.
Galvanized steel is widely used for manufacturing metal studs and tracks in drywall framing systems.
The zinc coating provides corrosion protection suitable for specified construction environments.
The galvanized steel framing machine is configured according to the required steel grade, material thickness, incoming coil width and coating characteristics.
Material properties influence forming roller design, machine adjustment and production conditions.
PROMAX evaluates customer material specifications before confirming the final equipment configuration.
A typical automatic C/U stud and track production process includes the following manufacturing stages:
1. Decoiling: Galvanized steel coil is loaded onto the decoiler and supplied to the production line.
2. Profile Selection: The operator selects the required supported C stud or U track profile through the control interface.
3. Automatic Changeover: The machine adjusts the relevant forming settings according to the selected profile program.
4. Material Guiding: The steel strip passes through the guiding section to maintain proper alignment.
5. Roll Forming: Dedicated rollers progressively shape the steel strip into the required C or U profile.
6. Automatic Cutting: The finished profile is cut to the specified production length.
7. Collection and Inspection: Completed profiles are collected, checked and prepared for packaging.
The final production sequence and automation functions depend on the approved machine configuration.
PROMAX steel stud and track roll forming machines can be equipped with automatic length cutting and production quantity control.
Operators can manage supported production settings through the machine control interface.
Automatic cutting supports repeated manufacturing of C studs and U tracks in specified lengths.
The cutting system is selected according to the supported profile geometry, steel thickness and production requirements.
Actual production speed and cutting performance depend on the machine configuration and material specifications.
Steel studs and tracks are essential components of many interior drywall partition systems.
C studs are commonly used as vertical framing members, while U tracks provide horizontal positioning and support.
These galvanized steel profiles are supplied to drywall contractors, building material distributors and metal framing system manufacturers.
Typical application markets include residential buildings, commercial offices, hotels, shopping centers, hospitals, schools and renovation projects.
The required profile dimensions and installation methods depend on the intended drywall system and applicable project specifications.
Automatic changeover technology provides practical advantages for manufacturers producing compatible C studs and U tracks.
Reduced Manual Adjustment: Automated positioning reduces repetitive manual adjustment when switching between supported profiles.
Flexible Production: One configurable line supports manufacturing of compatible C and U framing profiles.
Consistent Profile Geometry: Dedicated forming rollers help maintain repeatable profile dimensions.
Production Control: PLC-based operation supports management of approved profile programs and production settings.
Customized Solutions: Machine configurations can be developed according to customer drawings and material requirements.
Actual changeover performance and production efficiency depend on the approved equipment specifications.
PROMAX specializes in roll forming equipment for drywall framing profiles, metal studs, tracks, ceiling channels and related light gauge steel construction products.
Our team supports customers with profile evaluation, equipment design, automatic changeover configuration, machine manufacturing, factory testing and technical assistance.
We develop customized production solutions according to customer profile drawings, galvanized steel specifications and manufacturing objectives.
Whether you are establishing a new drywall profile factory or upgrading an existing metal framing production facility, PROMAX can evaluate a suitable automatic C/U manufacturing solution.
Looking for reliable steel stud and track roll forming machines with automatic C/U changeover?
Send PROMAX your C stud and U track profile drawings, required dimensions, galvanized steel thickness, material grade, incoming coil width, cutting length and expected production capacity.
Our technical team can review your requirements and prepare a customized equipment proposal and quotation.
Contact PROMAX today to request your automatic steel stud and track roll forming machine price.
