Featuring high automation;
Superior precision;
Excellent efficiency;
User-friendly operation.
WhatsApp: 0086 18920635761
E-mail: lisa@hx-machinery.com
In the competitive landscape of modern construction material manufacturing, efficiency, precision, and reliability are the cornerstones of success. For producers of drywall studs and light-gauge steel framing, the capability to produce consistent, high-quality C-shaped steel studs is fundamental. The Stud Making Machine For Making C Steel Stud stands as a dedicated, high-performance solution engineered to meet this essential demand. This fully integrated roll forming line is specifically designed for the continuous, automated production of standard C-studs, which serve as the primary vertical components in partition walls, exterior cladding systems, and various structural frameworks. By combining robust mechanical engineering with advanced control technology, this machine delivers the output and accuracy required to thrive in today's fast-paced building supply market.
The operational excellence of the Stud Making Machine For Making C Steel Stud is demonstrated through its seamless, sequential production process.

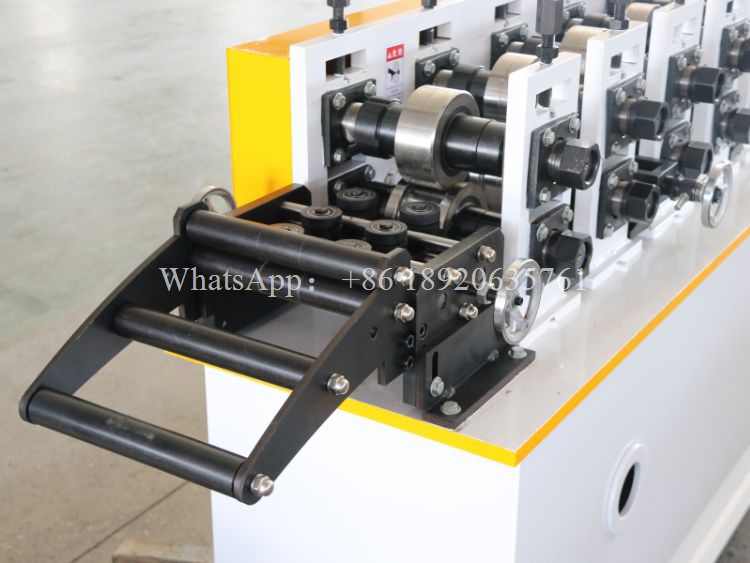

The line commences with a heavy-duty decoiler, designed to handle large coils of galvanized or cold-rolled steel with stability, ensuring a consistent material feed. The steel strip then progresses through a precision-guided feeding and leveling platform, which is critical for removing coil set and ensuring the material is perfectly flat before entering the forming section.

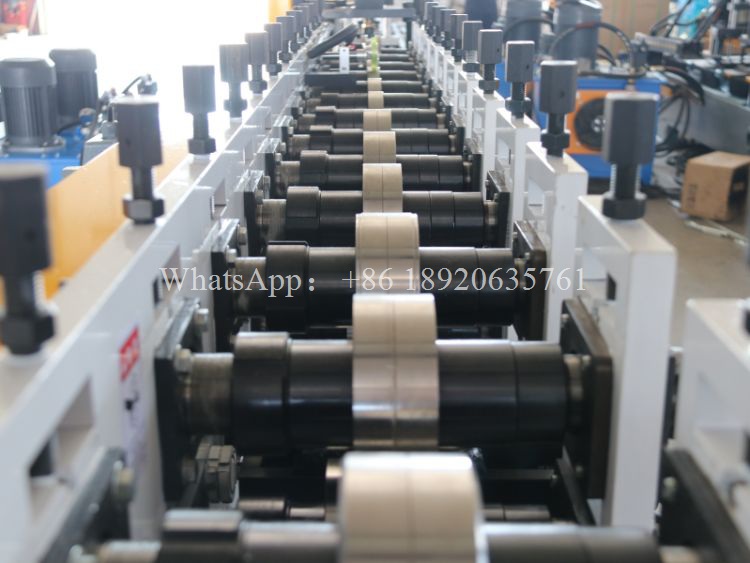

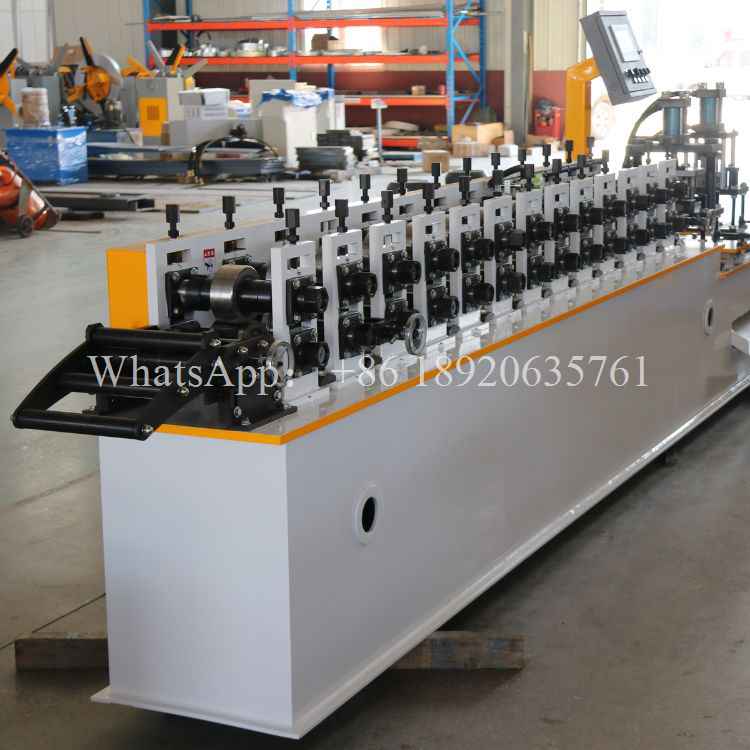

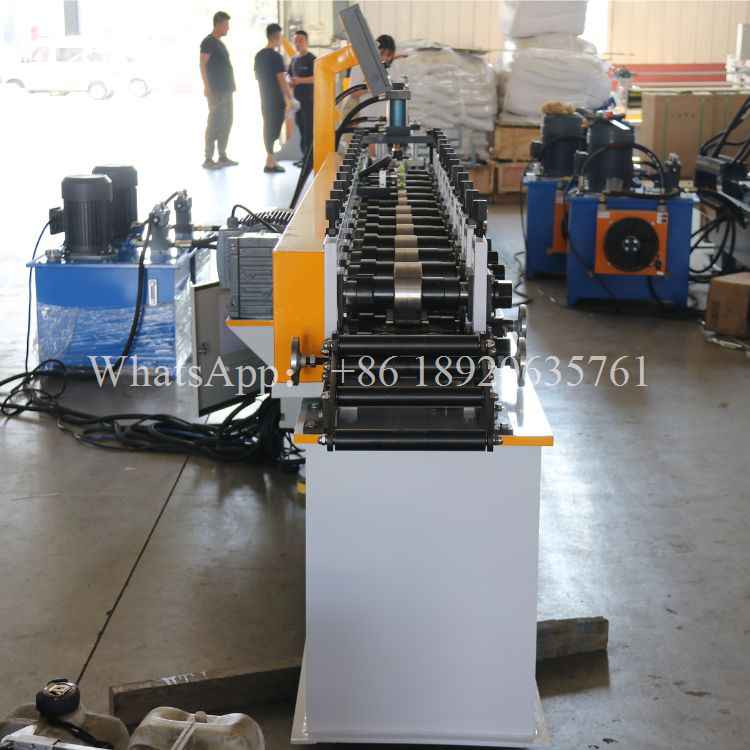

The heart of the Stud Making Machine For Making C Steel Stud is its precision-engineered roll forming station. Here, a progressive series of computer-designed, hardened alloy roller dies gradually and accurately bend the flat strip into the precise C-profile geometry through a cold-forming process that enhances the material's strength.

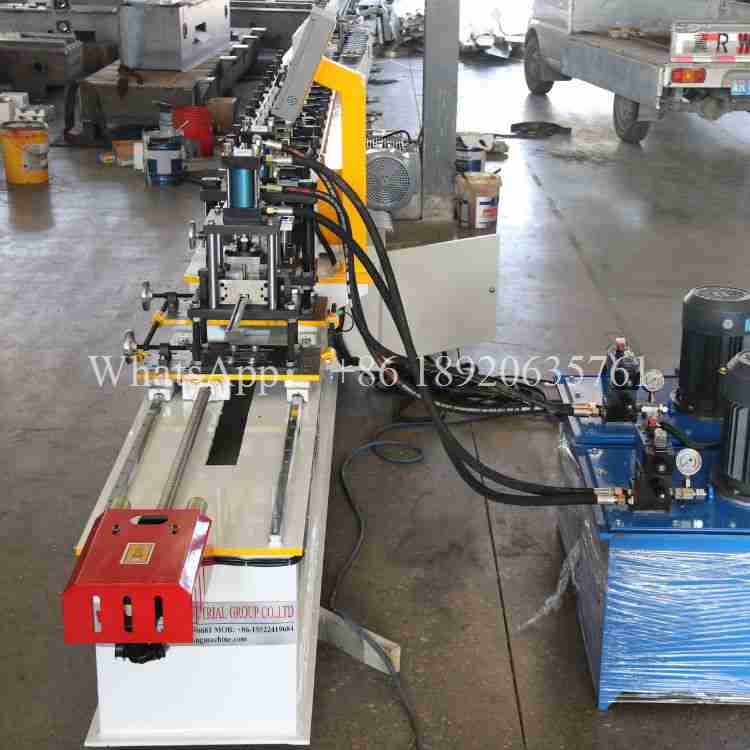

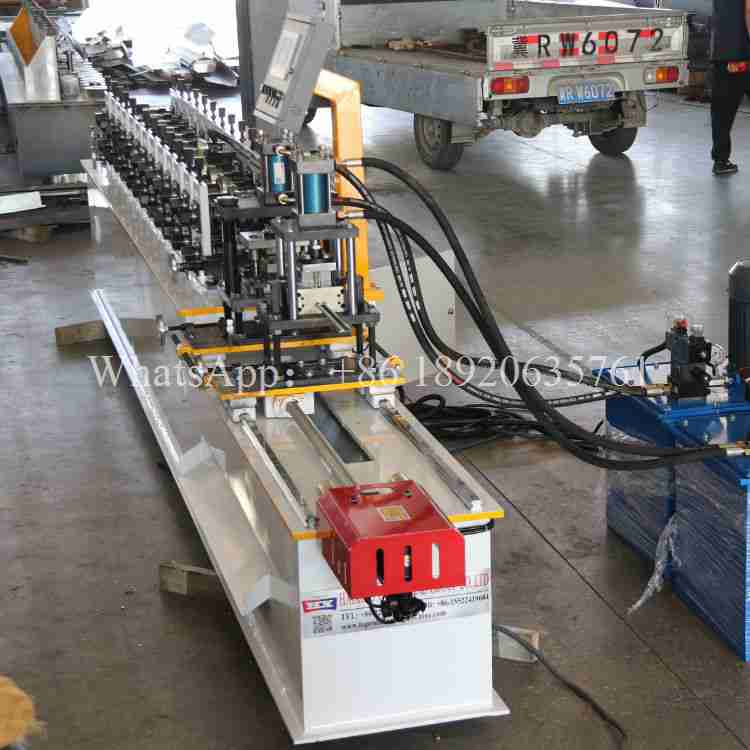

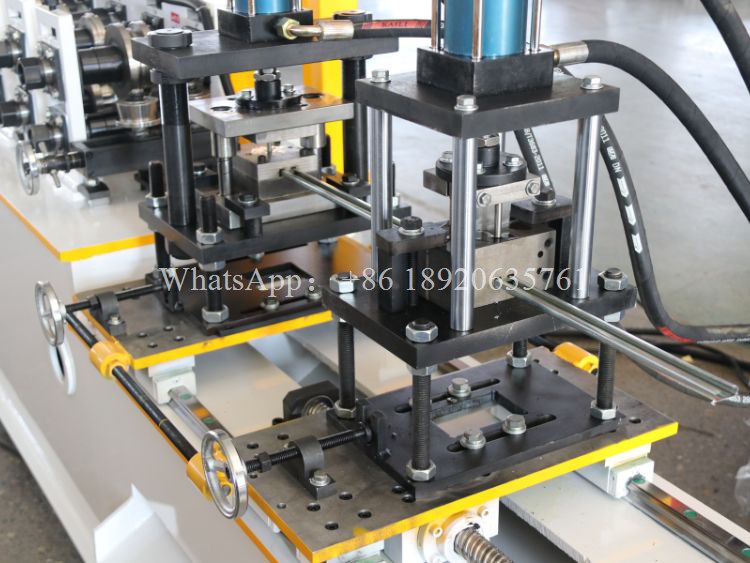

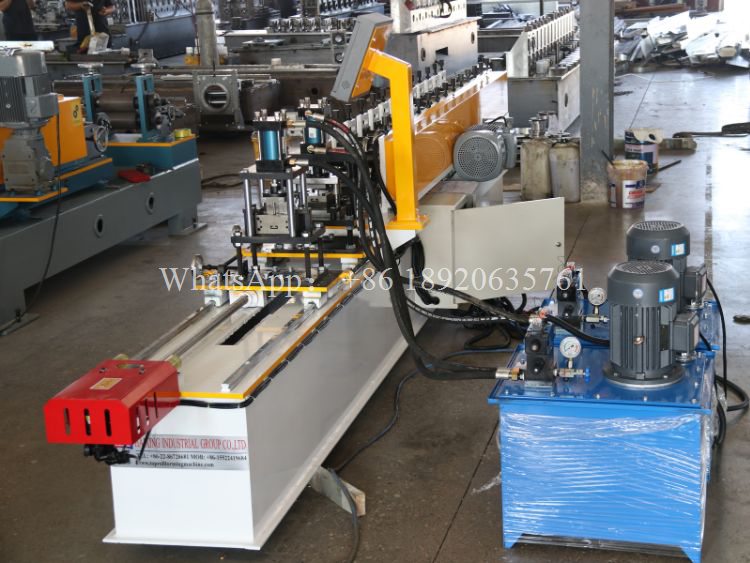

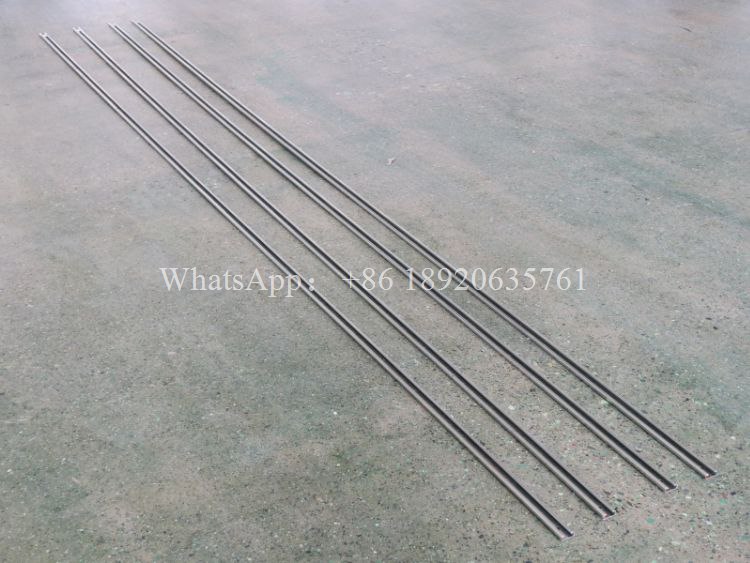

Following the forming stage, a high-accuracy, servo-driven flying cut system or hydraulic shear executes perfectly square, clean cuts to exact, pre-programmed lengths. Finally, an automated output conveyor and stacking rack organize the finished C steel studs, completing a streamlined, end-to-end manufacturing cycle that maximizes productivity and minimizes manual handling.
| Product Name | Stud Making Machine For Making C Steel Stud |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Beyond its mechanical prowess, the Stud Making Machine For Making C Steel Stud is designed for operational ease and supported by a commitment to continuous uptime. The entire production process is managed by a centralized Programmable Logic Controller (PLC) system, accessible via a user-friendly, multi-language touchscreen Human-Machine Interface (HMI). A key feature of our support ecosystem is the integrated remote technical service capability. Our engineering team can establish secure, live video connections to provide immediate operational guidance, perform real-time diagnostics, and assist with parameter optimization from anywhere in the world. This proactive remote quality assurance program is instrumental in minimizing potential downtime and ensuring consistent, high-quality output for every production run.
Understanding the diverse requirements of global markets, the Stud Making Machine For Making C Steel Stud is built with inherent flexibility. Critical operational specifications, including the material inlet width (to define the stud flange size) and the roll forming thickness capacity, can be customized to meet specific client needs and regional standards. The electrical system, with its operating voltage and frequency, is configurable to suit any local power infrastructure. Furthermore, the language options on the touchscreen control panel can be tailored to the operator's preference, simplifying training and daily operation while reducing the potential for errors.
In conclusion, the Stud Making Machine For Making C Steel Stud is more than a piece of industrial equipment; it is a comprehensive production solution that empowers manufacturers to build their business on a foundation of quality and efficiency. By automating the precise forming, cutting, and stacking of C steel studs, this machine ensures exceptional dimensional consistency, reduces labor dependency, and significantly boosts production capacity. Investing in this Stud Making Machine For Making C Steel Stud is a strategic decision to secure a reliable, high-output source for the fundamental building blocks required in modern light gauge steel construction, enabling manufacturers to meet project demands confidently and strengthen their position in the supply chain.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Stud Making Machine For Making C Steel Stud. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Stud Making Machine For Making C Steel Stud can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
