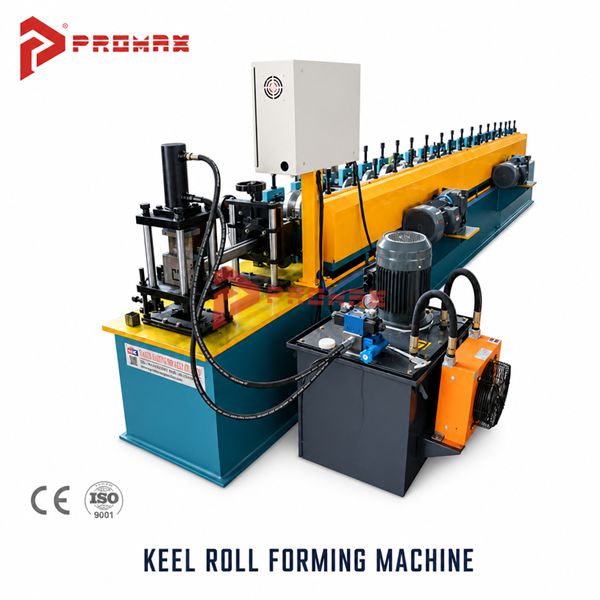

METAL STUD MACHINE ROLL FORMING LINE

Metal Stud Machine for C-Shaped Steel Studs – PROMAX

The metal stud machine from PROMAX is an industrial roll forming solution designed for manufacturers producing C-shaped steel studs for drywall systems, light gauge steel framing and interior metal construction. The machine continuously forms galvanized steel coil into accurately shaped metal studs, providing a stable production process for professional manufacturers and construction material suppliers.

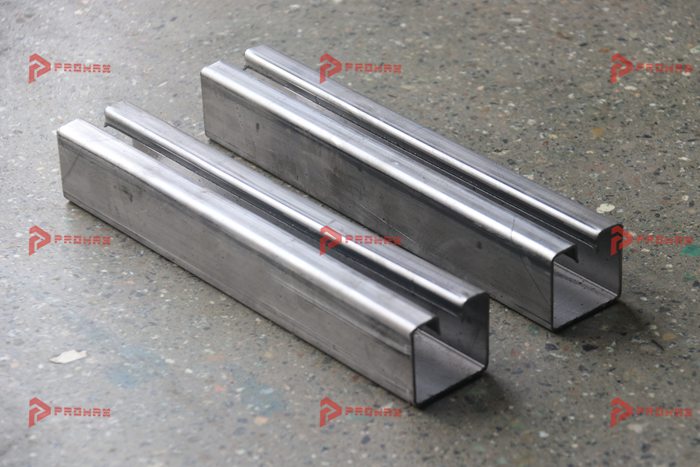

C-shaped metal studs are widely used as vertical framing members in drywall partitions, suspended ceiling systems, interior walls and light steel structures. Compared with conventional manual production processes, an automatic roll forming line allows manufacturers to produce consistent profiles while improving production efficiency and reducing repetitive manual operations. PROMAX designs the equipment according to the required stud dimensions, material thickness and production requirements.

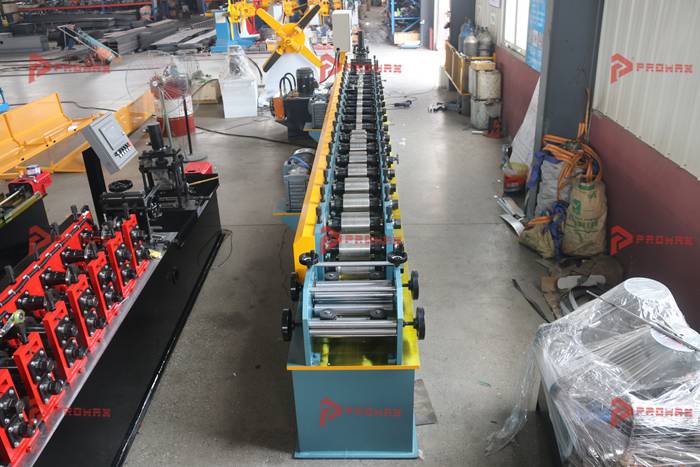

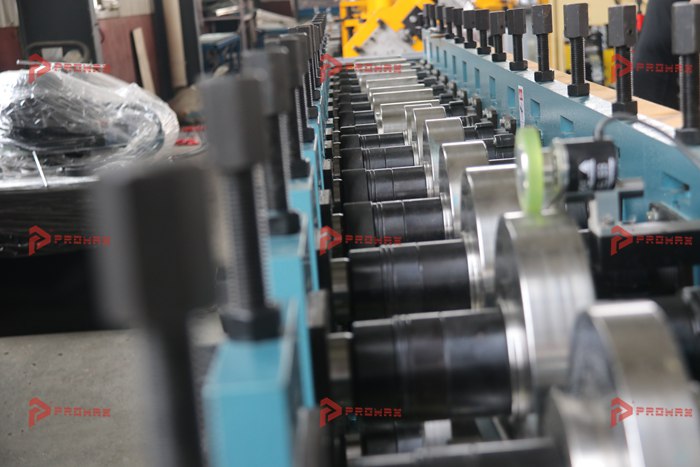

The metal stud machine starts with steel coil feeding through a decoiler and guiding system. The strip then passes through multiple precision roll forming stations, where each station gradually changes the shape of the material until the required C stud profile is achieved. This progressive forming process helps maintain dimensional consistency and provides a clean, uniform finished profile.

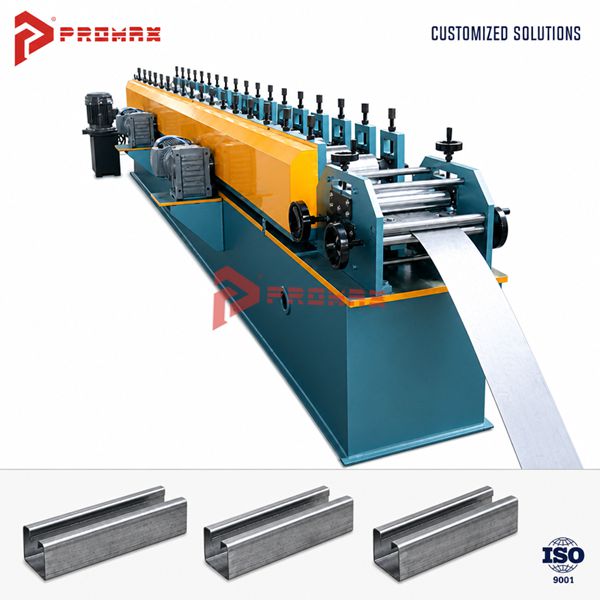

For different metal framing applications, the machine can be customized for various C stud sizes and steel thicknesses. Customers can provide their profile drawings, material specifications and production requirements, allowing PROMAX engineers to develop a suitable roll forming configuration. The machine can also be equipped with automatic punching and cutting systems according to the required finished product.

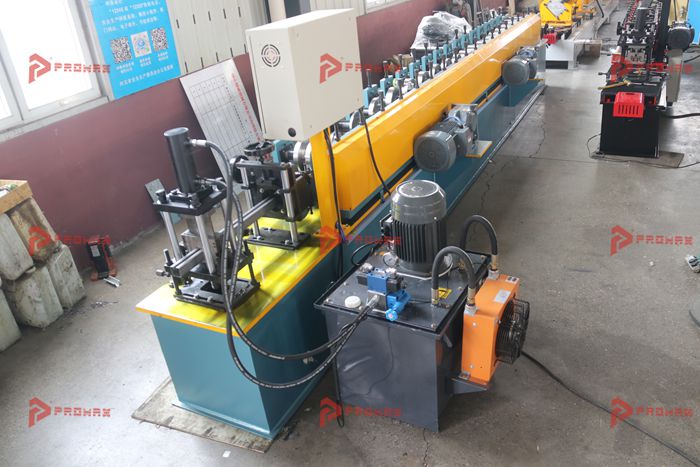

The punching system can create holes and openings at programmed positions along the steel stud. After the forming and punching processes are completed, the automatic cutting unit cuts the finished profiles to the required length. This integrated production process reduces secondary processing and makes the finished studs easier to stack, package and transport.

The metal stud machine is controlled by a PLC system that allows operators to manage key production parameters through the control panel. Production length, cutting quantity and other operating functions can be configured according to the manufacturing requirements. The automated control system helps maintain stable operation and simplifies daily production management.

For manufacturers of drywall framing systems, investing in an automatic metal stud machine can provide greater flexibility when responding to different customer orders. One production line can be configured for specific C stud profiles and can be integrated with punching, cutting and other downstream equipment to create a complete metal framing production solution.

PROMAX provides customized roll forming equipment for metal stud manufacturers, drywall system suppliers, steel framing companies and construction material producers. The machine configuration can be developed according to profile geometry, steel grade, material thickness, production speed and required automation level.

With a professional approach to cold roll forming technology, PROMAX focuses on providing practical and reliable equipment for international manufacturers. The metal stud machine is suitable for companies looking to establish or expand their C stud production capacity and manufacture consistent steel framing profiles for the construction market.

Contact PROMAX with your C stud drawing, material thickness and production requirements. Our engineering team can evaluate the profile and recommend a customized roll forming machine configuration for your project.
