C Stud Making Machine for Drywall Framing

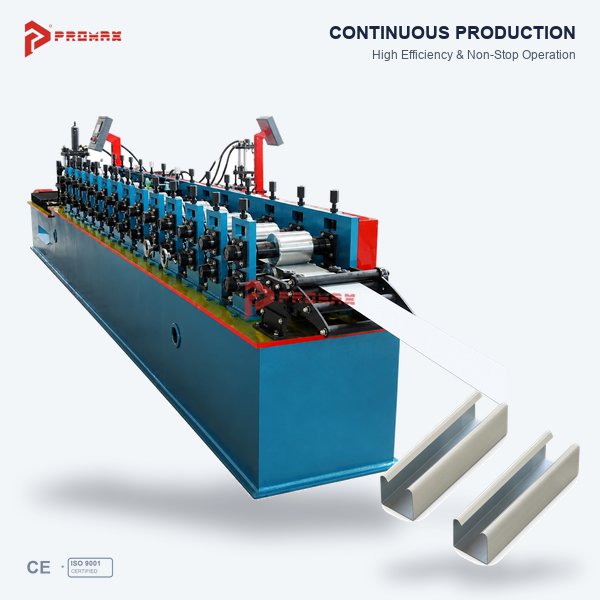

PROMAX C Stud Making Machine for Drywall Profile Manufacturing

The PROMAX C Stud Making Machine is designed for manufacturing galvanized steel C-shaped studs used in drywall partition walls, interior metal framing and compatible light gauge steel construction systems. Through progressive cold roll forming technology, the equipment transforms flat galvanized steel strip into finished C stud profiles according to customer-specified dimensions and approved drawings.

C studs are important framing components in modern drywall construction. They are commonly installed vertically between matching U tracks to create the supporting framework for gypsum boards and other compatible wall panels. Consistent stud dimensions help manufacturers supply profiles suitable for the intended framing system.

PROMAX provides customized C stud manufacturing equipment for drywall profile factories, metal building material suppliers and construction product manufacturers. Each proposed machine configuration is evaluated according to the customer's required profile geometry, steel specifications and production objectives.

Dedicated Manufacturing Equipment for C-Shaped Metal Studs

A C stud making machine is specialized roll forming equipment used to manufacture C-shaped framing profiles from suitable galvanized steel coils.

Unlike general-purpose sheet metal bending equipment, a dedicated C stud production machine uses forming rollers designed around the required profile cross-section.

The rollers progressively develop the profile web, flanges and return lips as the steel strip moves through the machine.

The finished studs can be produced in specified lengths for drywall partition manufacturing and compatible interior framing applications.

Machine selection begins with the approved profile drawing and the required material specifications.

Precision Cold Roll Forming Technology

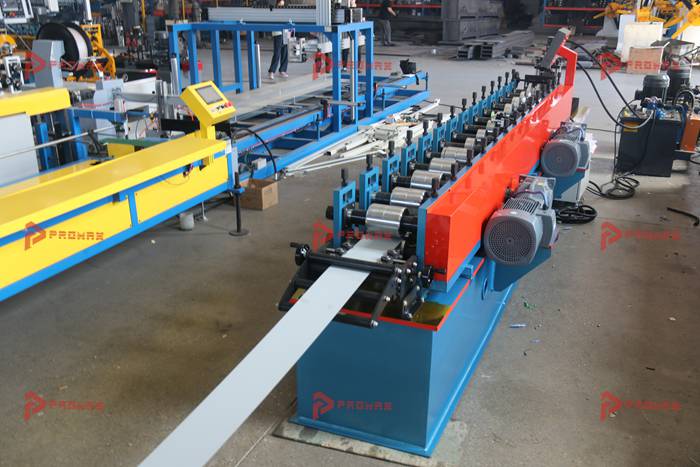

The PROMAX metal stud manufacturing machine uses progressive cold roll forming to shape steel strip into the required C stud geometry.

During production, the strip passes through successive forming stations. Each station performs part of the bending operation until the final profile cross-section is achieved.

Dedicated forming rollers, suitable material guidance and correct machine alignment help maintain consistent profile dimensions.

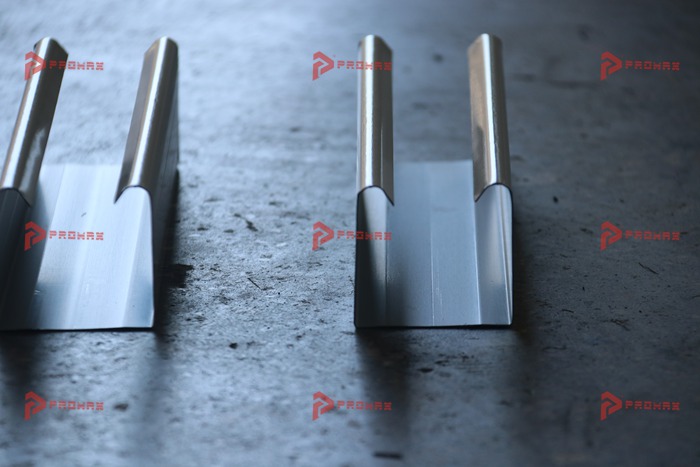

Important finished profile features include web width, flange height, return lip geometry and overall straightness.

The forming arrangement is developed according to the selected steel thickness, material strength and approved C stud dimensions.

Customized C Stud Sizes and Profile Designs

Different countries and construction markets use different metal stud dimensions and drywall framing specifications.

PROMAX can evaluate customized C stud forming solutions based on customer-supplied drawings, including the required web width, flange height, return lip dimensions and steel thickness.

Manufacturers supplying several markets may require different profile sizes to match local drywall framing systems.

When multiple C stud dimensions are required, the technical team can evaluate suitable adjustment arrangements or additional tooling.

The final range of supported profile sizes depends on the approved equipment design.

Galvanized Steel Coil Processing

The C stud making machine is primarily intended for processing suitable galvanized steel coils used in drywall framing applications.

Galvanized steel is commonly selected for metal stud manufacturing because it offers suitable formability and a protective zinc coating for many interior construction applications.

Important material specifications include sheet thickness, yield strength, incoming strip width and surface coating characteristics.

These parameters influence the forming roller design, material feeding arrangement and overall equipment configuration.

PROMAX reviews the required steel specifications before developing the proposed manufacturing solution.

Continuous C Stud Production Process

A typical C stud manufacturing process begins with loading galvanized steel coil material onto a suitable decoiler.

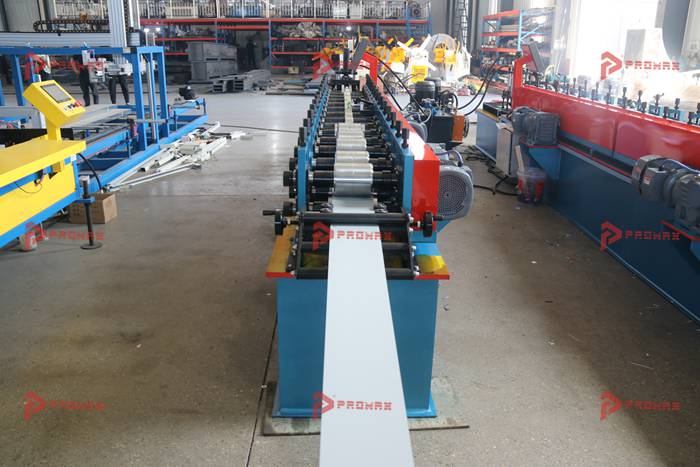

The steel strip passes through a guiding section before entering the roll forming stations.

Successive rollers gradually shape the strip into the required C-shaped profile.

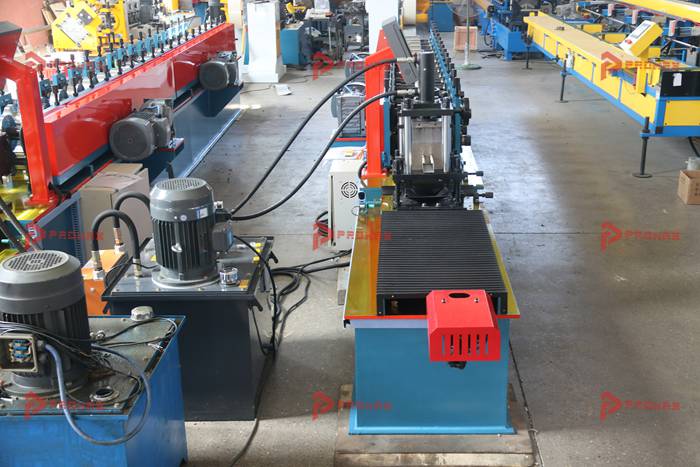

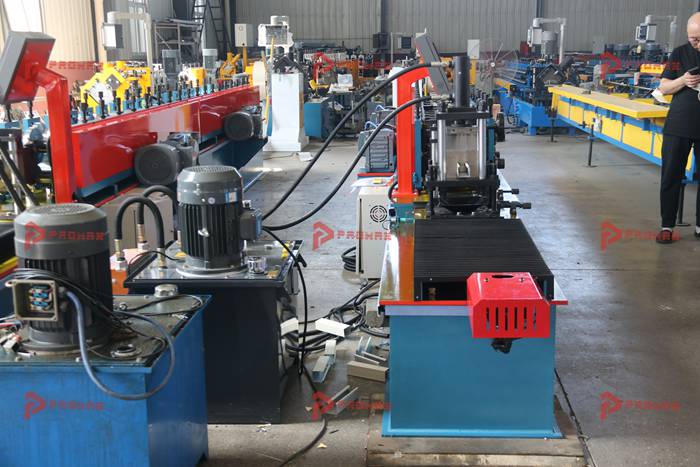

After forming, a compatible cutting system produces finished studs according to the specified length.

The completed profiles are collected, inspected and prepared for stacking, packaging or transportation.

Additional production functions can be evaluated according to the customer's manufacturing requirements.

PLC Control and Automatic Length Cutting

PROMAX C stud manufacturing equipment can be configured with PLC-based control systems and automatic length cutting options.

Depending on the approved machine design, operators may enter the required profile length and production quantity through a control interface.

Automatic cutting allows manufacturers to produce C studs in specified lengths for different customer orders and construction projects.

The cutting system is selected according to the profile geometry, material thickness and production arrangement.

Actual control functions, electrical component brands and cutting methods are confirmed in the final technical proposal.

Applications in Drywall Partition Systems

C-shaped galvanized steel studs are widely used in compatible drywall partition and interior metal framing systems.

Typical applications include residential interior walls, commercial office partitions, hotel renovation projects, shopping centers and prefabricated interior wall assemblies.

In a typical drywall framing arrangement, C studs are installed with matching U tracks to form the supporting framework for wall panels.

The required stud dimensions, material thickness and installation spacing depend on the selected framing system and construction project specifications.

Manufacturers should confirm compatibility with the intended tracks, gypsum boards, fasteners and other installation accessories.

Manufacturing Benefits for Drywall Profile Factories

A dedicated drywall stud making machine allows manufacturers to produce C-shaped metal profiles according to their approved product specifications.

Continuous roll forming supports repeated production of the same profile when the equipment is correctly configured for the selected material and geometry.

Manufacturers can organize production according to customer orders, required profile lengths and local construction market demand.

Customized equipment also supports the development of C stud products intended for specific drywall framing systems.

Actual production performance depends on the equipment design, material properties, profile dimensions and operating conditions.

Machine Configuration and Customization Options

PROMAX develops C stud manufacturing equipment according to the customer's required finished profile and production objectives.

Available engineering options can include dedicated C-profile forming rollers, suitable profile adjustment arrangements, PLC control, automatic cutting and compatible coil handling equipment.

Optional punching functions or other special processing requirements can be evaluated separately when specified by the customer.

Different profile dimensions or special manufacturing functions may require additional tooling or equipment adjustments.

The final machine configuration is determined according to the approved technical specifications.

Quality Inspection for Finished C Studs

Dimensional consistency is important for C studs used in drywall construction systems.

Recommended inspection items include web width, flange height, return lip dimensions, finished length, straightness and visible surface condition.

Sample profiles should be compared with the approved drawings before regular production.

Consistent inspection procedures help manufacturers identify dimensional variations and maintain product quality.

How to Select a C Stud Making Machine

Before purchasing a C stud manufacturing machine, customers should confirm the required finished profile and production conditions.

Important information includes the C stud cross-sectional drawing, steel thickness, incoming coil width, required finished length and expected production capacity.

Customers should also consider factory space, electrical supply, coil handling requirements and finished product collection arrangements.

PROMAX can review these specifications and prepare a suitable equipment proposal.

Why Choose PROMAX?

PROMAX specializes in roll forming machinery for drywall profiles, metal studs, tracks and light gauge steel framing products.

We provide customized manufacturing solutions based on customer profile drawings, material specifications and production objectives.

Our services cover profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.

Whether you are establishing a new drywall profile factory or expanding an existing metal framing production business, PROMAX can evaluate a suitable C stud manufacturing solution.

Request a PROMAX C Stud Making Machine Quotation

Looking for a reliable C stud making machine for your drywall metal profile manufacturing business?

Send PROMAX your C stud drawing, required dimensions, galvanized steel thickness, incoming coil width, finished profile length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment proposal and quotation.

Contact PROMAX today to discuss your C stud manufacturing project.
