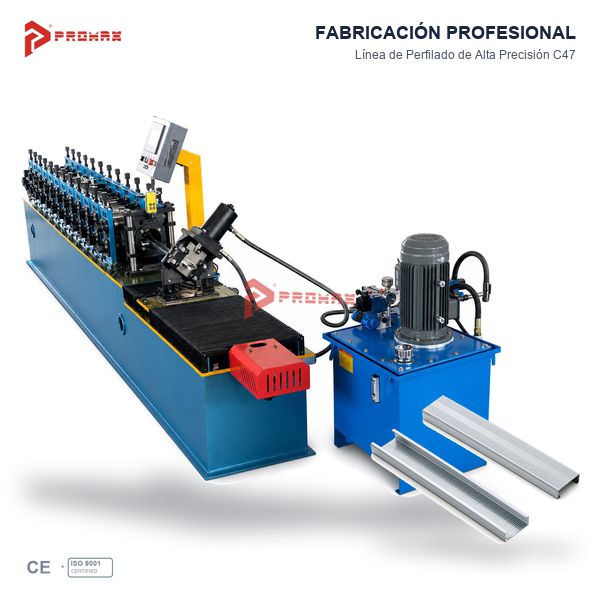

PROMAX C47 Ceiling Channel Roll Forming Machine

PROMAX C47 Ceiling Channel Making Machine for Metal Ceiling Profiles

The PROMAX C47 ceiling channel making machine is designed for manufacturing galvanized steel C47 ceiling profiles used in suspended ceiling framing and interior construction systems. By using progressive cold roll forming technology, the equipment converts suitable steel coils into accurately formed ceiling channels according to the required profile dimensions.

Metal ceiling channels are essential components in many modern interior construction projects. They provide framing support for suspended ceiling assemblies and help create organized ceiling structures when used with compatible accessories and installation systems.

PROMAX supplies customized C47 ceiling channel manufacturing equipment for building material factories, metal profile manufacturers and drywall framing suppliers. Depending on the approved configuration, the production line may include a decoiler, guiding system, forming rollers, PLC control, automatic length cutting and finished profile collection.

What Is a C47 Ceiling Channel Making Machine?

A C47 ceiling channel making machine is specialized cold roll forming equipment developed for producing metal ceiling channels with a specified C47 cross-sectional design.

The machine uses a series of forming roller stations to gradually bend flat galvanized steel strip into the required ceiling channel shape.

Each roller station performs part of the forming process until the final profile geometry is achieved. The finished channel can then be cut to the required length and prepared for inspection and packaging.

The exact channel dimensions, material thickness and edge details are determined by the approved profile drawing.

Applications of C47 Metal Ceiling Channels

C47 ceiling profiles are associated with suspended ceiling framing systems and related interior construction applications.

Depending on the selected framing system, these metal channels may be used in ceiling support arrangements for residential buildings, commercial offices, hotels, shopping centers and other interior spaces.

Manufacturers supplying ceiling framing materials require profiles with consistent dimensions to support installation compatibility and efficient assembly.

The finished C47 channel should be checked against the intended ceiling system, connection accessories and applicable construction requirements.

Precision Roll Forming Technology

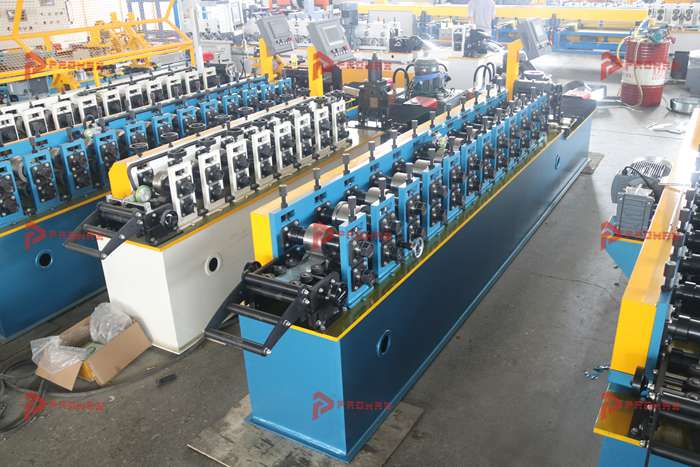

The PROMAX ceiling channel making machine uses progressive cold roll forming technology to shape galvanized steel strip into the required profile.

During production, the material passes through successive forming stations equipped with dedicated rollers.

Each forming station gradually bends the strip to create the specified channel base, sidewalls and edge geometry.

The roller arrangement is developed according to the approved C47 profile drawing, material thickness and mechanical properties.

Proper material guidance and roller alignment help support consistent channel dimensions during continuous production.

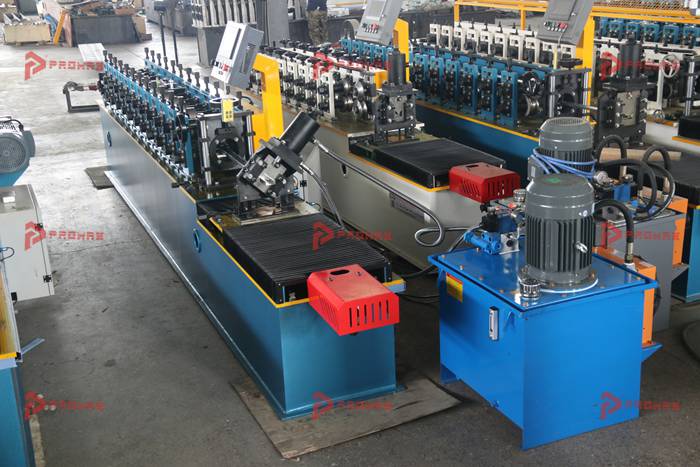

Galvanized Steel Ceiling Channel Production

The C47 ceiling channel machine is intended for processing suitable galvanized steel strip according to the approved equipment specifications.

Galvanized steel is commonly used in metal ceiling framing because its zinc coating provides corrosion protection appropriate to the specified installation environment.

Important material parameters include sheet thickness, steel grade, yield strength, incoming coil width and coating characteristics.

These parameters influence the forming process and should be confirmed before finalizing the machine design.

PROMAX evaluates customer material requirements to determine suitable forming tooling and equipment configuration.

Automatic C47 Ceiling Channel Manufacturing Process

A typical C47 ceiling channel manufacturing process includes the following stages:

1. Decoiling: The galvanized steel coil is loaded onto a suitable decoiler and supplied to the production line.

2. Feeding and Guiding: The strip passes through a guiding section to support correct material alignment.

3. Roll Forming: Dedicated rollers progressively shape the strip into the required C47 ceiling channel profile.

4. Length Cutting: A compatible cutting system cuts the finished profiles to the specified length.

5. Collection and Inspection: Completed ceiling channels are collected, checked and prepared for packaging.

The specific equipment arrangement and automation functions depend on the approved technical proposal.

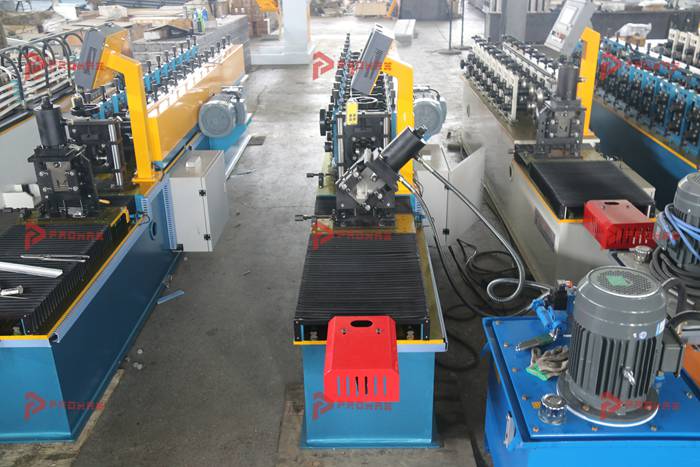

PLC Control and Automatic Cutting Options

PROMAX ceiling channel manufacturing equipment can be configured with PLC-based production control and automatic length cutting.

Depending on the selected configuration, operators may enter required production lengths and quantities through the control interface.

Automatic cutting supports the manufacture of ceiling profiles in different lengths for customer orders and construction projects.

The cutting system is selected according to the approved channel geometry, material thickness and production requirements.

Actual electrical component brands, cutting methods and control functions are confirmed in the final equipment specifications.

Customized C47 Ceiling Channel Profiles

Ceiling framing requirements can vary between construction markets and building systems.

PROMAX can evaluate customized C47 ceiling channel equipment according to customer-supplied profile drawings.

Customization parameters may include profile width, depth, edge geometry, material thickness, incoming coil width and required cutting length.

Additional requirements such as punching, special profile details or different production arrangements can be reviewed during the technical design stage.

Different profile shapes may require separate tooling or a different machine configuration.

Customers requiring multiple ceiling channel types should confirm the necessary changeover arrangements before placing an order.

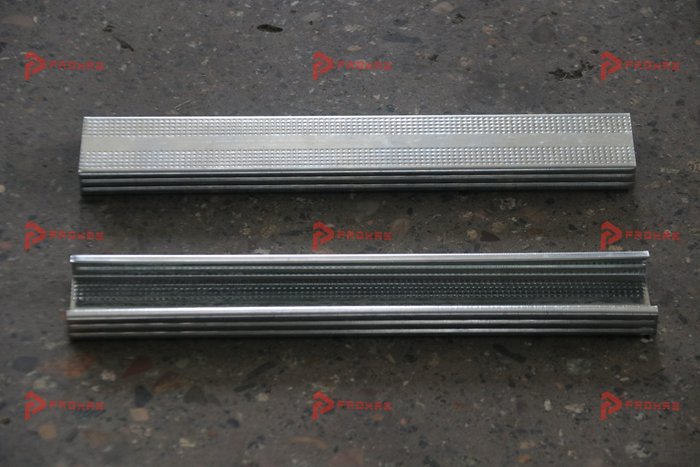

Quality Control for Metal Ceiling Channels

Consistent profile dimensions are important for ceiling framing products because the finished channels must fit the intended installation system.

Recommended inspection items include channel width, depth, edge dimensions, straightness, finished length and visible surface condition.

Sample profiles should be compared with the approved drawing and checked for compatibility with the intended installation accessories.

Regular production inspection helps manufacturers identify dimensional variations and maintain consistent product quality.

Why Choose PROMAX C47 Ceiling Channel Equipment?

PROMAX focuses on roll forming equipment for metal drywall framing, ceiling channels and related light steel construction profiles.

Our team supports customers with profile evaluation, machine configuration, equipment manufacturing, factory testing and technical assistance.

We develop production solutions according to the customer's required profile geometry, material specifications and manufacturing objectives.

Whether you are establishing a new ceiling channel manufacturing facility or expanding an existing metal framing production business, PROMAX can evaluate a suitable equipment solution.

Request a C47 Ceiling Channel Making Machine Quotation

Looking for a reliable C47 ceiling channel making machine for your metal ceiling profile manufacturing business?

Send PROMAX your C47 profile drawing, required dimensions, galvanized steel specifications, material thickness, incoming coil width, finished profile length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment proposal and quotation.

Contact PROMAX today to discuss your C47 ceiling channel manufacturing project.
