C Stud Roll Forming Machine with Punching

PROMAX C Stud Roll Forming Machine with Punching

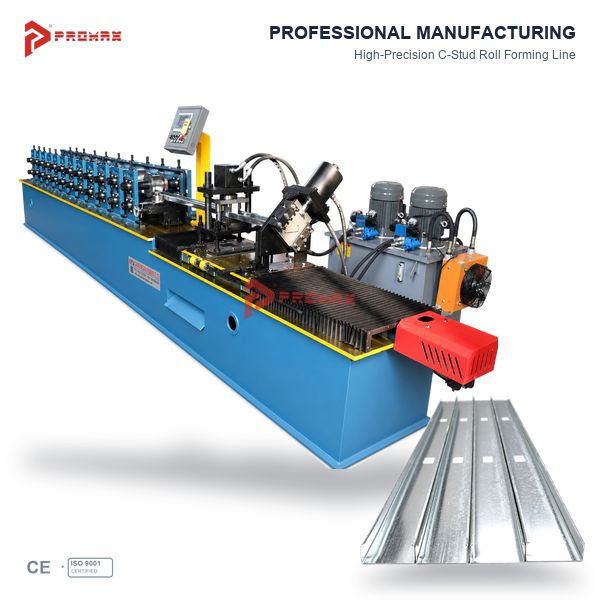

The PROMAX C Stud Roll Forming Machine with Punching is designed for manufacturing galvanized steel C-shaped studs with customized holes for drywall partition systems, interior wall framing and light gauge steel construction applications.

By integrating profile forming, punching and cutting operations into a coordinated production process, this equipment helps manufacturers produce C studs according to specific construction requirements. The punching arrangement can be customized for different hole shapes, dimensions and positions based on approved profile drawings.

PROMAX provides customized C stud manufacturing solutions for drywall profile factories, steel framing suppliers and building material manufacturers worldwide.

Customized C Stud Production with Punching

Unlike a conventional C stud forming machine that only produces plain metal profiles, this equipment incorporates a punching function for producing C studs with specified openings.

Depending on the project requirements, punched openings may be used for routing electrical cables, accommodating compatible building services or meeting particular framing system specifications.

The punching dies and hole positions are designed according to customer drawings. Hole shapes, spacing and allowable locations must be evaluated against the selected profile geometry and material properties.

Integrated Punching and Roll Forming Process

The production process begins with galvanized steel coil feeding. The strip is guided into the production line and processed according to the approved machine configuration.

A punching station creates the specified openings in the material. The metal strip then passes through progressive forming rollers to develop the required C-shaped cross-section.

Depending on the final equipment design, punching can be arranged before or after the main forming section. The appropriate arrangement is selected according to the hole geometry, profile dimensions and manufacturing requirements.

After forming, the finished C stud is cut to the required length using a compatible cutting system.

Precision C-Shaped Metal Stud Profiles

The PROMAX C stud forming machine is engineered according to the customer's required profile drawing, including web width, flange height, return lip dimensions and material thickness.

Progressive cold roll forming gradually bends the steel strip through successive roller stations. Dedicated forming tooling helps produce the specified cross-section while supporting dimensional consistency.

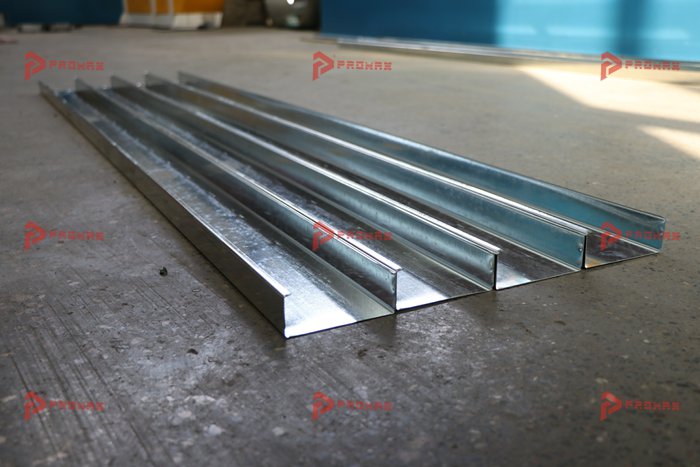

The finished C studs can be manufactured for compatible drywall partitions, internal framing systems and other approved light steel construction applications.

Custom Hole Patterns and Punching Dies

One of the key advantages of this C stud roll forming machine with punching is its ability to accommodate customized hole requirements.

Customers can provide drawings specifying the required hole shape, size, quantity and spacing. PROMAX evaluates these specifications and develops suitable punching tooling for the proposed equipment.

Potential applications include service openings, cable-routing holes and other specified profile perforations.

The final punching arrangement must be confirmed through technical evaluation to ensure compatibility with the C stud profile and manufacturing process.

Galvanized Steel Processing

The machine is primarily designed for suitable galvanized steel coil materials used in light gauge metal framing applications.

Material thickness, yield strength, incoming strip width and coating properties influence the forming and punching processes.

PROMAX evaluates the customer's steel specifications to determine suitable forming rollers, punching dies and machine configurations.

For alternative materials or non-standard thickness requirements, technical confirmation is necessary before production.

PLC Control and Automatic Cutting Options

The production equipment can be configured with PLC-based controls for coordinated manufacturing operations.

Depending on the approved configuration, operators can set production lengths and quantities through a control interface.

Automatic cutting options support the production of finished C studs in different lengths according to customer orders.

Punching control functions and positioning methods are selected based on the specified hole patterns and production requirements.

Applications of Punched C Stud Profiles

Punched C-shaped metal studs are used in compatible light steel framing and drywall construction systems.

Common applications include interior partition walls, commercial office fit-outs, hotel interiors, residential building partitions and prefabricated interior wall assemblies.

Specified service openings may help accommodate cables or other compatible building services during installation.

The final profile design, hole positions and installation arrangement should comply with the applicable framing system requirements and project specifications.

PROMAX Customized Manufacturing Solutions

PROMAX supports customers requiring specialized C stud profiles and customized punching arrangements.

Available engineering options can include dedicated C-profile rollers, customized punching dies, adjustable production settings, automatic cutting and suitable coil handling equipment.

Different C stud dimensions or hole patterns may require separate tooling or equipment adjustments. Customers should confirm the intended range of products before finalizing the machine configuration.

Production Quality and Inspection

Consistent profile geometry and accurate hole positioning are important for punched metal studs.

Recommended inspection items include web width, flange dimensions, return lip geometry, finished length, hole dimensions, hole spacing and visible surface condition.

Sample profiles should be checked against the approved drawings before commercial production.

PROMAX can incorporate profile evaluation and machine testing into the equipment preparation process according to the agreed technical requirements.

Why Choose PROMAX?

PROMAX specializes in roll forming equipment for drywall profiles, metal studs, tracks and light gauge steel framing products.

We provide equipment solutions based on customer drawings, production objectives and material specifications.

Our services cover profile evaluation, customized machine configuration, manufacturing, equipment testing and technical support.

For manufacturers planning to produce C studs with service openings or other customized punching patterns, PROMAX can evaluate a suitable integrated forming solution.

Request a C Stud Machine Quotation

Looking for a C stud roll forming machine with punching for your drywall profile manufacturing business?

Send PROMAX your C stud profile drawing, steel thickness, hole dimensions, punching positions, required finished lengths and target production capacity.

Our technical team can review your specifications and prepare a customized equipment proposal and quotation.

Contact PROMAX today to discuss your C stud punching and roll forming project.
