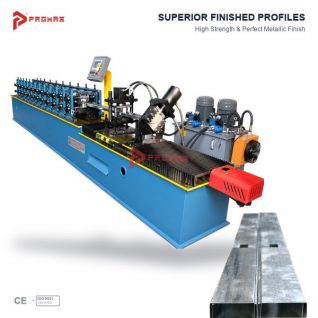

In the competitive landscape of construction material manufacturing, efficiency and versatility are key drivers of profitability. For producers of light-gauge steel framing, the ability to deliver finished, ready-to-install components directly off the production line provides a significant market advantage. Standard C-channel roll forming machines create the basic profile, but additional processing steps are often required. To address this need and streamline your entire workflow, we introduce our advanced C Channel Rolling Machine With Punching System. This integrated solution is engineered not only to form precise C-section channels but also to incorporate essential punching operations in a single, continuous process. Investing in a C Channel Rolling Machine With Punching System transforms your production capability, reducing handling time, labor costs, and operational complexity while boosting overall output and product value.

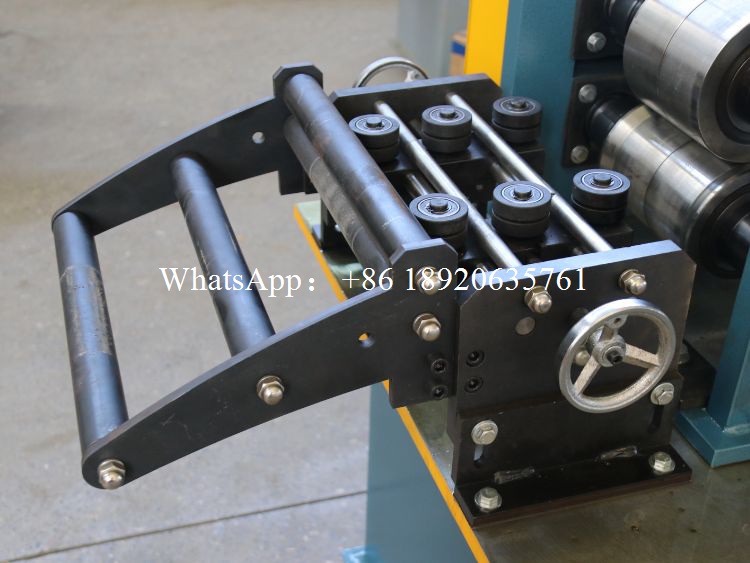

The process begins with automatic decoiling, feeding the steel strip into the system.

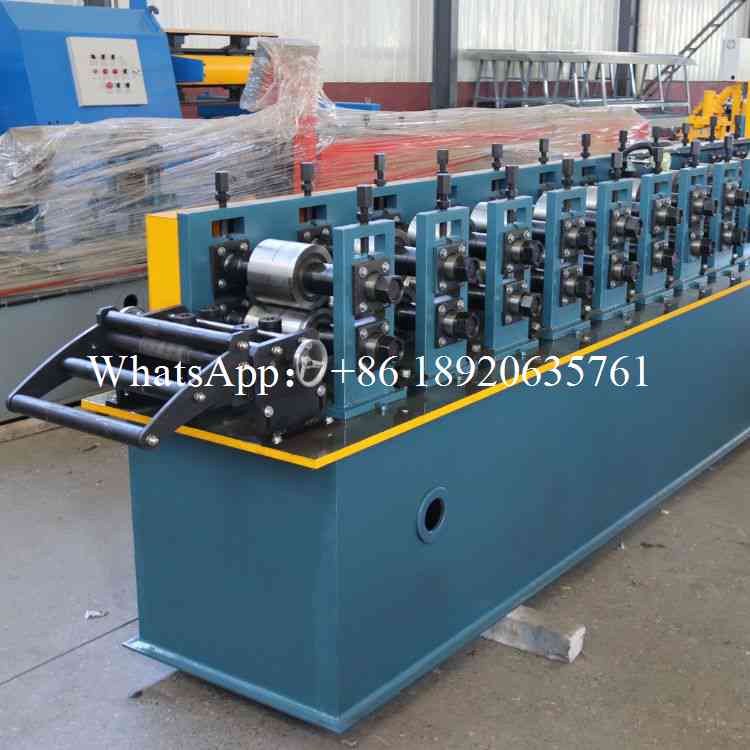

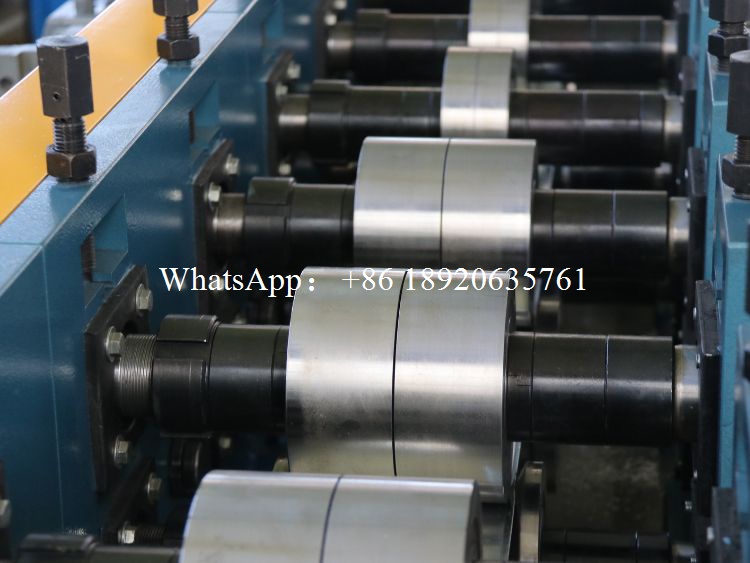

The material then moves through a precision roll forming section, where a series of hardened rollers gradually shape it into a perfect C-channel profile.

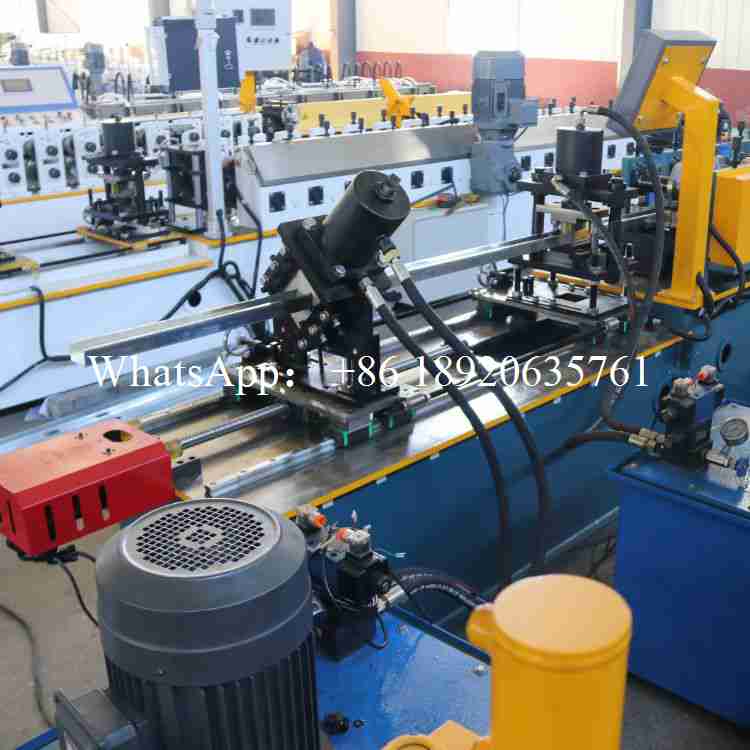

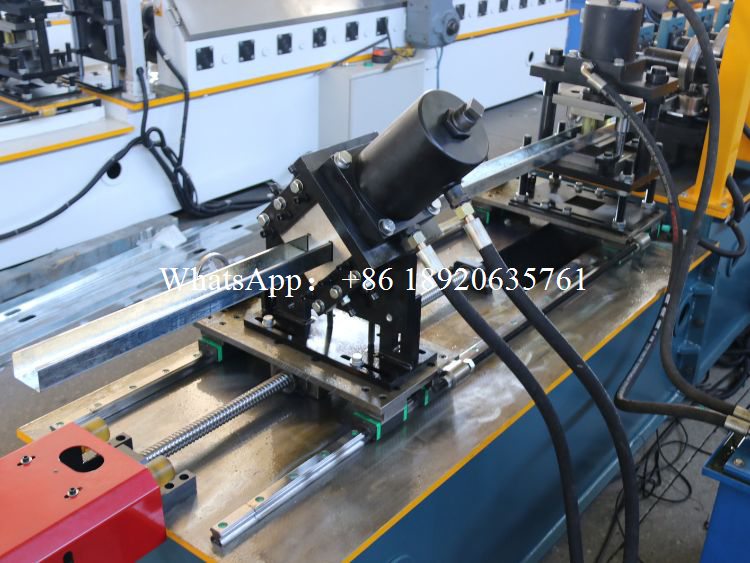

However, the defining feature of this equipment is its integrated punching station. Before or after the final forming stage—based on optimal tooling design—this system accurately punches holes for electrical conduits, plumbing, fasteners, or service access directly into the web or flanges of the channel. Finally, a synchronized high-speed cutting unit shears the punched and formed profile to exact lengths.
This integration is the primary benefit of choosing a C Channel Rolling Machine With Punching System, as it eliminates the need for secondary, offline punching operations, ensuring perfect hole alignment and dramatically increasing production throughput.
| Product Name | C Channel Rolling Machine With Punching System |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Beyond its core punching functionality, this C Channel Rolling Machine With Punching System is built for adaptability in a global market. It offers extensive customization to meet specific project requirements. Critical parameters such as the material entry width, forming thickness (gauge), operational voltage, and the language on the intuitive touchscreen control panel can be tailored to your factory's exact specifications. The punching patterns, including hole diameter, spacing, and layout, are also fully customizable through programmable controls. Furthermore, the entire machine is designed and certified to meet the highest international standards, holding CE certification. This guarantees that the C Channel Rolling Machine With Punching System complies with stringent EU safety, health, and environmental protection directives, ensuring safe operation and facilitating market access.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a C Channel Rolling Machine With Punching System. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the C Channel Rolling Machine With Punching System can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
