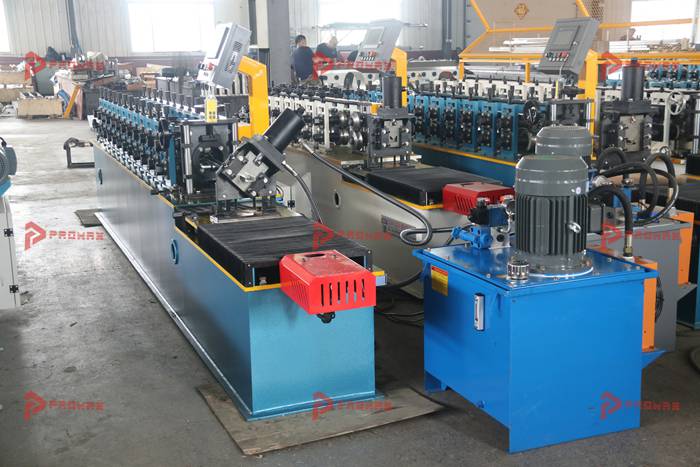

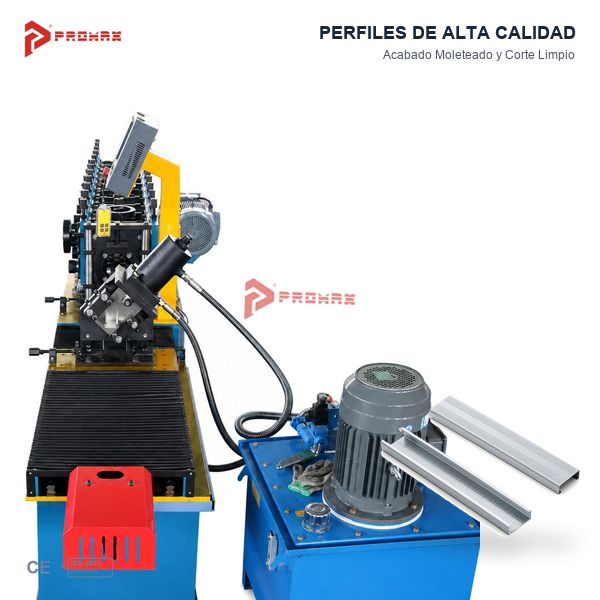

PROMAX C47 Ceiling Channel Roll Forming Machine

PROMAX C47 Ceiling Channel Roll Forming Machine

The PROMAX C47 ceiling channel roll forming machine is designed for manufacturing C47 metal ceiling profiles used in suspended ceiling structures and interior construction systems. Using progressive cold roll forming technology, the machine transforms galvanized steel strip into accurately shaped ceiling channels according to the required profile drawing.

C47 ceiling channels are used in metal framing systems to support ceiling panels and associated interior construction components. Consistent profile dimensions are important for installation compatibility, structural arrangement and efficient assembly.

PROMAX provides customized C47 roll forming solutions for manufacturers of ceiling framing materials, galvanized steel profiles and drywall accessories. Depending on the approved equipment configuration, the production line can include a decoiler, guiding system, precision forming rollers, PLC control, automatic length cutting and finished profile collection.

What Is a C47 Ceiling Channel Roll Forming Machine?

A C47 ceiling channel roll forming machine is specialized cold forming equipment developed to manufacture C47 metal ceiling channels from suitable steel coils.

The machine uses a series of forming roller stations to gradually bend flat metal strip into the required C47 cross-sectional shape.

Each roller station performs a controlled forming operation until the metal strip reaches the final channel geometry.

The finished profiles can then be cut to the required length and collected for inspection, stacking and packaging.

The actual profile dimensions, edge details and production configuration are determined according to the approved customer drawing.

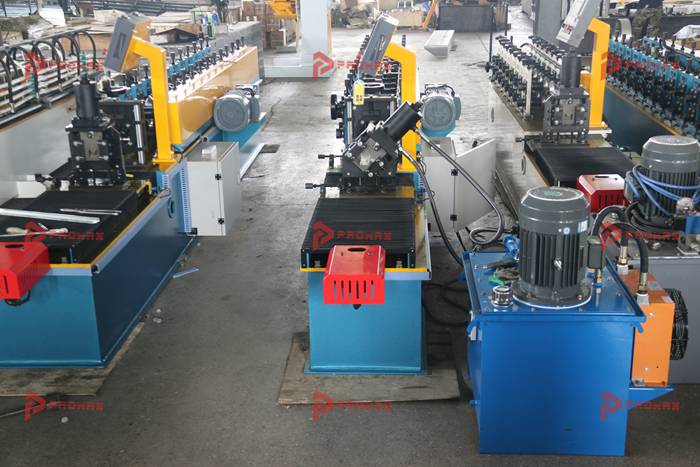

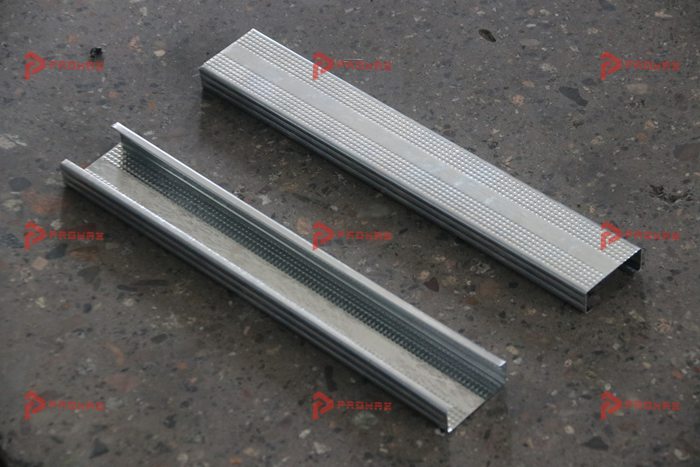

C47 Ceiling Channel Profile Applications

C47 ceiling channels are associated with metal suspended ceiling framing systems and related interior construction applications.

These profiles may be used as part of ceiling support arrangements, depending on the specified building system and installation requirements.

Common application areas include residential buildings, commercial offices, hotels, shopping facilities, institutional buildings and interior renovation projects.

Profile compatibility should be confirmed against the intended ceiling system, installation accessories and applicable project specifications.

PROMAX can evaluate customized profile drawings for customers supplying different construction markets.

Precision Cold Roll Forming Technology

The PROMAX C47 machine uses progressive cold roll forming technology to manufacture metal ceiling channels with the required cross-sectional geometry.

During production, galvanized steel strip passes through successive forming stations equipped with dedicated rollers.

Each station gradually changes the shape of the material, forming the channel base, sidewalls and specified edge details.

The forming roller arrangement is designed according to the approved C47 profile drawing, material thickness and steel properties.

Accurate roller alignment and material guidance help support consistent profile dimensions during continuous production.

Production inspection remains important for confirming that finished channels meet the approved specifications.

Galvanized Steel Material Processing

The C47 ceiling channel machine is intended for processing suitable galvanized steel strip according to the approved machine specifications.

Galvanized steel is commonly selected for interior metal framing applications because its zinc coating provides a level of corrosion protection appropriate to the specified environment.

Material parameters that influence machine design include sheet thickness, yield strength, incoming coil width and coating characteristics.

The required steel grade and material thickness should be confirmed before finalizing the forming rollers and machine configuration.

PROMAX evaluates these parameters to recommend a suitable manufacturing solution for the customer's C47 profile.

Automatic C47 Ceiling Channel Production Process

A typical C47 ceiling channel manufacturing process includes several coordinated production stages.

1. Decoiling: Suitable galvanized steel coil is loaded onto a decoiler and supplied to the production line.

2. Material Guiding: The steel strip passes through a guiding section to support correct alignment before forming.

3. Roll Forming: Dedicated forming rollers progressively shape the strip into the approved C47 channel profile.

4. Length Cutting: A compatible cutting system cuts the finished channel to the specified length.

5. Collection and Inspection: Completed profiles are collected, checked and prepared for packaging.

The specific equipment arrangement and level of automation depend on the approved technical proposal.

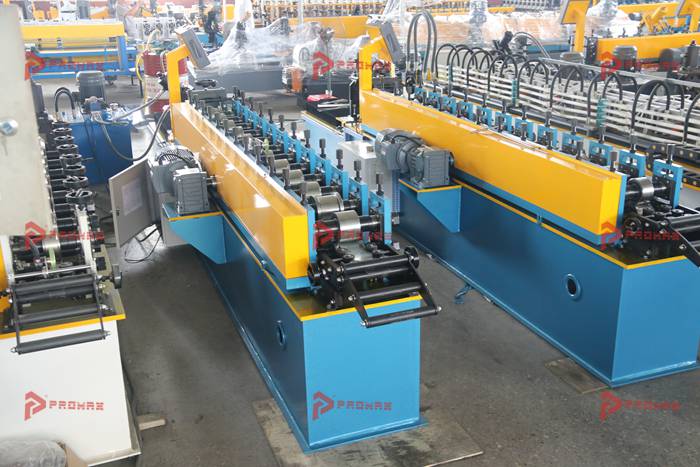

PLC Control and Automatic Cutting Options

PROMAX C47 ceiling channel equipment can be configured with PLC-based control and automatic cutting functions.

Depending on the selected configuration, operators may enter production lengths and quantities through the control interface.

Automatic length cutting can support production of ceiling channels for different customer orders and installation requirements.

The cutting method and control functions are selected according to the channel geometry, steel thickness and required manufacturing process.

Electrical component brands, control features and cutting equipment are confirmed in the final machine specifications.

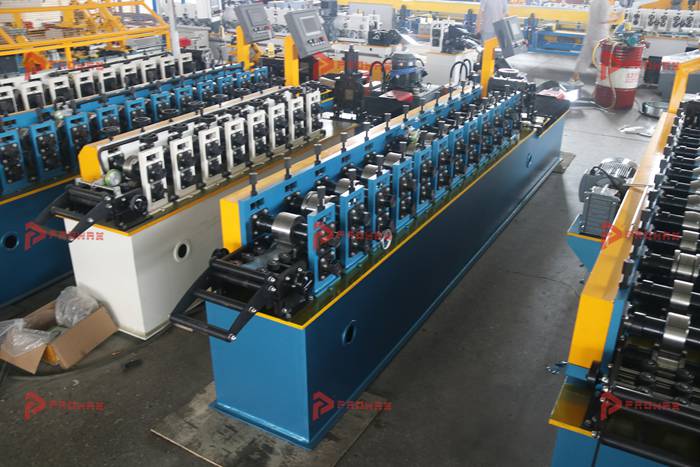

Customized C47 Ceiling Profile Manufacturing

Ceiling framing systems may use different profile dimensions and connection details depending on local construction practices.

PROMAX can evaluate customized C47 ceiling channel production equipment according to customer-supplied drawings.

Important customization parameters include profile width, depth, edge geometry, material thickness, incoming coil width and required cutting length.

Additional manufacturing requirements, such as punching or special profile details, should be evaluated during the technical design stage.

Different profile shapes may require dedicated forming tooling or a different machine configuration.

Customers requiring multiple ceiling channel types should confirm the necessary changeover arrangement before placing an order.

Quality Inspection for C47 Ceiling Channels

Dimensional consistency is important for metal ceiling channels because the profiles must fit the intended ceiling framing system.

Recommended inspection items include profile width, depth, edge dimensions, straightness, finished length and visible surface condition.

Sample profiles should be compared with the approved drawing and checked for compatibility with the intended installation accessories.

Regular inspection helps manufacturers identify forming variations and maintain consistent product quality.

Why Choose PROMAX Ceiling Channel Equipment?

PROMAX specializes in roll forming equipment for metal drywall framing, ceiling channels and related light steel construction profiles.

Our team supports customers with profile evaluation, forming equipment configuration, machine manufacturing, factory testing and technical assistance.

We develop equipment proposals according to the customer's profile drawing, material specifications and manufacturing requirements.

Whether you are establishing a new ceiling channel production facility or expanding an existing metal framing manufacturing business, PROMAX can evaluate a suitable roll forming solution.

Request a C47 Ceiling Channel Roll Forming Machine Quotation

Looking for a reliable C47 ceiling channel roll forming machine for your metal framing manufacturing business?

Send PROMAX your C47 profile drawing, required dimensions, steel grade, material thickness, incoming coil width, finished channel length and expected production capacity.

Our technical team can review your requirements and prepare a customized machine configuration proposal and quotation.

Contact PROMAX today to discuss your C47 ceiling channel manufacturing project.
