In the competitive landscape of modern construction material manufacturing, efficiency, precision, and adaptability are not just advantages—they are necessities. Our Ceiling Channel Roll Forming Machine Production Line embodies these principles, offering a fully integrated, automated solution for the high-volume production of precision ceiling channel sections, also known as furring channels or studs. This complete system is engineered to transform raw steel coil into finished, cut-to-length profiles with remarkable speed and consistency, making it an indispensable asset for manufacturers supplying the global construction industry.
The core operation of the Ceiling Channel Roll Forming Machine Production Line follows a seamless, automated workflow.
The process initiates with a sturdy decoiler that smoothly feeds the steel coil into the system.

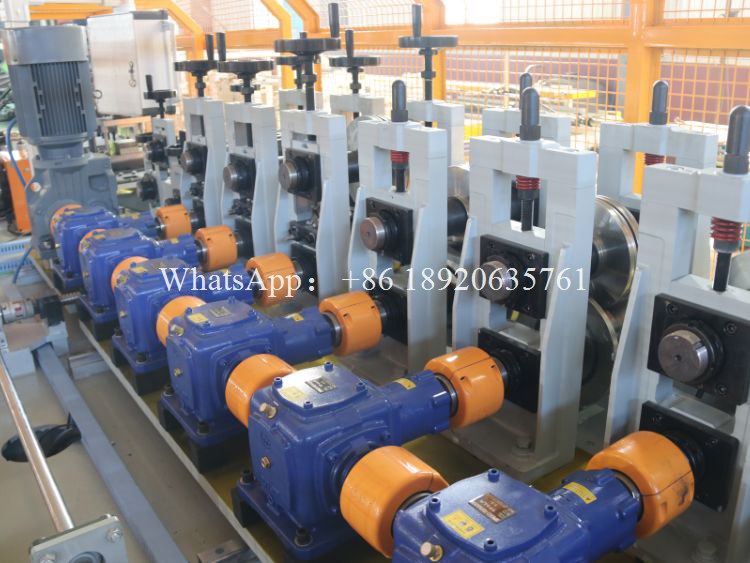

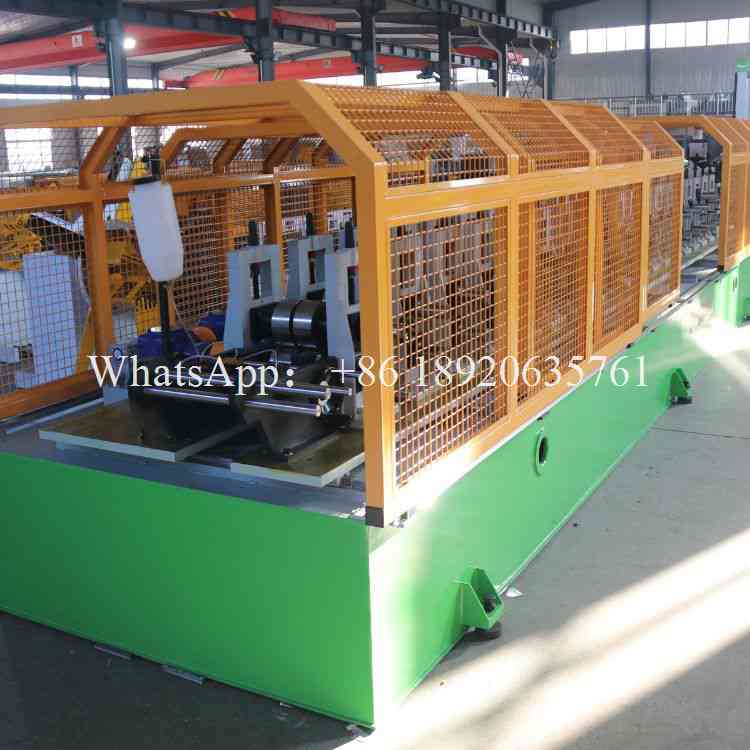

The metal strip then progresses into the heart of the line: the precision roll forming station. Here, a series of computer-designed, hardened roller dies progressively shape the flat strip into the desired rigid channel profile through a cold-forming process that enhances strength.

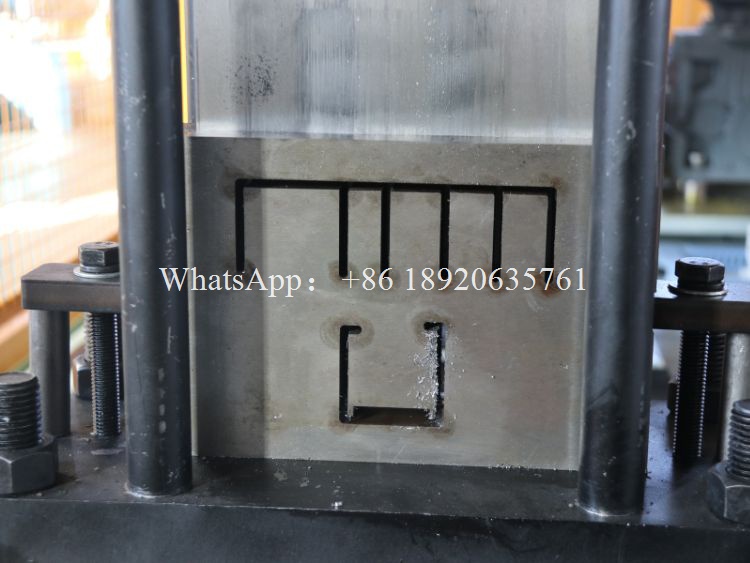

Following forming, a high-accuracy servo-cut system cleanly shears the continuous profile into predetermined lengths with absolute precision, eliminating material waste.

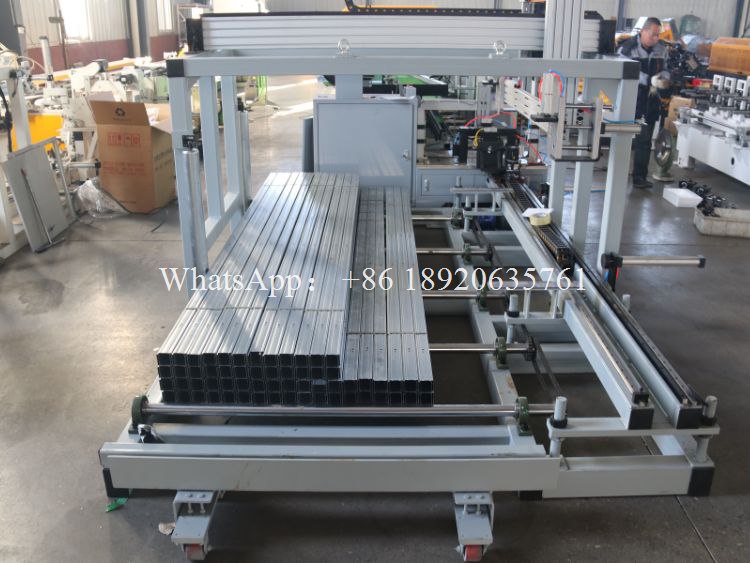

Finally, an automatic stacking and palletizing unit organizes the finished products, ensuring neat bundles ready for packaging and shipment, thereby minimizing manual handling and labor costs.
| Product Name | Ceiling Channel Roll Forming Machine Production Line |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
A defining feature of our Ceiling Channel Roll Forming Machine Production Line is its dual commitment to unwavering support and deep customization. We mitigate potential downtime through advanced connectivity, enabling our engineers to provide instant video-based online guidance for troubleshooting and maintenance. This ensures rapid resolution and continuous operation. Furthermore, we understand that every production facility has unique requirements. Therefore, this production line is built for customization. Key specifications such as the maximum incoming material width, the range of roll forming thickness, and the operational voltage can be tailored to your specific needs. The intuitive human-machine interface (HMI) features a multi-language touchscreen, which can be programmed to suit your operators' preferences, enhancing ease of use and reducing training time.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Ceiling Channel Roll Forming Machine Production Line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Ceiling Channel Roll Forming Machine Production Line can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
