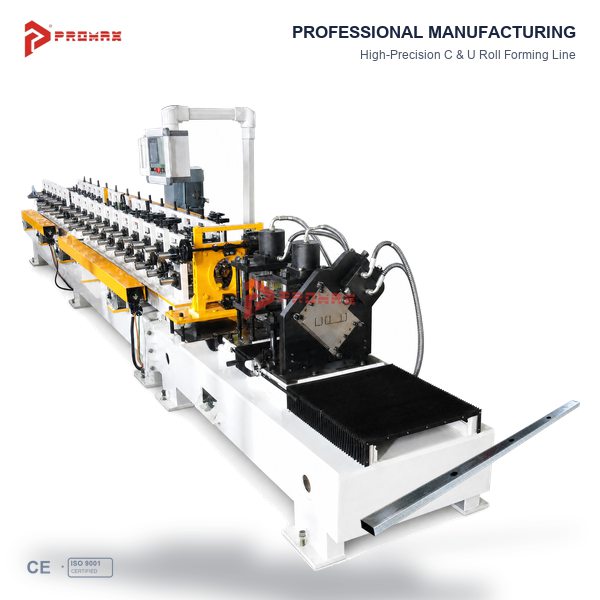

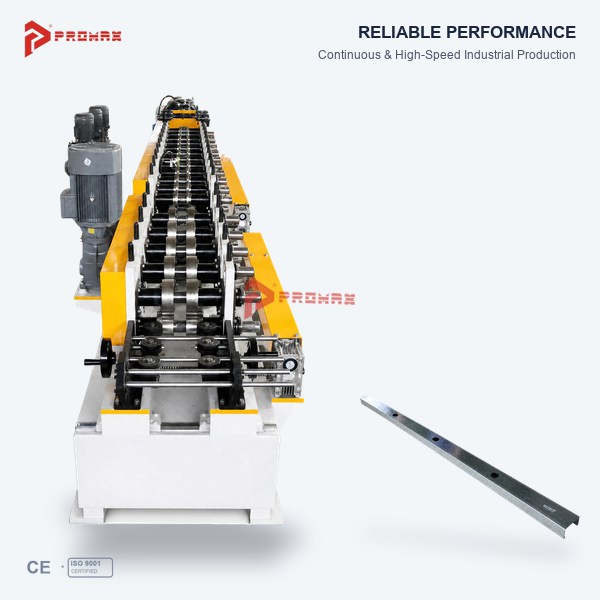

Automatic C/U Metal Stud and Track Roll Forming Machine

PROMAX Metal Stud and Track Roll Forming Machine with Automatic C/U Changeover

The PROMAX metal stud and track roll forming machine is an automatic production solution designed for manufacturing galvanized steel C studs and U tracks used in drywall partition walls and interior metal framing systems. Featuring an automatic C/U changeover configuration, the machine allows manufacturers to produce compatible stud and track profiles on one production line.

Unlike conventional single-profile roll forming equipment that requires extensive manual tooling adjustments, the PROMAX automatic C/U changeover system is designed to simplify switching between supported C-shaped and U-shaped profiles. Operators can manage the selected profile settings through the machine control system, reducing repetitive manual adjustment during production changeovers.

The equipment combines progressive cold roll forming technology with automated production control, making it suitable for drywall profile manufacturers, building material suppliers and metal framing production facilities.

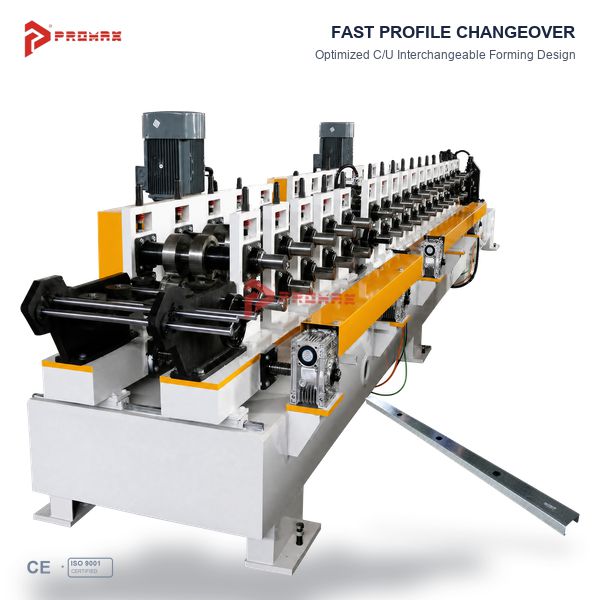

Automatic C/U Changeover for Stud and Track Production

One of the main advantages of the PROMAX automatic stud and track machine is its ability to switch between compatible C stud and U track profiles using an automated adjustment system.

C studs are commonly used as vertical framing members in drywall partition systems, while U tracks are generally installed as horizontal guiding and positioning members.

These two profile types work together to create a complete metal framing arrangement for interior partition walls.

With an approved automatic C/U changeover configuration, operators can select the required profile type and corresponding production parameters through the control interface.

The adjustment mechanism changes the relevant forming settings according to the supported profile program, reducing the need for repeated manual roller repositioning.

The available profile dimensions and changeover functions depend on the approved machine specifications.

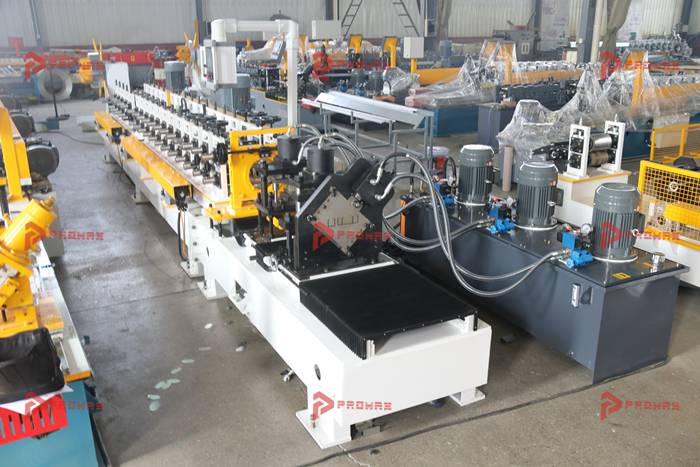

One Production Line for Metal Stud and Track Profiles

The metal stud and track roll forming machine is developed for manufacturers requiring both C-shaped studs and U-shaped tracks for compatible drywall framing systems.

Using one configurable production line can reduce the need for separate dedicated machines when the required profiles fall within the supported equipment range.

Manufacturers can organize production according to customer orders, profile dimensions and required quantities.

Automatic changeover is particularly useful for factories supplying multiple compatible drywall framing products to construction material distributors and contractors.

The machine's production capability should be confirmed against the customer's actual C and U profile drawings.

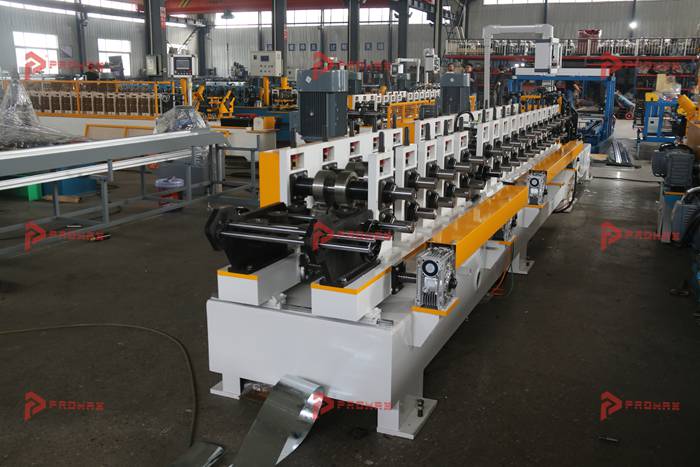

PLC-Controlled Automatic Profile Adjustment

The PROMAX automatic C/U changeover machine uses a control arrangement designed to coordinate profile selection, supported forming adjustments and production operation.

Depending on the approved configuration, operators can select compatible C stud or U track production settings through the PLC control interface.

The automated adjustment system positions the relevant forming components according to the selected profile program.

This approach helps simplify production changeovers compared with equipment requiring repeated manual adjustment of forming components.

Specific adjustment mechanisms, control functions and available profile programs are confirmed in the final technical proposal.

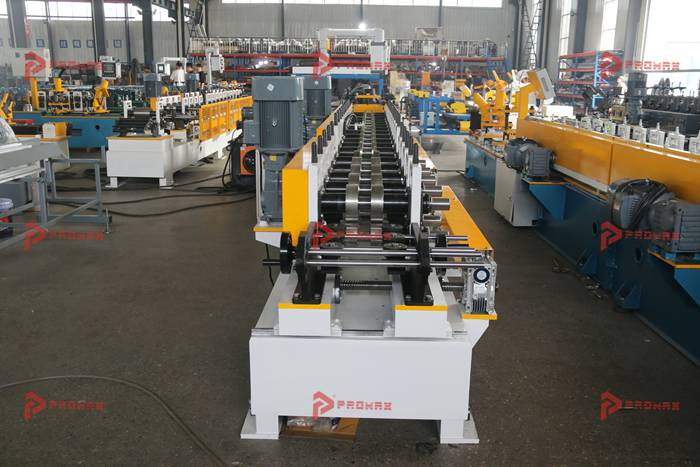

Precision Cold Roll Forming Technology

The PROMAX steel stud and track roll former uses progressive cold roll forming technology to manufacture galvanized steel framing profiles.

During production, the incoming steel strip passes through successive forming roller stations.

Each station gradually bends the material until the required C-shaped or U-shaped cross-section is achieved.

The forming roller arrangement is developed according to the approved profile dimensions, steel thickness and material properties.

Proper strip guidance, roller alignment and production inspection help support consistent finished profile dimensions.

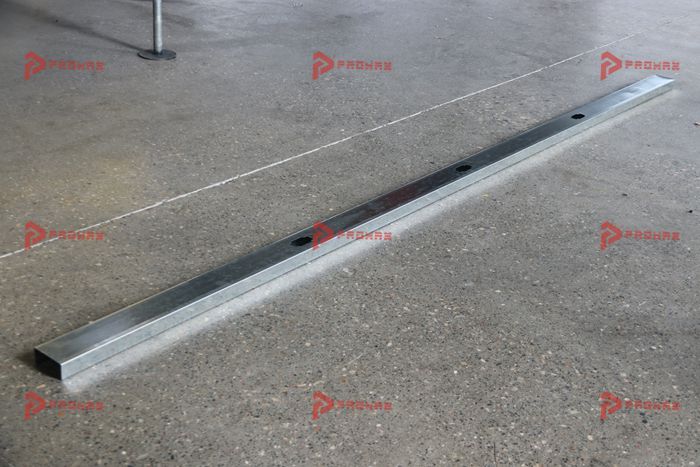

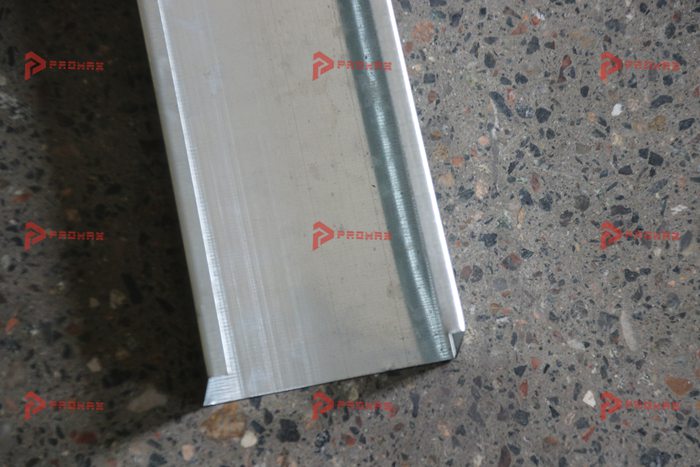

Customized C Stud and U Track Dimensions

Different construction markets use different metal stud and track dimensions for drywall framing systems.

PROMAX can evaluate customized drywall stud and track machines according to customer-supplied profile drawings.

Important customization parameters include stud web width, track width, flange dimensions, edge geometry, material thickness and required cutting length.

Compatible C and U profiles can be incorporated into an approved automatic changeover configuration when supported by the machine design.

Customers should provide both C stud and U track drawings so the technical team can evaluate the required adjustment range.

Additional profile features, including service holes or specialized edge details, can be evaluated according to the customer's requirements.

Galvanized Steel Material Processing

Galvanized steel is commonly used for manufacturing metal studs and tracks for drywall partition systems.

The zinc coating provides corrosion protection suitable for specified indoor construction environments.

The metal stud and track machine is configured according to the required steel grade, sheet thickness, incoming coil width and coating characteristics.

Material properties influence forming roller design, machine adjustment and production conditions.

PROMAX evaluates the customer's galvanized steel specifications before confirming the final machine configuration.

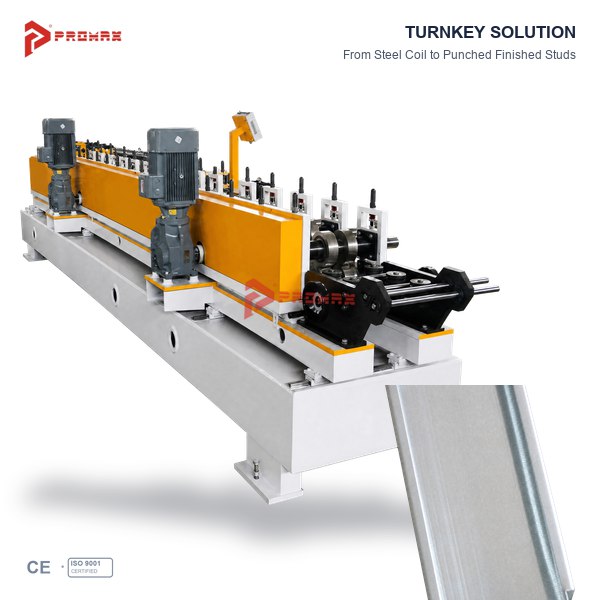

Automatic Stud and Track Manufacturing Process

A typical automatic C/U stud and track production process includes the following stages:

1. Decoiling: Galvanized steel coil is loaded onto a suitable decoiler and supplied to the production line.

2. Profile Selection: The operator selects the required supported C stud or U track profile through the control interface.

3. Automatic Changeover: The machine adjusts the relevant forming settings according to the selected profile program.

4. Material Guiding: The steel strip passes through the guiding section before entering the forming stations.

5. Roll Forming: Dedicated forming rollers progressively shape the material into the required C or U profile.

6. Automatic Cutting: The finished profile is cut to the specified length using the approved cutting arrangement.

7. Collection and Inspection: Completed profiles are collected, checked and prepared for packaging.

The final production sequence and level of automation depend on the approved machine design.

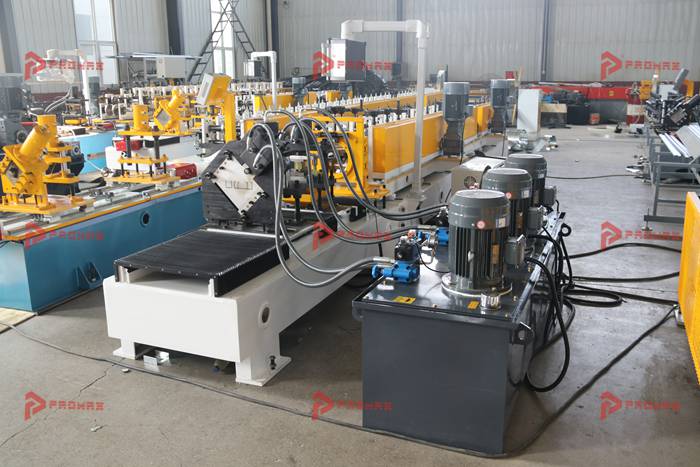

Automatic Length Cutting and Production Control

The PROMAX automatic C/U changeover roll forming machine can be configured with automatic length cutting and production quantity control.

Operators can manage supported production settings through the machine interface according to the approved control functions.

Automatic cutting supports repeated manufacturing of C studs and U tracks in specified lengths.

The cutting system is selected according to the supported profile geometry, galvanized steel thickness and production requirements.

Control component brands, cutting arrangements and automation functions are confirmed in the final equipment specifications.

Applications in Drywall Partition Systems

Metal studs and tracks are widely used in interior drywall framing systems for residential, commercial and institutional buildings.

C studs are generally used as vertical framing members, while U tracks provide compatible horizontal framing guides.

These profiles are commonly supplied to drywall contractors, building material distributors and metal framing system manufacturers.

Typical application markets include office buildings, hotels, shopping facilities, hospitals, schools and residential construction projects.

The required profile dimensions and installation arrangements depend on the intended drywall framing system and applicable project specifications.

Benefits of Automatic C/U Changeover Technology

For manufacturers producing both metal studs and tracks, automatic profile changeover offers several practical production advantages.

The system reduces repetitive manual adjustment when switching between supported C and U profiles.

It allows manufacturers to organize production of compatible stud and track products using one configurable machine.

PLC-based profile selection helps operators manage approved production programs and repeat manufacturing orders.

Automatic cutting options support production of specified profile lengths and quantities.

Actual changeover performance and production efficiency depend on the approved equipment configuration and operating conditions.

Why Choose PROMAX Automatic Stud and Track Equipment?

PROMAX specializes in roll forming equipment for drywall framing profiles, metal studs, tracks, ceiling channels and related light gauge steel construction products.

Our team supports customers with profile evaluation, automatic changeover configuration, machine manufacturing, factory testing and technical assistance.

We develop customized equipment solutions according to the customer's C and U profile drawings, galvanized steel specifications and production objectives.

Whether you are establishing a new drywall profile factory or upgrading an existing stud and track manufacturing operation, PROMAX can evaluate a suitable automatic C/U production solution.

Request an Automatic Metal Stud and Track Machine Quotation

Looking for a reliable metal stud and track roll forming machine with automatic C/U changeover?

Send PROMAX your C stud and U track profile drawings, required dimensions, galvanized steel thickness, material grade, incoming coil width, cutting length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment configuration proposal and quotation.

Contact PROMAX today to request your automatic C/U stud and track roll forming machine price.
