The contemporary construction industry operates on principles of speed, precision, and maximum resource efficiency. However, traditional manufacturing setups—relying on separate machines or lengthy manual changeovers—create significant bottlenecks, consuming valuable floor space and tying up capital in redundant equipment. To decisively overcome these challenges, we introduce the Auto C/U Stud and Track Forming Machine. This advanced, dual-purpose system is engineered to produce both critical profiles on a single, intelligent platform, embodying the future of lean, agile, and cost-effective component manufacturing.

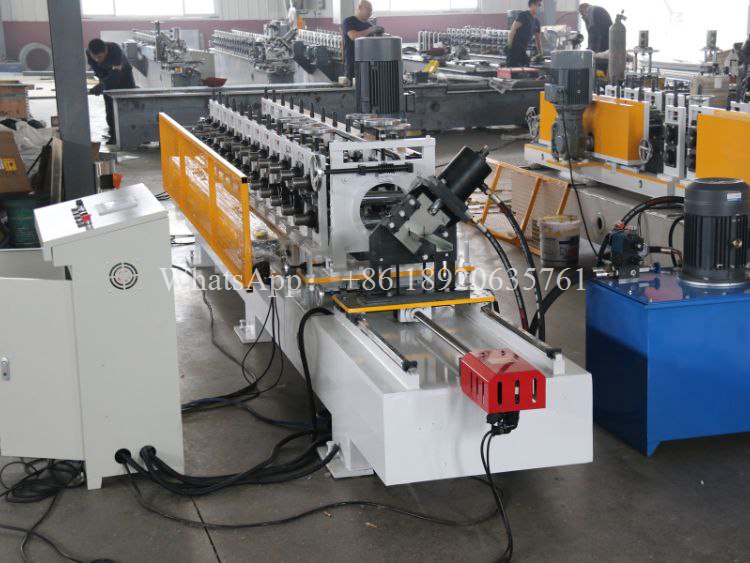

The operational intelligence of the Auto C/U Stud and Track Forming Machine is built upon a fully automated and precision-driven workflow.
The process begins with automatic decoiling and feeding, ensuring a smooth, consistent supply of galvanized steel coil into the production line.

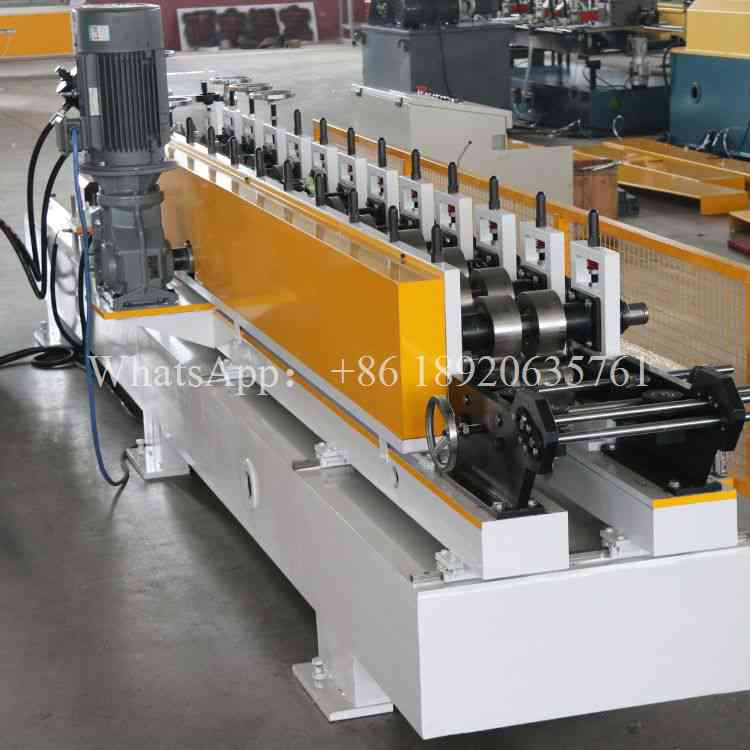

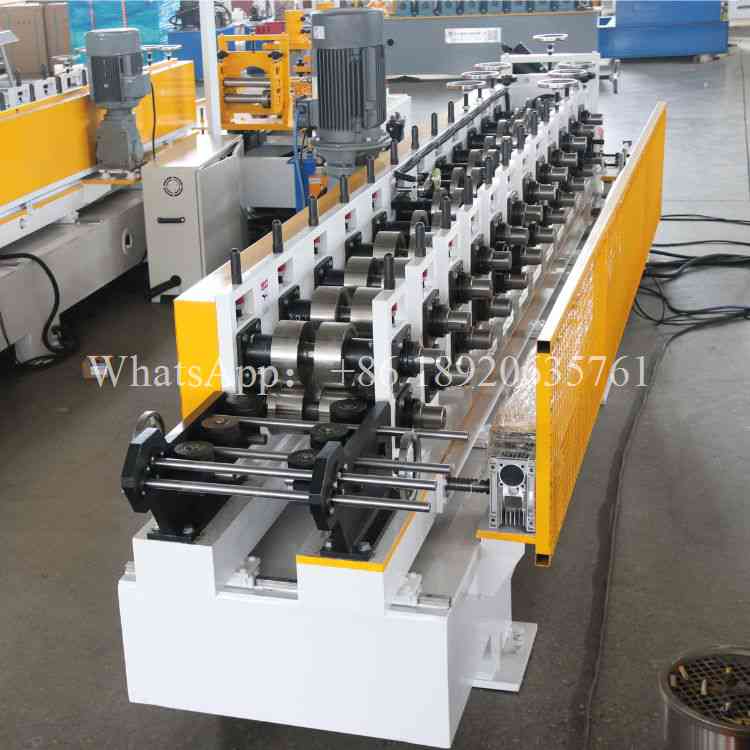

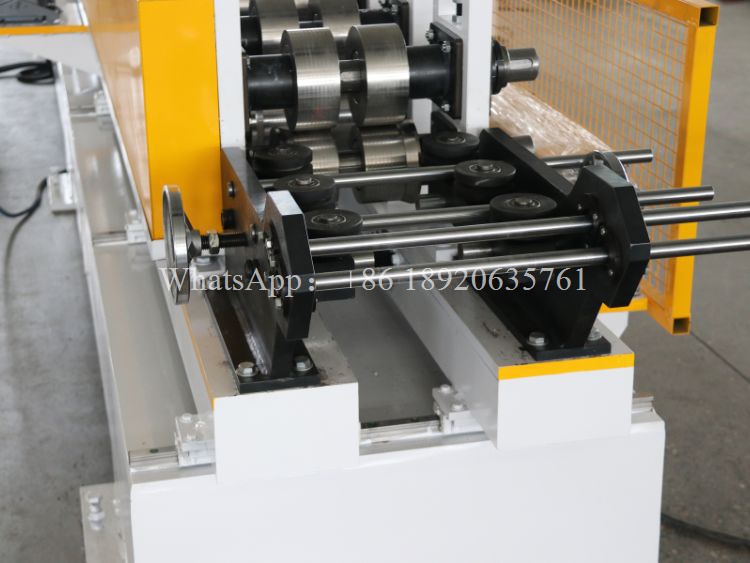

The material then advances through a heavy-duty, multi-stage roll forming station, where it is accurately shaped into high-tolerance profiles.

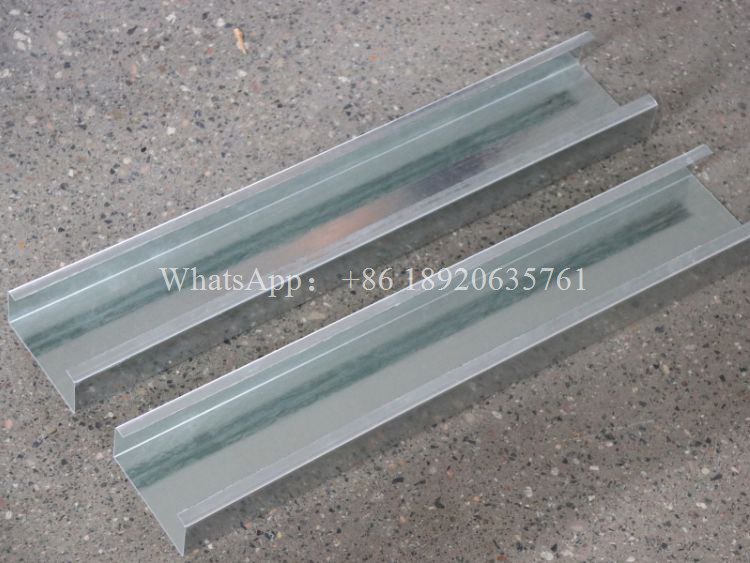

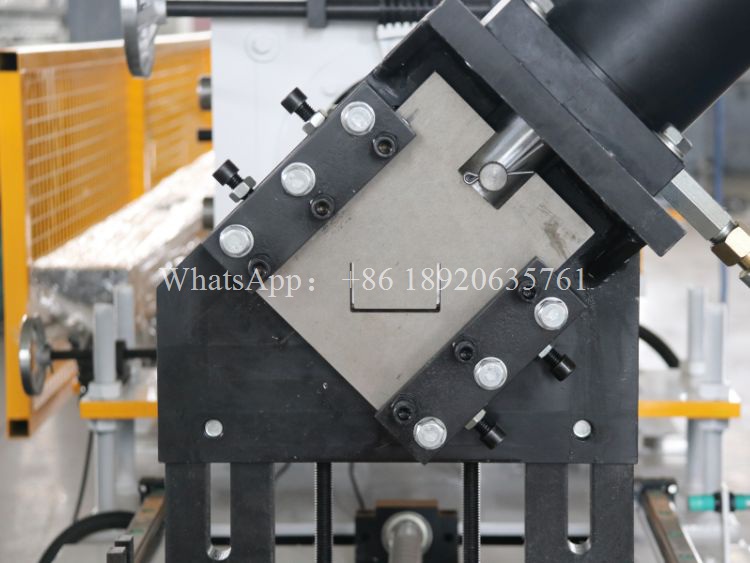

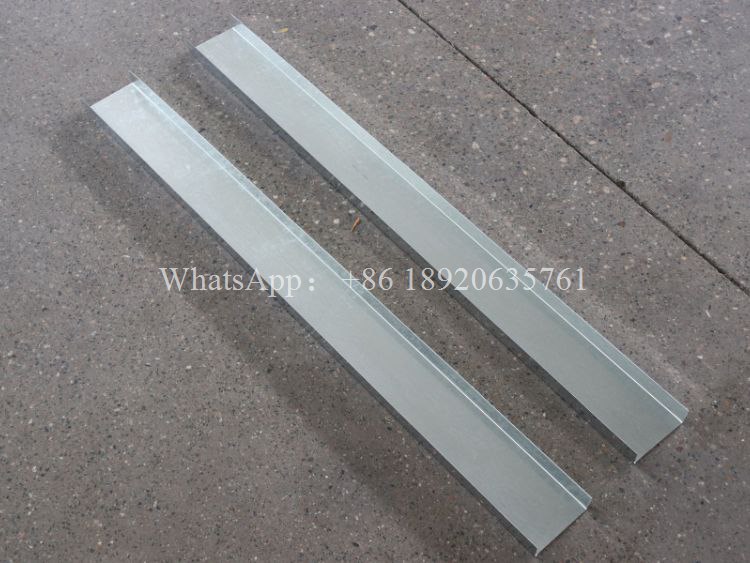

The key innovation lies in the integrated quick-change system. Transitioning between C-stud and U-track production is achieved efficiently through the physical exchange of the shear head and corresponding adjustments to the roll tooling setup.

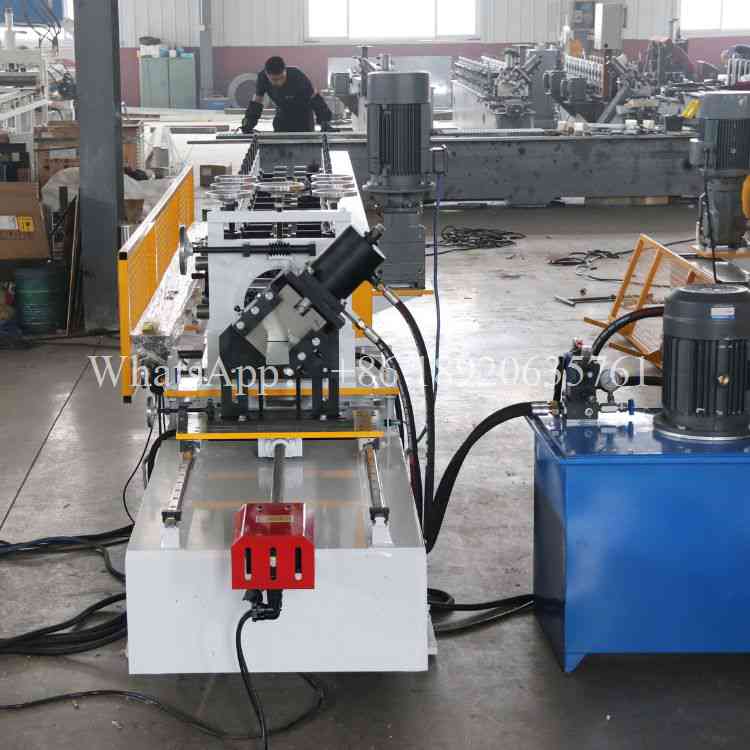

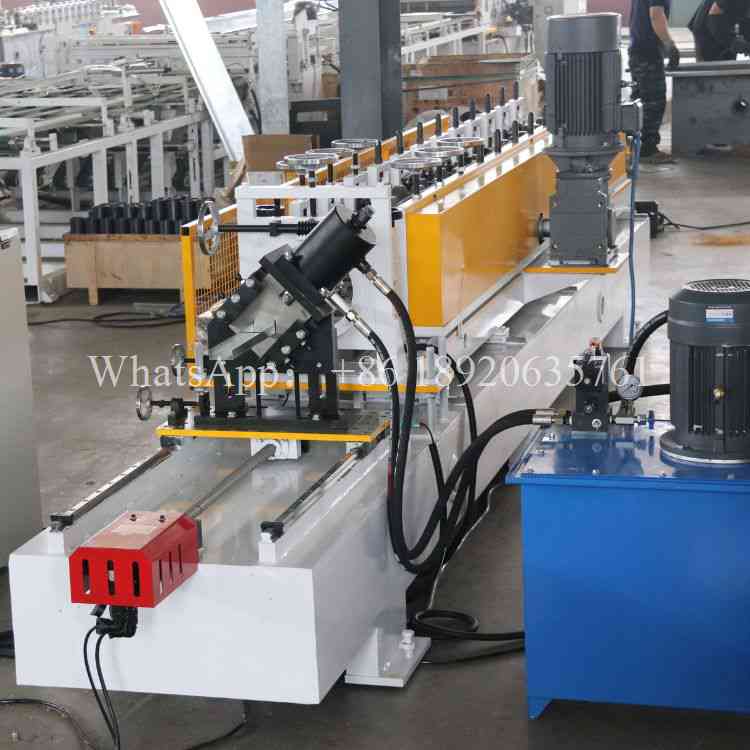

This streamlined changeover process minimizes downtime, allowing a single Auto C/U Stud and Track Forming Machine to fulfill diverse production schedules for complete framing sets rapidly. Following forming, a high-speed servo cutting unit ensures clean, precise cuts, enabling the continuous output of ready-to-ship components.
| Product Name | Auto C/U Stud and Track Forming Machine |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |

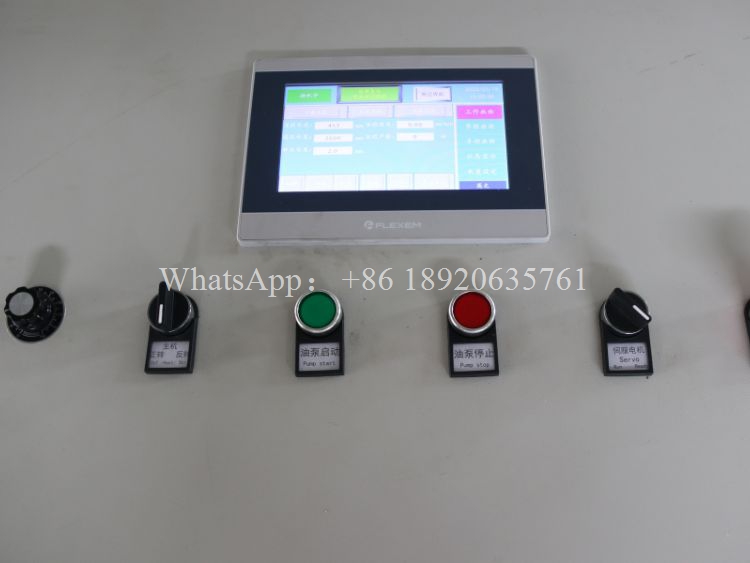

The primary economic advantage of the Auto C/U Stud and Track Forming Machine is its profound impact on your factory's bottom line and spatial efficiency. By replacing the need for two separate machines, the Auto C/U Stud and Track Forming Machine liberates substantial factory floor space and reduces your initial capital expenditure by up to half. This consolidation directly lowers ongoing maintenance costs and simplifies operational logistics. The flexibility to produce both profiles on demand enables true just-in-time manufacturing, reducing inventory carrying costs and eliminating the risk of component shortages. Furthermore, the Auto C/U Stud and Track Forming Machine is built for global adaptability. We offer extensive customization, allowing you to specify parameters such as maximum material entry width, steel thickness capacity, operational voltage, and the language on the intuitive touch-screen HMI to suit your local standards. Crucially, the machine's design and construction meet the highest international safety benchmarks, as confirmed by its CE certification, ensuring compliance and facilitating market access.
To guarantee you extract maximum value and uptime from this versatile asset, the Auto C/U Stud and Track Forming Machine is supported by our comprehensive remote service program. Our engineers provide expert video guidance for installation, changeover procedure training, operational optimization, and preventative maintenance.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Auto C/U Stud and Track Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Auto C/U Stud and Track Forming Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
