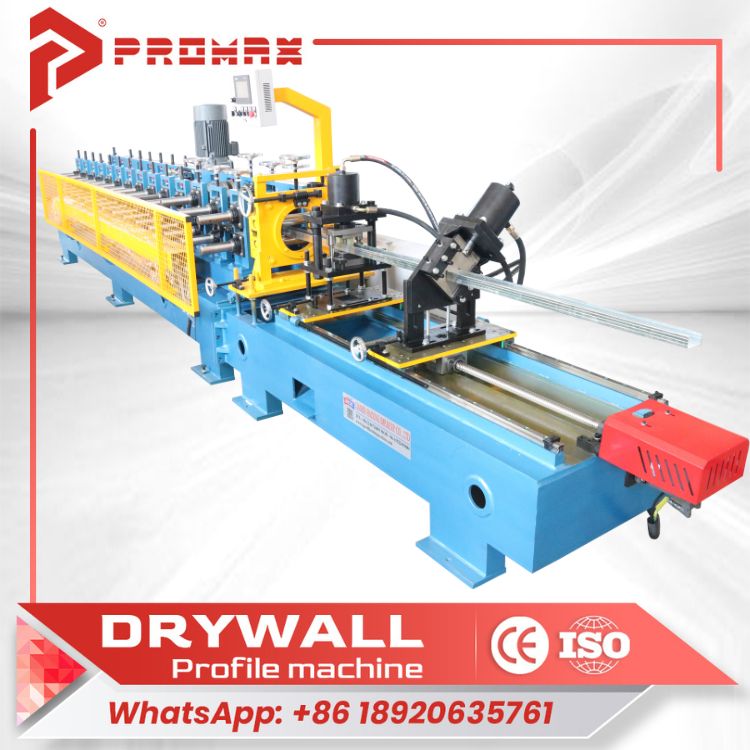

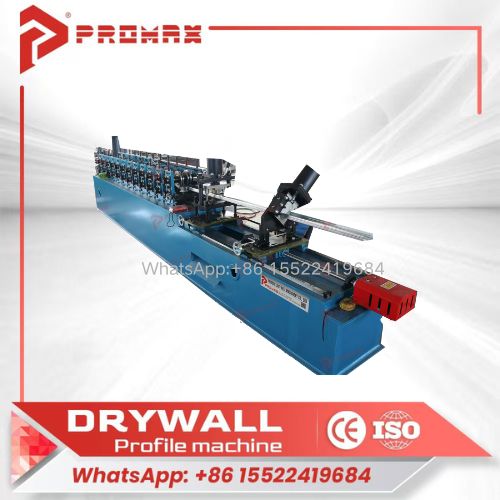

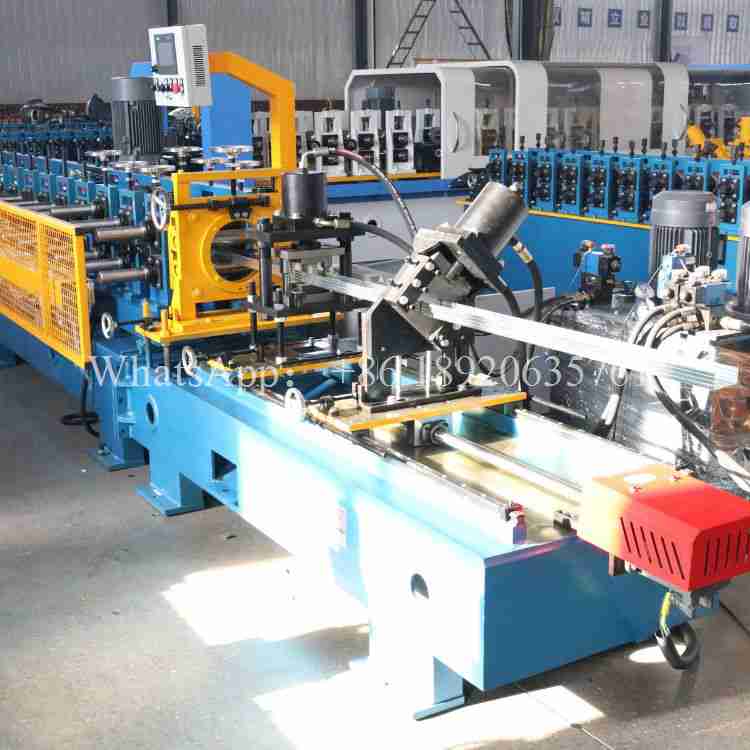

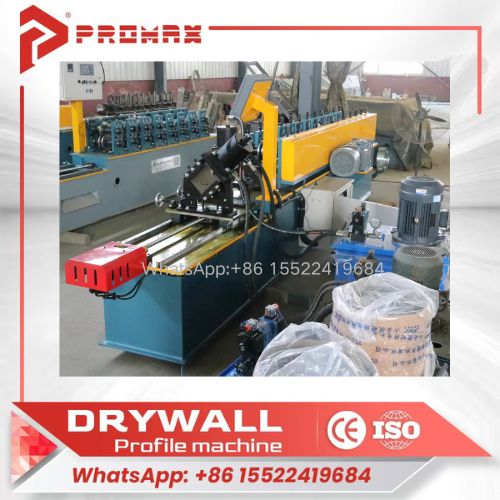

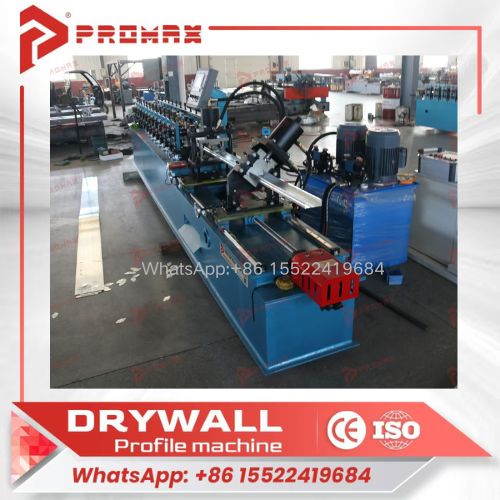

In the fast-paced world of modern construction, efficiency and versatility in component manufacturing are not just advantages—they are necessities. The Full-Auto C/U Stud and Track Machine rises to this challenge as an integrated, turnkey production line engineered to manufacture both C-studs and U-tracks with uncompromising precision and high-volume output. This fully automated system is for producing the essential metal framing skeletons of walls, ceilings, and partitions.
The core strength of the Full-Auto C/U Stud and Track Machine lies in its perfectly synchronized components, each playing a critical role in a seamless workflow.
The process begins with the decoiler, which securely holds and feeds large coils of galvanized steel into the line.

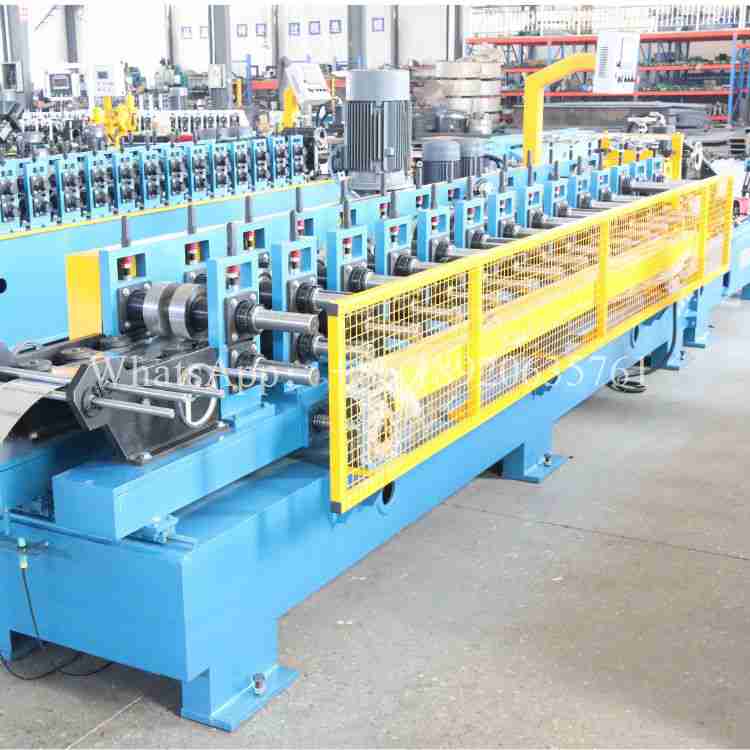

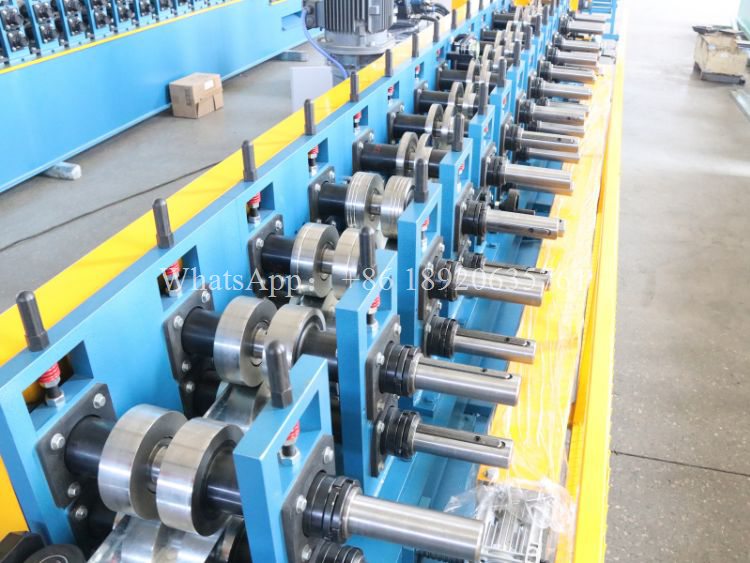

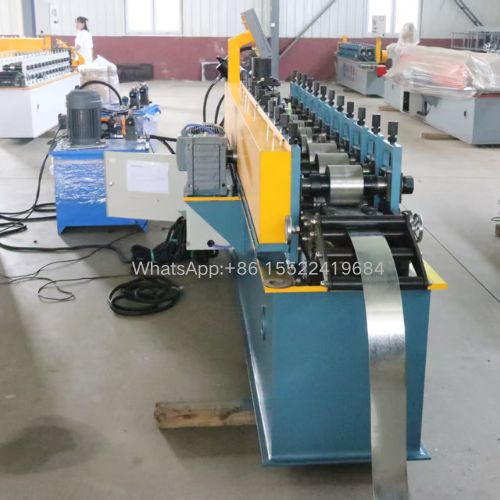

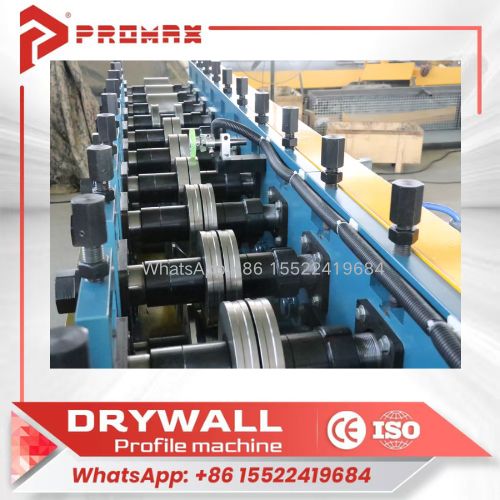

The material then passes through a guided feeding and levelling platform, ensuring flat, consistent entry into the heart of the machine: the precision roll forming station. Here, through a series of computer-designed roller dies, the flat metal strip is progressively shaped into the precise C or U profile in a single, continuous motion.

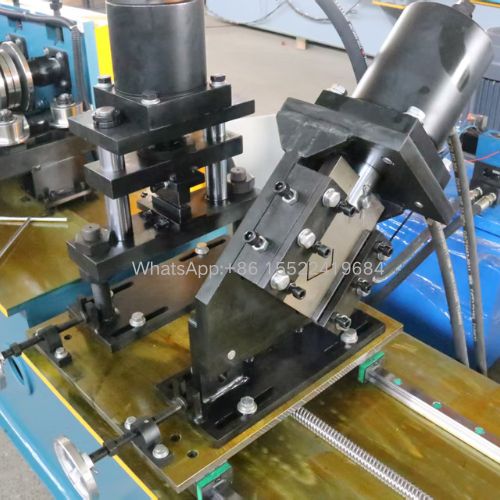

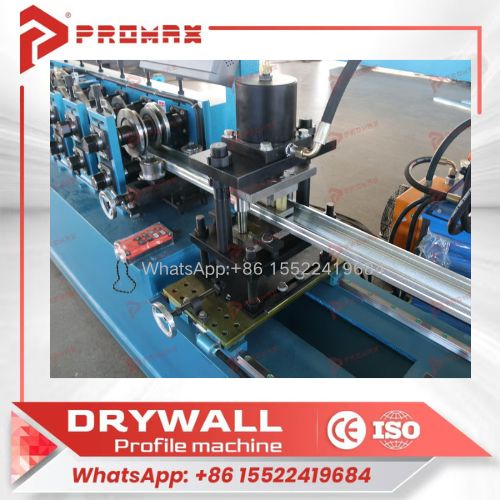

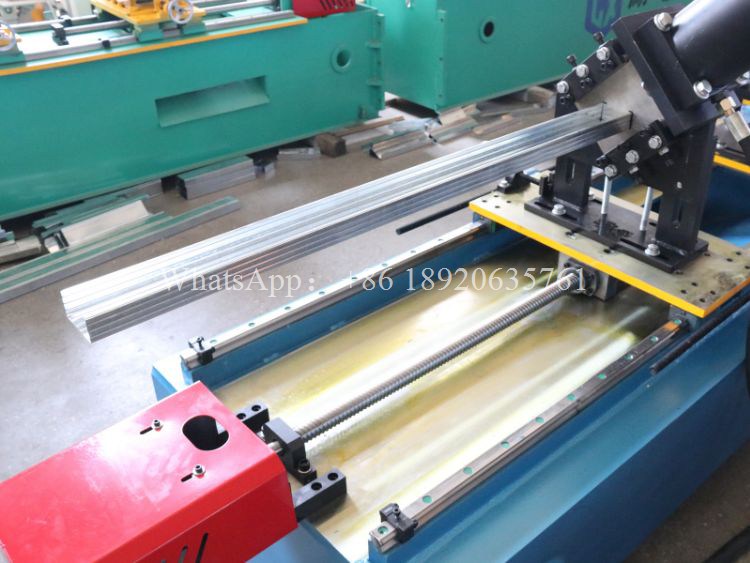

Immediately after forming, a high-accuracy flying cut system, synchronized with the profile speed, delivers clean, burr-free cuts to the exact programmed length.

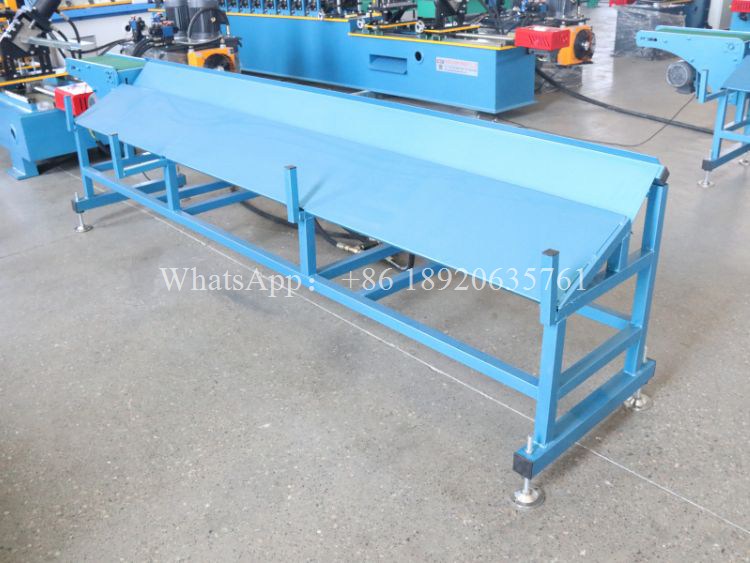

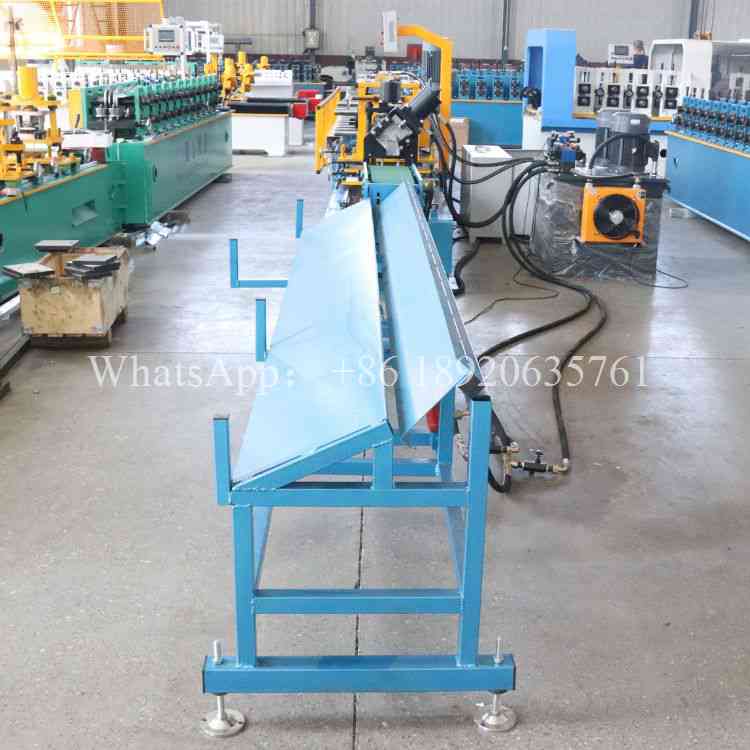

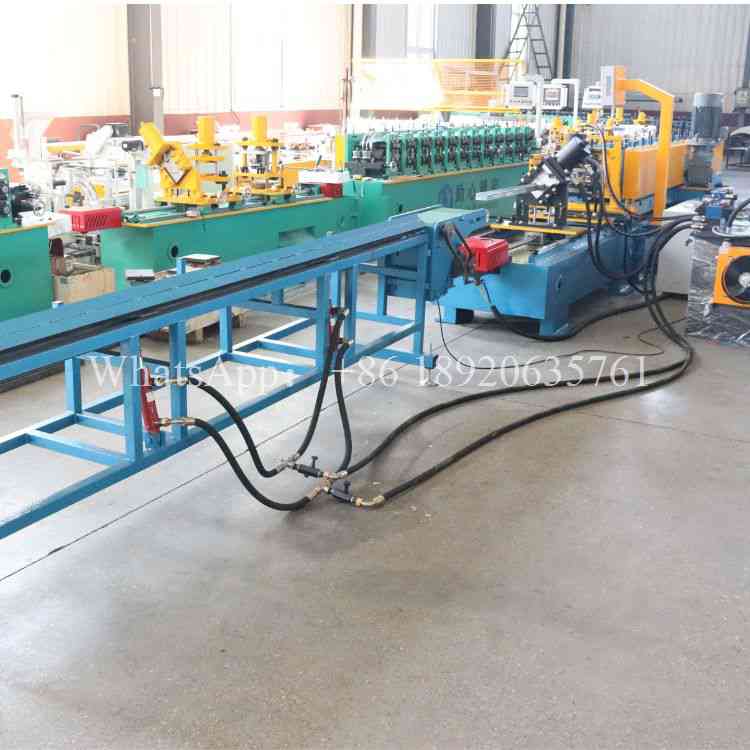

Finally, the finished studs or tracks are neatly stacked and conveyed by the automatic receiving rack, completing a closed-loop, hands-off production cycle.
| Product Name | Full-Auto C/U Stud and Track Machine |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Customization is a fundamental design principle of the Full-Auto C/U Stud and Track Machine. Key specifications, including material entry width and roll forming thickness, can be tailored to meet specific regional standards or project requirements. The entire electrical system, with its operating voltage, can be configured for any market. Furthermore, the multi-language programmable touchscreen allows operators to manage the machine effortlessly in their native language, lowering the barrier to operation and minimizing errors.
Safety and international compliance are integral to its design. The Full-Auto C/U Stud and Track Machine is manufactured and certified in accordance with CE standards. This certification assures customers that the machine meets the stringent health, safety, and environmental protection requirements of the European Union, facilitating its acceptance and safe operation in markets worldwide.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Full-Auto C/U Stud and Track Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Full-Auto C/U Stud and Track Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
