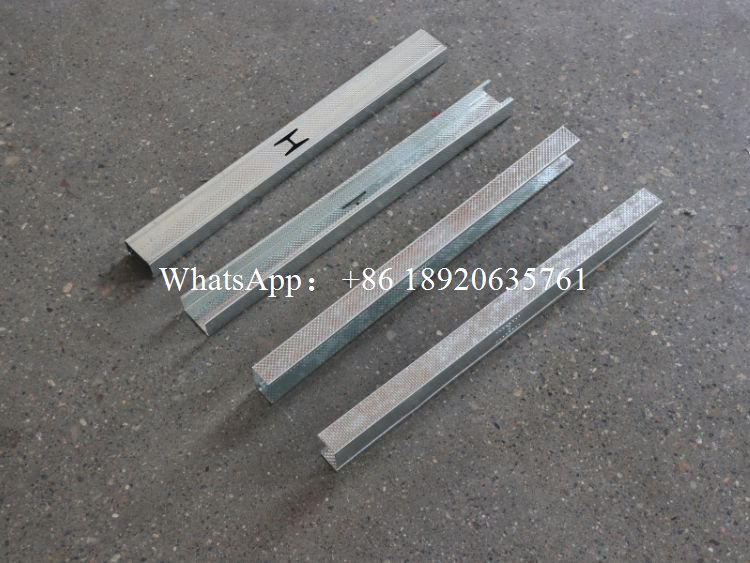

In the competitive construction and drywall manufacturing sector, operational flexibility and efficient capital utilization are paramount. Producing the essential framing components—C-shaped studs and U-shaped tracks—typically requires separate, dedicated machinery. This approach consumes valuable floor space and increases initial investment. A more strategic and cost-effective solution exists. By integrating our advanced dual-purpose system, manufacturers can streamline their operations significantly. Our C/U Steel Stud and Track Roll Forming Machines offer a transformative approach, combining the capability to produce both critical profiles within a single, robust production line. This innovative design is engineered for manufacturers seeking to maximize output versatility while optimizing their production footprint and investment.

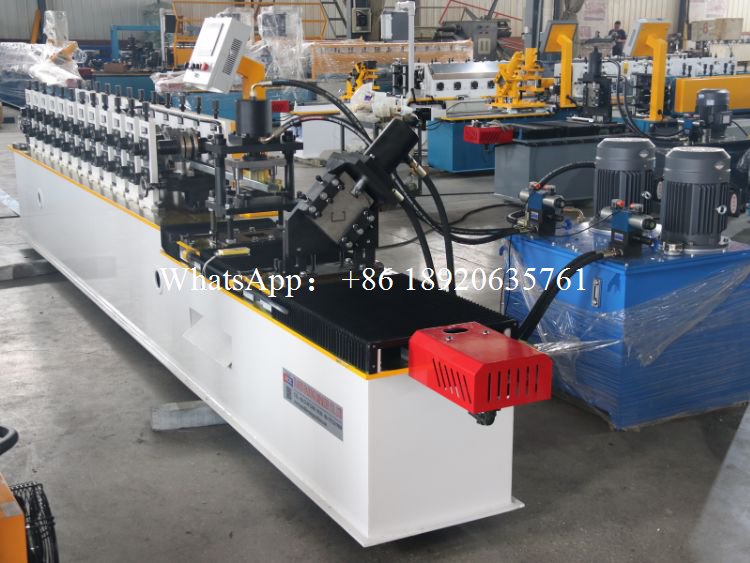

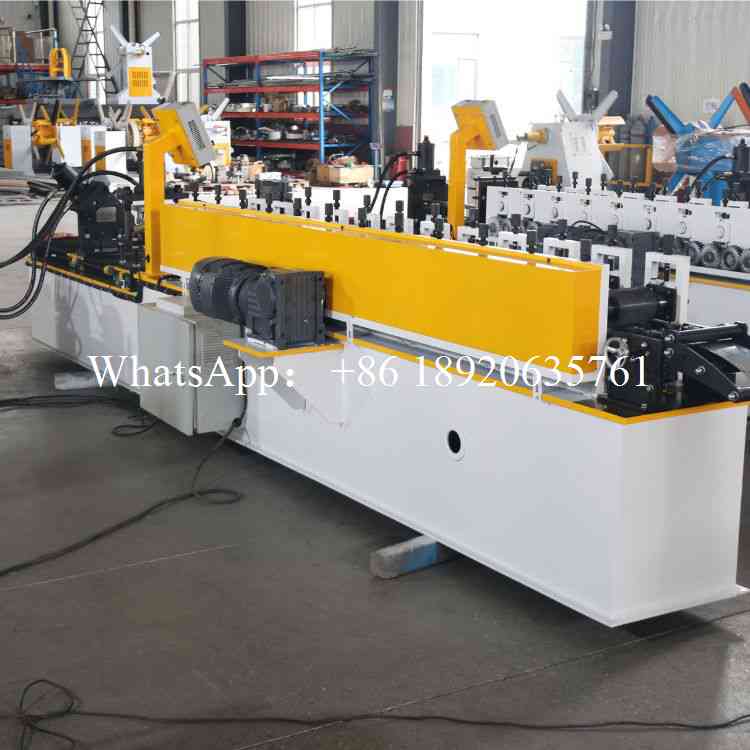

The core operational workflow of our C/U Steel Stud and Track Roll Forming Machines is engineered for seamless, high-efficiency production.

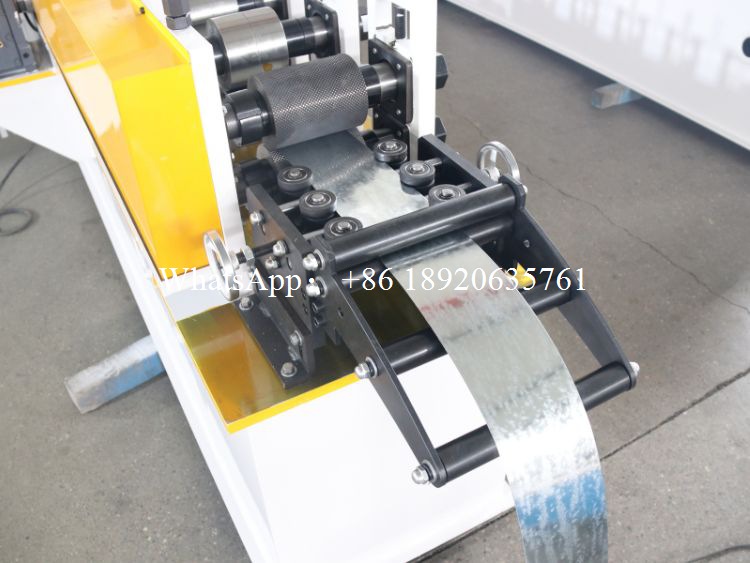

The process begins with a precision decoiler that feeds the steel coil into the system.

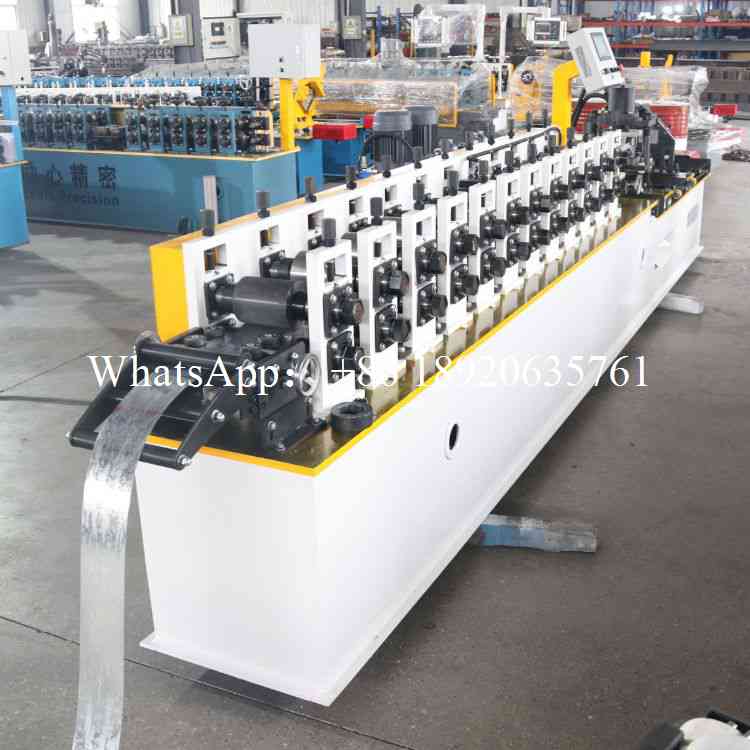

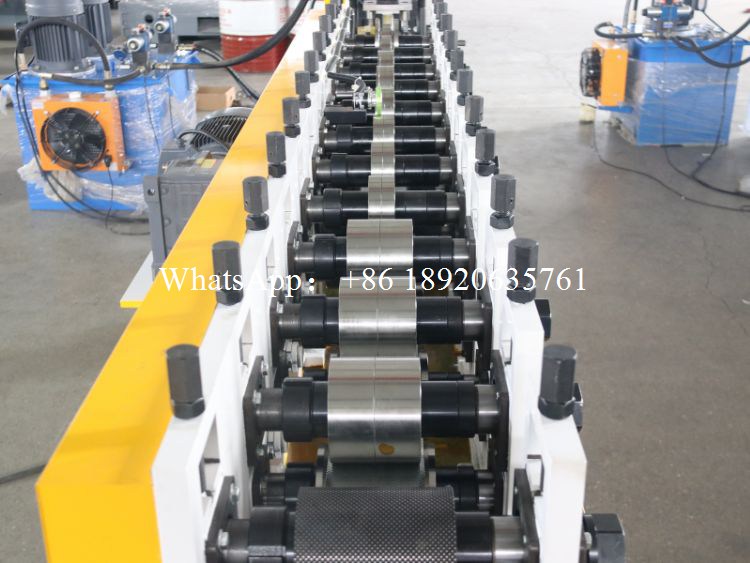

The material then progresses through a heavy-duty, customizable roll forming station. The key to its dual functionality lies in a specifically designed tooling system that allows for the production of both C-studs and U-tracks. Through a controlled process, the machine precisely forms the metal strip into the required profile geometry.

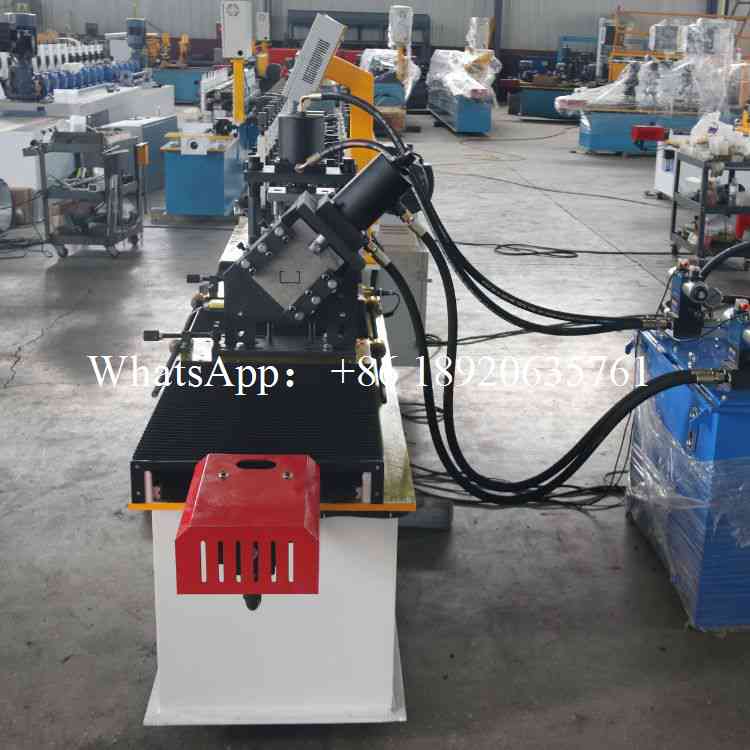

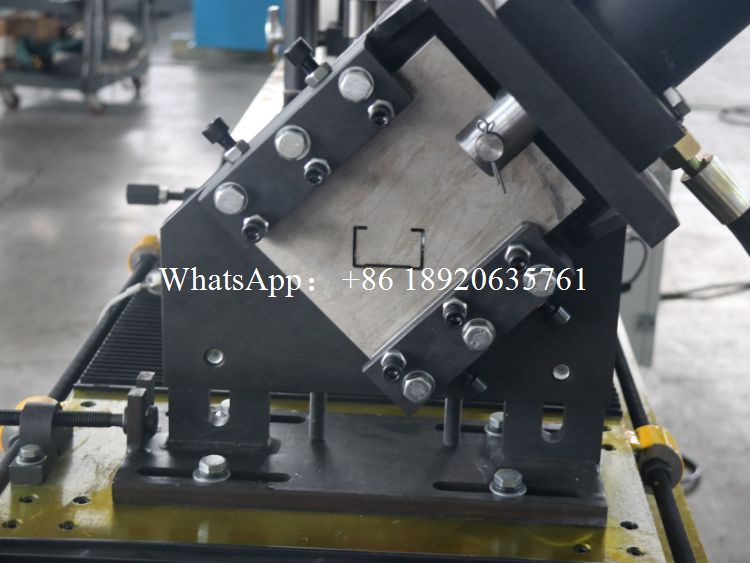

This is followed by a high-accuracy cutting system that shears the continuous profile to exact, pre-set lengths.
The integration of these stages into one automated line for both products exemplifies the operational intelligence of the C/U Steel Stud and Track Roll Forming Machines, ensuring consistent quality and reduced manual handling across your entire product range.
| Product Name | C/U Steel Stud and Track Roll Forming Machines |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Beyond its core versatility, our C/U Steel Stud and Track Roll Forming Machines are built for global application and easy integration. We understand that production requirements vary, which is why the machine offers extensive customization. Key parameters such as material entry width, forming thickness, operational voltage, and the language on the user-friendly touchscreen interface can be tailored to your factory's specific needs. This adaptability ensures that the C/U Steel Stud and Track Roll Forming Machines fit perfectly into your existing workflow. Furthermore, compliance with the highest international standards is guaranteed, as the entire system holds CE certification. This verifies that the C/U Steel Stud and Track Roll Forming Machines meet stringent European health, safety, and environmental protection directives, facilitating market access and ensuring operator safety.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a C/U Steel Stud and Track Roll Forming Machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the C/U Steel Stud and Track Roll Forming Machines can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
