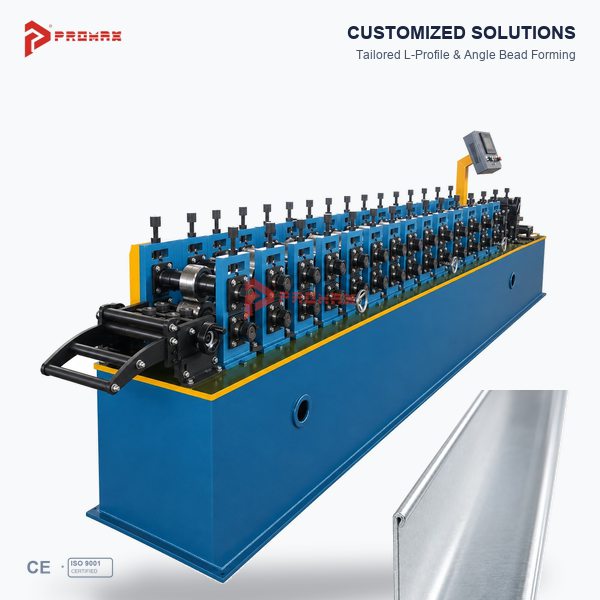

PROMAX L Profile Roll Forming Machine

PROMAX L Profile Roll Forming Machine for Drywall and Ceiling Framing

The PROMAX L profile roll forming machine is designed for manufacturing L-shaped galvanized steel profiles used in drywall framing, suspended ceiling systems and interior construction applications. Through progressive cold roll forming technology, the machine transforms flat steel strip into accurate L-shaped metal keel profiles according to customer requirements.

L-shaped metal profiles are commonly used as perimeter supports, edge framing components and connection accessories in compatible ceiling and drywall systems. Their simple angle-shaped design allows them to be integrated into different interior framing arrangements.

PROMAX provides customized L-shaped metal profile forming equipment for manufacturers of drywall accessories, ceiling framing products and light gauge steel construction materials.

L-Shaped Metal Keel Manufacturing Machine

An L-shaped metal keel making machine is specialized cold roll forming equipment used to manufacture angle-shaped metal profiles from galvanized steel coils.

The equipment progressively bends the steel strip through a series of forming roller stations until the required L-shaped cross-section is achieved.

Depending on the approved profile drawing, the finished product can have different leg widths, material thicknesses and edge details.

The machine is suitable for manufacturers producing metal ceiling perimeter profiles, drywall edge framing components and other compatible L-shaped light steel profiles.

Precision Cold Roll Forming Technology

The PROMAX L profile roll forming machine uses dedicated forming rollers to progressively shape galvanized steel strip into the required angle profile.

Each roller station performs a controlled bending operation, gradually forming the required profile geometry.

The forming arrangement is developed according to the approved L-profile dimensions, steel thickness and material properties.

Accurate material guidance and roller alignment help maintain consistent dimensions during continuous production.

Customized L-Shaped Ceiling and Drywall Profiles

Different construction markets require different L-shaped metal framing profiles.

PROMAX can evaluate customized equipment for manufacturing suitable ceiling angle profiles, drywall perimeter profiles and other L-shaped metal accessories.

Important customization parameters include the two leg dimensions, bend angle, material thickness, incoming coil width and required cutting length.

Additional edge details or specialized profile features can be evaluated according to the customer's technical drawing.

Different profile sizes may require dedicated forming tooling or an approved adjustment arrangement.

Galvanized Steel Material Processing

Galvanized steel is commonly used for manufacturing metal ceiling and drywall framing accessories.

The zinc coating provides corrosion protection suitable for specified indoor construction environments.

The galvanized L profile machine is configured according to the required steel thickness, material grade, incoming coil width and coating characteristics.

PROMAX evaluates the customer's material specifications to determine a suitable forming roller design and machine configuration.

Automatic L Profile Production Process

A typical L-shaped metal keel manufacturing process includes the following stages:

1. Decoiling: Galvanized steel coil is loaded onto the decoiler and supplied to the production line.

2. Material Guiding: The incoming steel strip is aligned before entering the forming section.

3. Roll Forming: Successive forming rollers gradually bend the steel strip into the required L-shaped profile.

4. Length Cutting: The formed profile is cut to the specified finished length.

5. Collection: Completed L-shaped profiles are collected, inspected and prepared for packaging.

The final equipment arrangement depends on the approved production configuration.

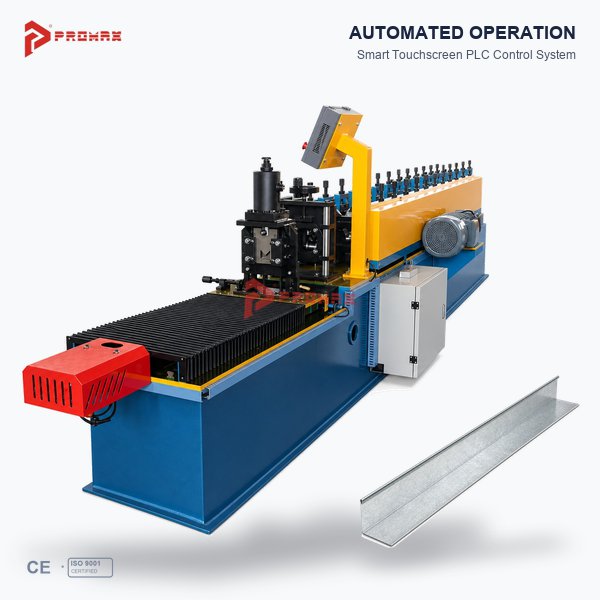

PLC Control and Automatic Cutting Options

PROMAX L-shaped metal profile forming equipment can be configured with PLC-based control and automatic length cutting functions.

Depending on the selected machine configuration, operators may enter the required cutting length and production quantity through the control interface.

Automatic cutting supports repeated production of L-shaped profiles for different customer orders.

The cutting arrangement is selected according to the profile geometry, material thickness and production requirements.

Applications of L-Shaped Metal Keel Profiles

L-shaped galvanized steel profiles are used in various interior construction and light metal framing applications.

Typical applications include suspended ceiling perimeter framing, drywall edge supports, interior wall accessories and compatible metal framing systems.

These profiles may be used in residential buildings, commercial offices, hotels, shopping centers and interior renovation projects.

The required L-profile dimensions and installation methods depend on the specified ceiling or drywall system.

Advantages of PROMAX L Profile Forming Equipment

A dedicated L profile roll forming machine supports continuous manufacturing of approved L-shaped metal keel profiles.

Progressive cold forming helps maintain repeatable profile geometry when the machine is correctly configured and operated.

Customized forming rollers allow manufacturers to develop profiles according to their local construction requirements.

PLC control and automatic cutting options can support production management and consistent finished lengths.

How to Choose an L Profile Roll Forming Machine

Before purchasing an L-shaped metal keel forming machine, customers should confirm the required profile dimensions and material specifications.

Important information includes the L-profile drawing, leg widths, bend angle, galvanized steel thickness, incoming coil width and finished cutting length.

Customers should also consider expected production capacity, factory space, electrical supply and finished product handling requirements.

PROMAX can review these requirements and prepare a customized machine configuration proposal.

Why Choose PROMAX?

PROMAX specializes in roll forming equipment for drywall framing profiles, metal studs, ceiling channels and other light gauge steel construction products.

Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.

We develop customized production solutions according to the required profile geometry, steel material specifications and manufacturing objectives.

Request an L Profile Roll Forming Machine Quotation

Looking for a reliable L profile roll forming machine for your drywall or ceiling framing manufacturing business?

Send PROMAX your required L-shaped profile drawing, dimensions, galvanized steel thickness, material grade, incoming coil width, cutting length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment proposal and quotation.

Contact PROMAX today to request your L-shaped metal keel forming machine price.
