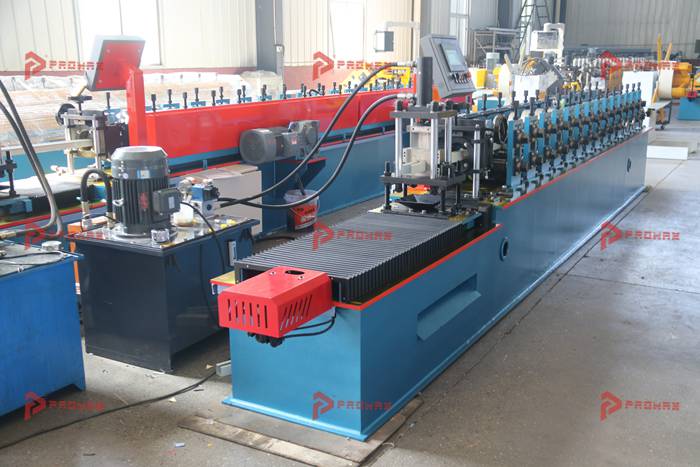

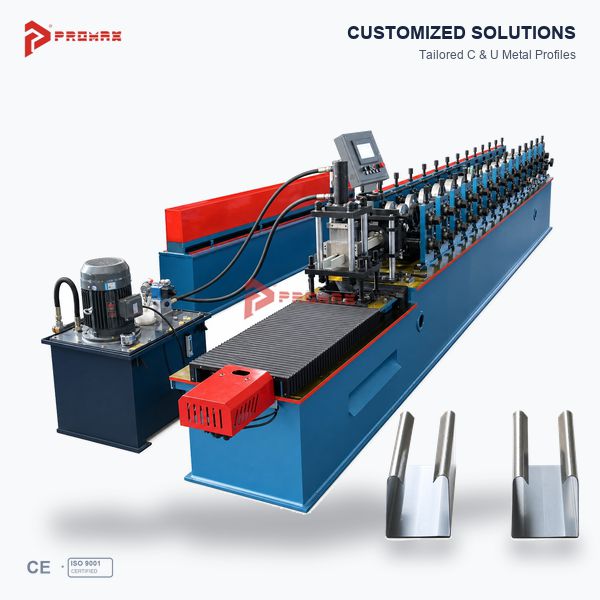

C Channel Forming Machine for Metal Stud Manufacturing

PROMAX C Channel Forming Machine for Metal Stud Manufacturing

The PROMAX C Channel Forming Machine is a specialized cold roll forming solution for producing galvanized steel C studs used in drywall partitions, interior wall systems and light gauge metal framing. Designed around the customer's required profile drawings, the machine progressively transforms flat steel strip into accurate C-shaped framing profiles for construction material manufacturing.

For drywall profile manufacturers, consistent C stud dimensions are essential for efficient assembly and compatibility with matching U tracks. PROMAX focuses on developing practical forming solutions that combine dedicated roller tooling, reliable material guidance and configurable production controls to support repeatable manufacturing.

Whether you are supplying metal studs to local building material distributors or expanding production for international construction projects, PROMAX can evaluate a C channel forming solution based on your profile dimensions, steel specifications and production requirements.

How the C Channel Forming Machine Works

The C channel forming machine uses progressive cold roll forming to manufacture metal studs from suitable galvanized steel coils. Instead of bending the entire profile in a single operation, the steel strip passes through a series of forming stations that gradually develop the required cross-section.

During this process, the rollers progressively shape the profile web, flanges and return lips. The roller arrangement is developed according to the approved drawing and the forming characteristics of the selected steel material.

Accurate material guidance and appropriate forming station alignment are important for maintaining consistent profile geometry. The finished C studs can then be cut to the required lengths using a compatible cutting system.

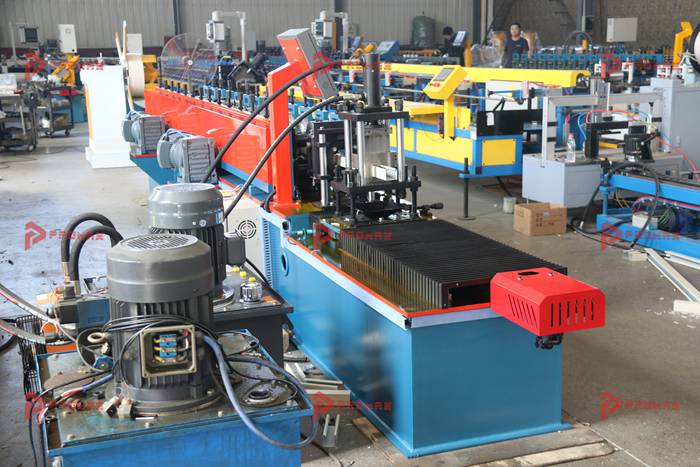

Customized C Stud Sizes for Different Drywall Markets

Drywall framing standards and preferred profile dimensions vary between countries and construction markets. A C stud used in one region may have different web dimensions, flange heights or return lip details from a profile used elsewhere.

PROMAX develops customized C stud roll forming equipment based on customer-supplied drawings. The machine design can be evaluated for the required web width, flange height, lip dimensions, steel thickness and finished profile length.

Customers who need to manufacture several C stud sizes should identify the complete range of required profiles during the equipment planning stage. Depending on the design, different dimensions may require suitable machine adjustments or additional forming tooling.

This drawing-based approach helps manufacturers develop profiles that match their intended drywall framing systems and local market requirements.

Galvanized Steel Processing for Drywall Studs

Galvanized steel is commonly used for manufacturing metal studs because it offers a combination of formability, dimensional stability and a protective zinc coating suitable for many interior construction applications.

The forming process must be matched to the selected material. Important specifications include steel thickness, yield strength, incoming strip width and coating characteristics.

PROMAX reviews these parameters when evaluating roller geometry, material feeding arrangements and the overall machine configuration. Suitable material selection and controlled forming conditions help manufacturers produce consistent C-shaped profiles while considering the required surface quality.

Continuous C Stud Manufacturing Process

A typical C stud production process consists of several coordinated stages, beginning with steel coil preparation and ending with finished profile collection.

Coil Feeding: A suitable decoiler supports the galvanized steel coil and supplies strip material to the production line.

Material Guidance: The strip enters a guiding section that helps maintain proper alignment before forming.

Progressive Roll Forming: Dedicated rollers gradually shape the steel into the approved C stud cross-section.

Length Cutting: A compatible cutting system produces finished profiles according to the required lengths.

Product Collection: Completed studs are inspected and prepared for stacking, packaging or delivery.

The equipment arrangement can be adapted to the customer's manufacturing objectives and approved technical requirements.

PLC Control and Automatic Length Cutting Options

PROMAX C stud production equipment can be configured with PLC-based control systems to support coordinated operation and production management.

Depending on the approved configuration, operators may enter required profile lengths and production quantities through a control interface. Automatic cutting options can help manufacturers fulfill orders involving different finished stud lengths.

The cutting arrangement is selected according to the profile geometry, steel thickness and intended manufacturing process. Electrical components and control functions are confirmed during technical planning.

C Stud Applications in Drywall Construction

C-shaped metal studs are widely used as vertical framing members in compatible drywall partition systems. They are commonly assembled with matching U tracks to form a supporting framework for gypsum boards and other approved wall materials.

Typical applications include residential interior partitions, commercial office fit-outs, hotel renovation projects, retail spaces and prefabricated interior wall assemblies.

The required C stud dimensions, steel thickness and installation spacing depend on the selected framing system and project requirements. Manufacturers should confirm compatibility with the intended tracks, wall boards, fasteners and accessories.

Manufacturing Advantages for Drywall Profile Suppliers

A dedicated metal stud making machine enables building material manufacturers to produce C-shaped framing profiles according to their own approved specifications.

Continuous roll forming is suitable for repeated production of a consistent cross-section, while configurable cutting arrangements support different customer length requirements.

For businesses serving multiple construction projects, a customized C stud manufacturing solution can support a more organized production process and a product range aligned with local market demand.

Actual production capacity and forming performance depend on the machine configuration, material properties, profile dimensions and operating conditions.

Machine Customization and Optional Functions

PROMAX evaluates each C channel forming machine according to the required finished product rather than applying one fixed configuration to every customer.

Available engineering options may include dedicated C-profile forming rollers, suitable dimension adjustment arrangements, PLC control, automatic length cutting and compatible coil handling equipment.

When a project requires punched openings or other special processing functions, these can be evaluated as separate customization requirements. Such functions are not assumed to be included in a standard machine configuration.

Providing detailed profile drawings and production specifications allows the technical team to evaluate the appropriate forming and cutting arrangements before manufacturing.

Profile Accuracy and Production Quality Inspection

Consistent profile dimensions are important for drywall studs because the finished components must fit the intended framing system.

Quality inspection can include checking the web width, flange height, return lip dimensions, overall straightness, finished length and visible surface condition.

Sample profiles should be compared with the approved technical drawings before regular production. Inspection procedures can also help identify material feeding or forming variations during manufacturing.

For manufacturers supplying standardized framing products, maintaining a clear reference drawing and consistent inspection method supports repeatable production quality.

What Information Is Needed for a Machine Quotation?

To select a suitable C channel forming machine, customers should provide the required C stud cross-sectional drawing and the main material specifications.

Useful information includes profile dimensions, galvanized steel thickness, incoming coil width, finished product length and expected production capacity.

Customers may also provide details about factory space, electrical supply, preferred control components and any special manufacturing requirements.

With these specifications, PROMAX can evaluate the proposed equipment arrangement and prepare a customized technical quotation.

Why Choose PROMAX for C Stud Roll Forming Equipment?

PROMAX focuses on roll forming machinery for drywall profiles, metal studs, tracks and related light gauge steel framing products.

Our equipment solutions are developed around customer profile drawings, material requirements and manufacturing objectives. Services include profile evaluation, machine configuration, manufacturing, factory testing and technical assistance.

From establishing a new drywall profile workshop to expanding an existing metal framing production facility, PROMAX can help customers evaluate suitable C stud manufacturing equipment.

Request a PROMAX C Channel Forming Machine Quote

Are you looking for a C channel forming machine to manufacture galvanized steel drywall studs?

Send PROMAX your required C stud drawing, material thickness, profile dimensions, finished lengths and target production capacity.

Our team can review your project requirements and prepare a customized machine proposal with suitable forming and cutting options.

Contact PROMAX today to discuss your C stud manufacturing project and request a quotation.
