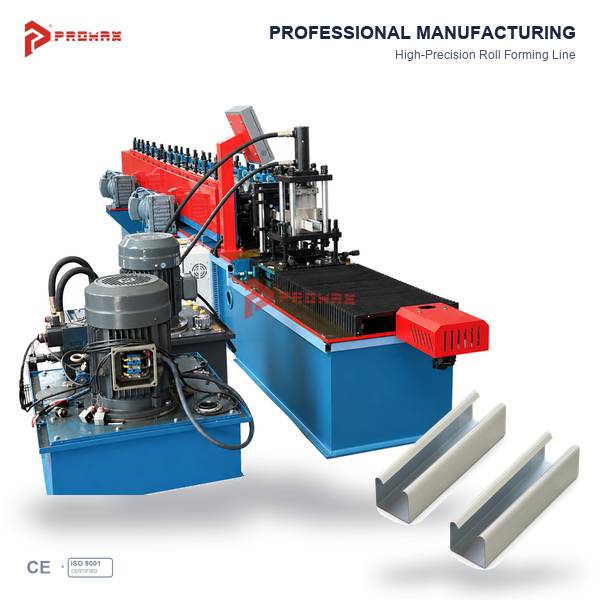

C Channel Forming Machine for Metal Studs

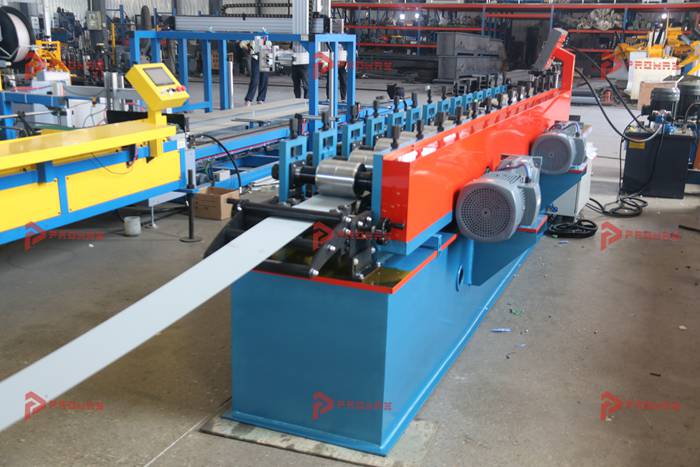

PROMAX C Channel Forming Machine for Drywall Metal Stud Production

The PROMAX C Channel Forming Machine is designed for manufacturing C-shaped galvanized steel profiles used in drywall partitions, interior wall framing and light gauge steel construction systems. Through progressive cold roll forming technology, the equipment transforms flat steel coils into finished C profiles according to the required dimensions and approved profile drawings.

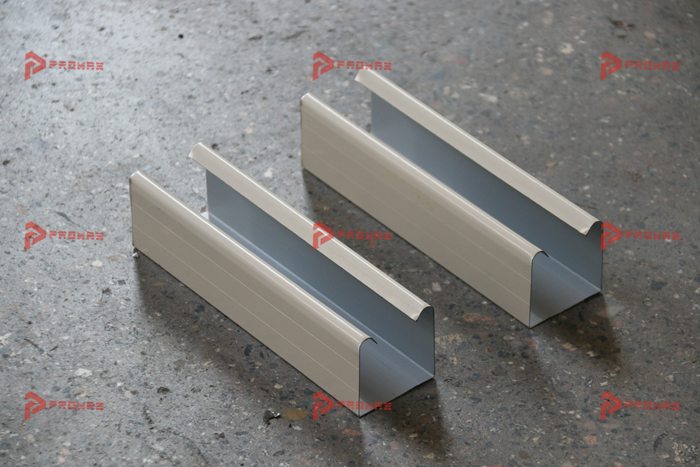

C-shaped metal studs are essential components in modern drywall construction. They are commonly used as vertical framing members in non-load-bearing partition walls and other compatible interior framing systems. Accurate profile dimensions help manufacturers supply consistent products for construction and installation.

PROMAX provides customized C channel forming machines for drywall profile manufacturers, building material suppliers and metal framing businesses. Equipment configurations can be developed according to the customer's required profile geometry, steel specifications and production objectives.

Precision C Channel Roll Forming Technology

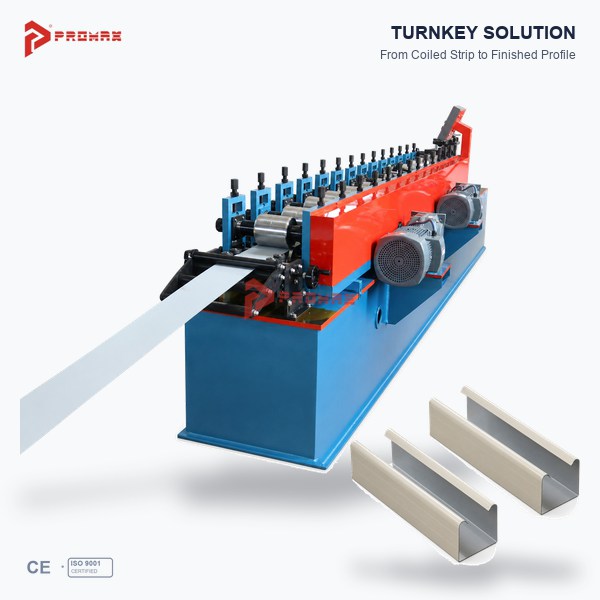

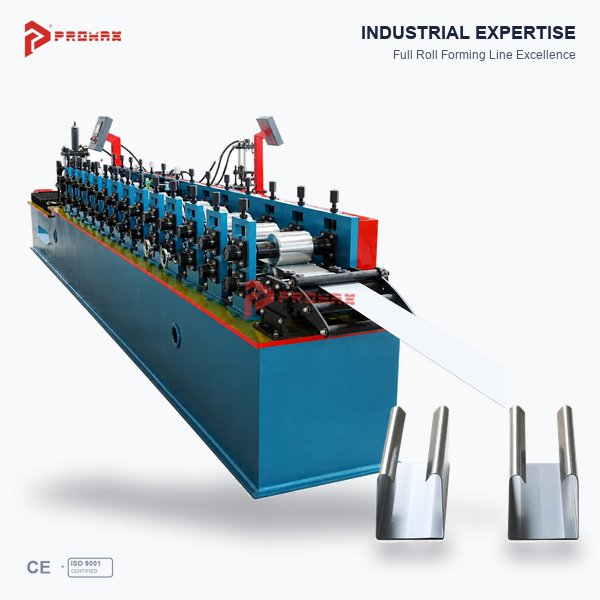

The C channel forming machine uses a series of specially designed forming rollers to progressively bend galvanized steel strip into a C-shaped profile.

Each forming station performs a controlled bending operation, gradually developing the web, flanges and return lips according to the approved C stud design.

The progressive forming process helps maintain the required profile geometry and supports consistent production when the machine is correctly configured for the selected material.

Roller design, material guidance and machine alignment are important factors affecting finished profile dimensions and surface quality.

Customized C Stud Profile Dimensions

Different drywall construction markets require different C stud dimensions and framing specifications.

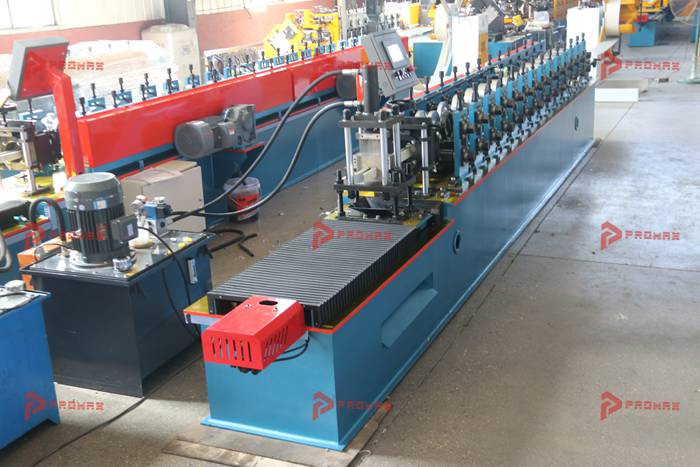

PROMAX can evaluate customized forming equipment based on customer-supplied profile drawings, including web width, flange height, return lip dimensions and material thickness.

The forming tooling is developed according to the required profile geometry and material properties.

Customers requiring multiple C stud dimensions should confirm whether the proposed machine supports suitable adjustments or requires additional tooling.

Final manufacturing capabilities depend on the approved equipment configuration.

Galvanized Steel C Stud Manufacturing

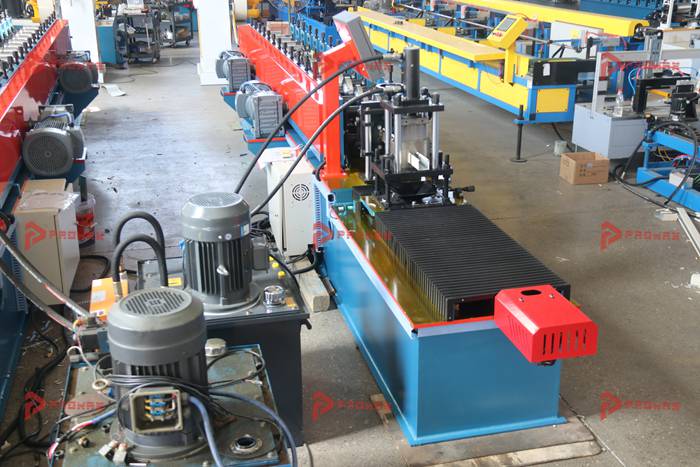

The PROMAX C channel forming machine is primarily intended for suitable galvanized steel materials commonly used in drywall framing applications.

Galvanized steel profiles offer a practical solution for many interior framing systems where lightweight construction and dimensional consistency are important.

Important material parameters include sheet thickness, yield strength, incoming coil width and coating characteristics.

These specifications influence the forming roller design, material feeding arrangement and overall equipment configuration.

PROMAX reviews customer material requirements before recommending a suitable C stud manufacturing solution.

Continuous C Profile Production Process

A typical C stud manufacturing process begins with loading the selected galvanized steel coil onto a decoiler.

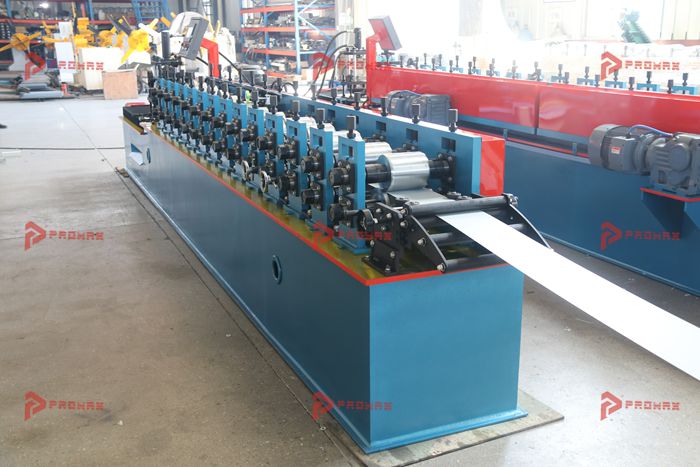

The steel strip passes through a feeding and guiding section before entering the roll forming stations.

Successive rollers gradually shape the strip into the required C-shaped cross-section.

After the forming operation, a compatible cutting system can cut the finished profiles to the specified length.

The completed C studs are collected, inspected and prepared for packaging or transportation.

Additional equipment functions can be evaluated according to customer production requirements.

Automatic Length Cutting and PLC Control

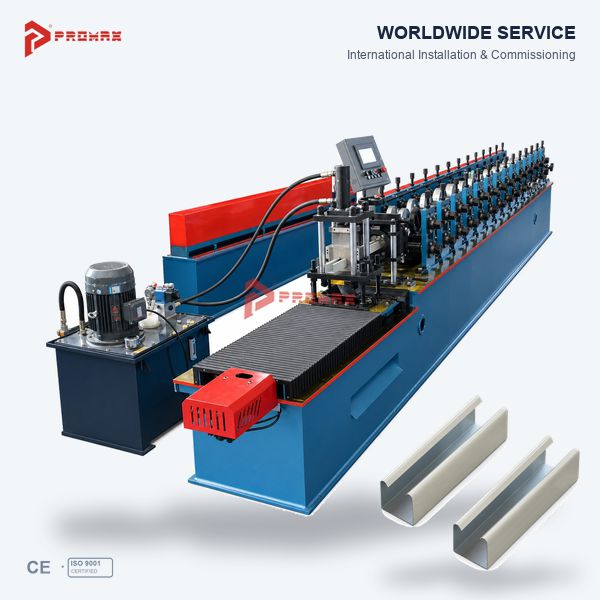

The PROMAX C channel forming machine can be configured with PLC-based production control and automatic cutting functions.

Depending on the approved machine design, operators may enter the required profile length and production quantity through a control interface.

Automatic cutting supports the manufacture of C studs in different lengths for construction projects and customer orders.

The cutting system is selected according to the profile dimensions, material specifications and intended production arrangement.

Actual control functions, cutting methods and electrical component configurations are confirmed in the final technical proposal.

Applications of C-Shaped Metal Studs

C-shaped galvanized steel studs are widely used in compatible drywall partition and interior framing systems.

Typical applications include residential interior walls, commercial office partitions, hotel renovation projects, shopping centers and prefabricated interior wall assemblies.

In drywall framing systems, C studs are commonly installed with compatible U tracks to create the supporting framework for wall panels.

The required stud dimensions, spacing and material specifications depend on the selected framing system and project requirements.

Manufacturers should confirm compatibility with the intended drywall boards, tracks, fasteners and installation accessories.

Benefits for Drywall Profile Manufacturers

A dedicated metal stud making machine enables manufacturers to produce C-shaped steel profiles according to their approved product specifications.

Continuous roll forming supports repeated manufacturing of the same profile when the machine is correctly configured for the selected material and geometry.

Manufacturers can organize production according to customer orders, required profile lengths and local construction market demand.

Customized equipment also allows suppliers to develop C stud products that match their intended drywall framing systems.

Actual production performance depends on the equipment design, steel properties, profile dimensions and operating conditions.

Machine Configuration and Customization

PROMAX develops C channel forming equipment according to the customer's required finished profile and manufacturing objectives.

Customization options can include dedicated forming rollers, profile dimension adjustments where technically supported, PLC control, automatic length cutting and suitable coil handling equipment.

Optional punching or other special processing functions can be evaluated separately when required by the customer.

Each equipment configuration is determined according to the approved profile drawings, material specifications and production requirements.

Quality Inspection for Finished C Stud Profiles

Dimensional consistency is important for metal studs used in drywall construction systems.

Recommended inspection items include web width, flange height, return lip dimensions, finished length, straightness and visible surface condition.

Sample profiles should be checked against the approved technical drawings before regular production.

Consistent inspection procedures help manufacturers identify dimensional variations and maintain product quality.

How to Choose a C Channel Forming Machine

Before purchasing a C stud roll forming machine, customers should confirm the required finished profile and production conditions.

Important information includes the C stud cross-sectional drawing, steel thickness, incoming coil width, required profile length and expected production capacity.

Customers should also consider factory space, electrical supply, coil handling arrangements and finished product collection requirements.

PROMAX can review these specifications and prepare a suitable equipment proposal.

Why Choose PROMAX?

PROMAX specializes in roll forming equipment for drywall profiles, metal studs, tracks and light gauge steel framing products.

We provide customized machine solutions based on customer drawings, material specifications and manufacturing objectives.

Our services cover profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.

Whether you are establishing a new drywall profile factory or expanding an existing metal framing production business, PROMAX can evaluate a suitable C stud manufacturing solution.

Request a PROMAX C Channel Forming Machine Quotation

Looking for a reliable C channel forming machine for your drywall metal stud manufacturing business?

Send PROMAX your C stud profile drawing, required dimensions, galvanized steel thickness, incoming coil width, finished profile length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment proposal and quotation.

Contact PROMAX today to discuss your C channel roll forming project.
