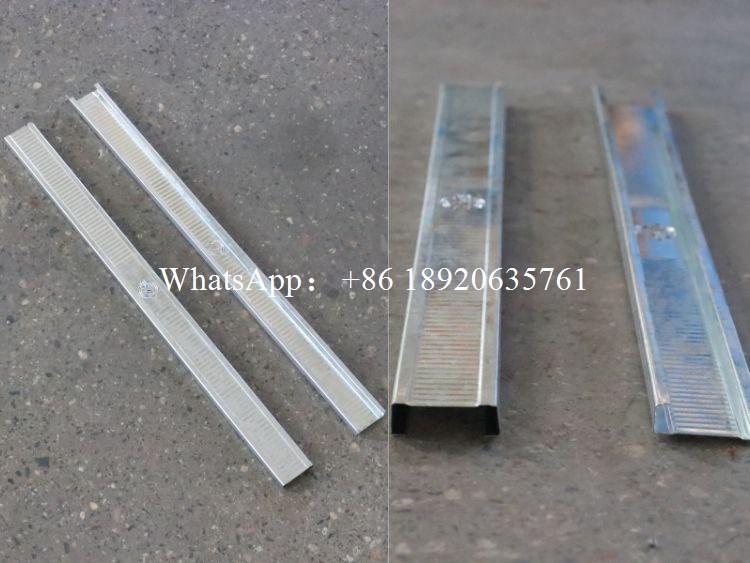

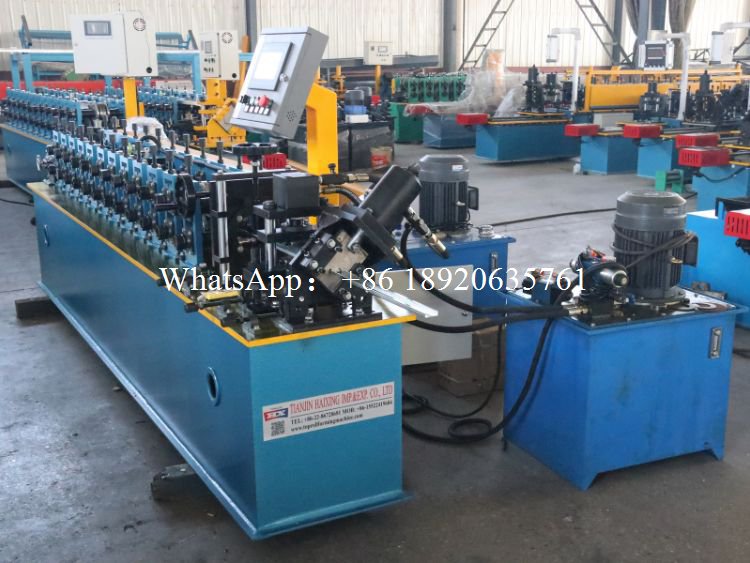

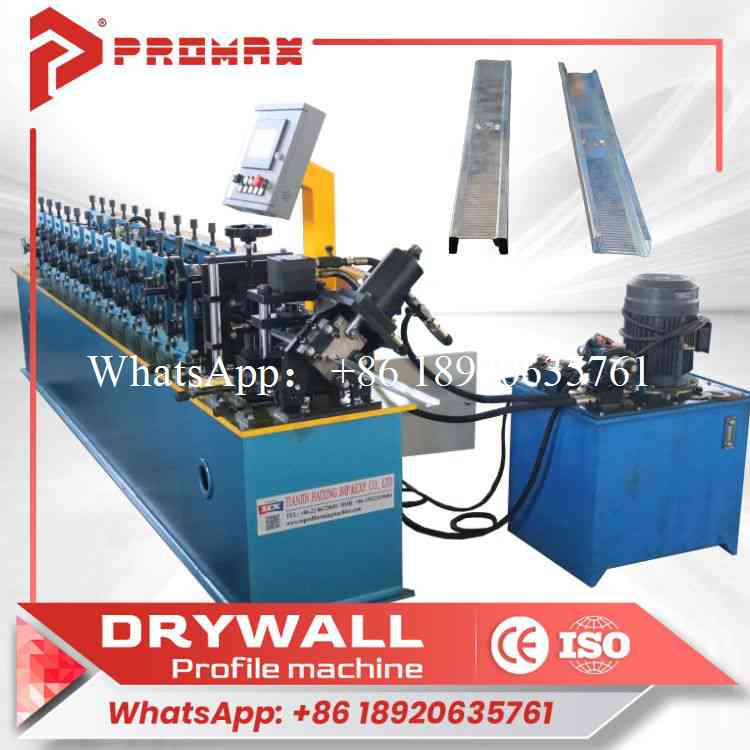

In the competitive and fast-paced construction industry, efficiency, precision, and flexibility in manufacturing are non-negotiable for success. For businesses specializing in light gauge steel framing, the ability to reliably produce high-quality C-metal studs is fundamental. This core component forms the skeleton of modern walls and ceilings, demanding consistent dimensional accuracy and structural integrity. To achieve this at scale, a dedicated, automated production solution is essential. The Professional C Metal Stud Roll Forming Machine represents the industry standard for such production, offering a robust and intelligent system designed to transform raw steel coil into perfect C-studs with exceptional speed and repeatability.

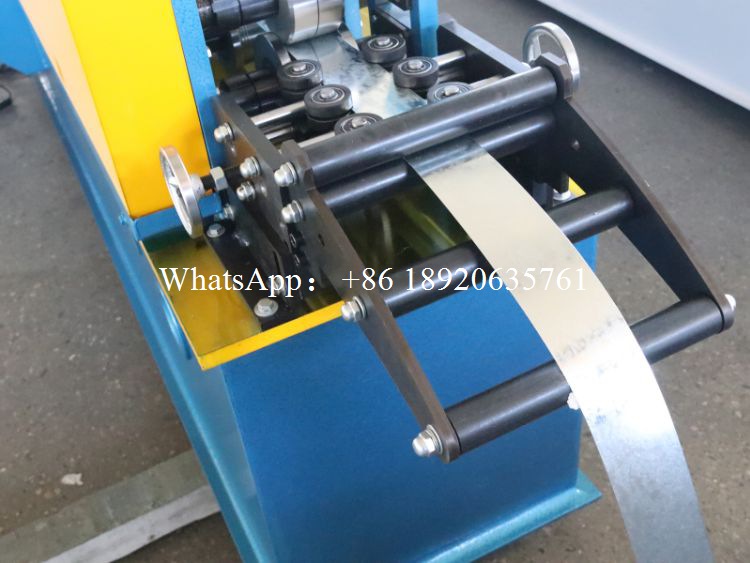

The process begins with a precision decoiler that consistently feeds the metal strip into the system.

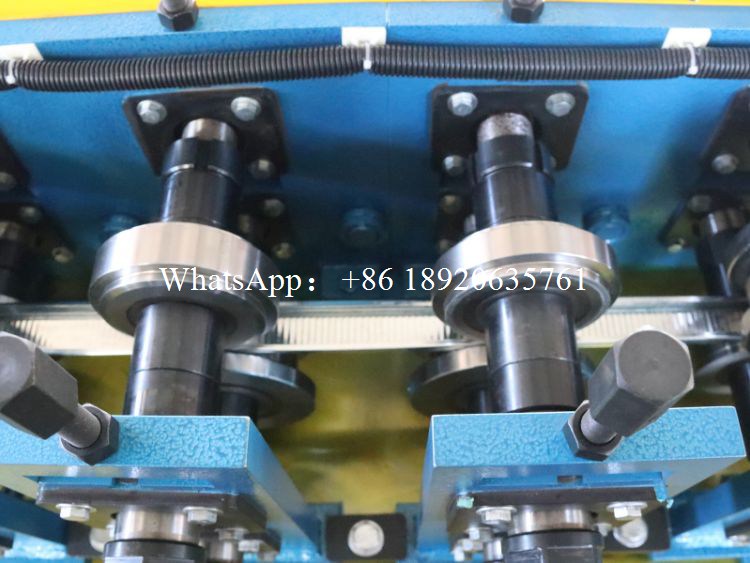

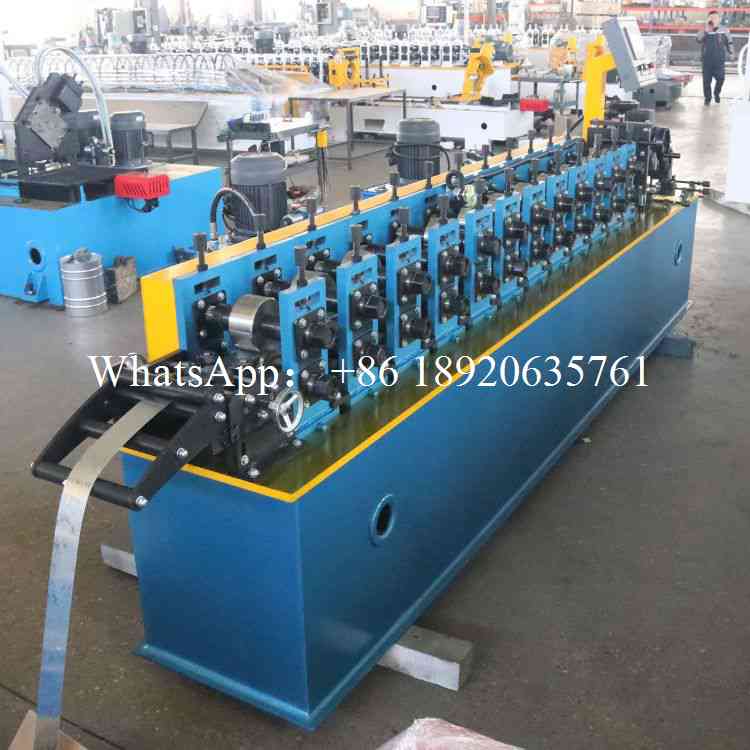

The material then progresses into the heart of the machine: a series of meticulously calibrated roll forming stations. Here, through a cold-forming process, the flat steel is gradually and precisely shaped into the definitive C-profile without compromising the material's strength.

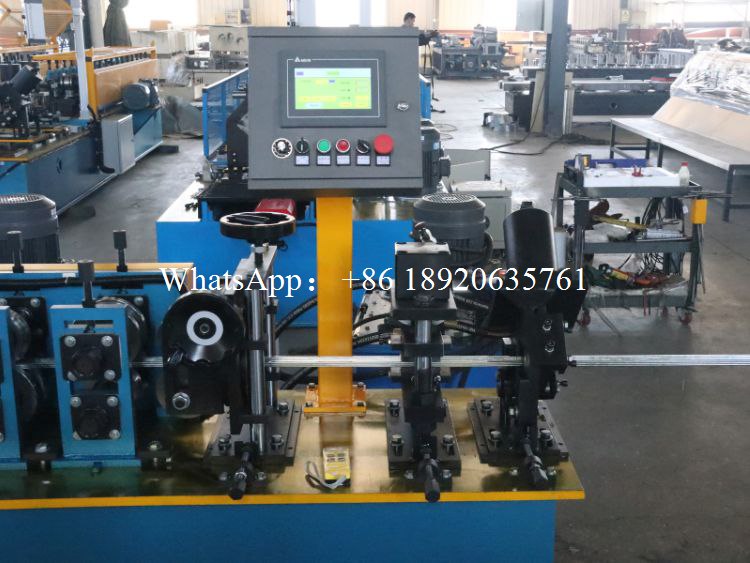

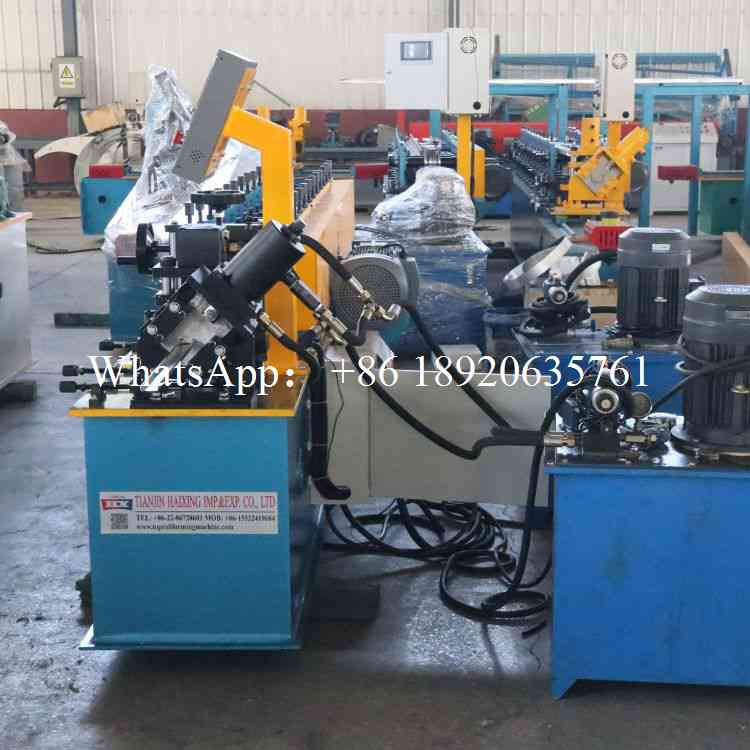

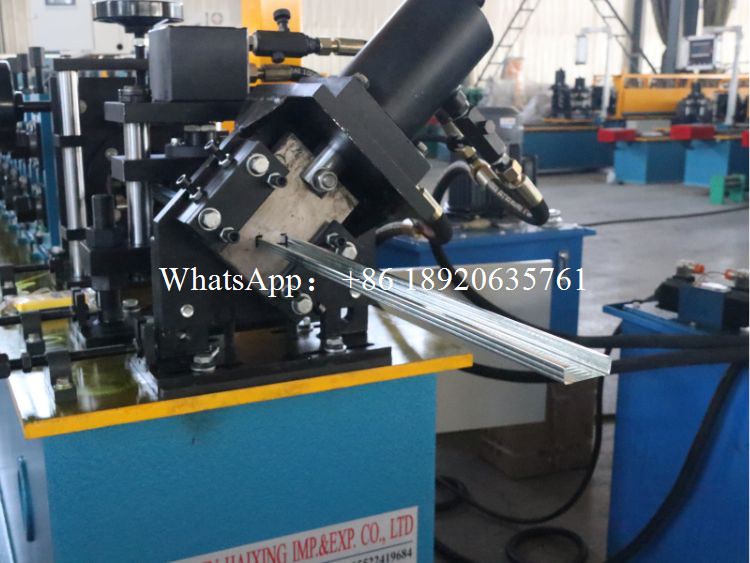

Following this precise formation, an integrated high-speed cutting system shears the continuous profile into studs of exact, pre-set lengths.
This fully automated sequence from decoiling to final cutting ensures a continuous workflow, minimizing manual intervention, reducing labor costs, and maximizing output—a key benefit provided by a true Professional C Metal Stud Roll Forming Machine.
| Product Name | Professional C Metal Stud Roll Forming Machine |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Beyond automation, what defines this equipment is its professional-grade construction and extensive adaptability. As the name Professional C Metal Stud Roll Forming Machine implies, it is built with durability and precision in mind, utilizing high-quality components to ensure long-term stability and minimal maintenance.
Understanding the diverse needs of global manufacturers, the machine offers comprehensive customization. Critical operational parameters, including the material entry width, the forming thickness (gauge), the operating voltage, and the language on the intuitive touchscreen control panel, can all be tailored to your specific factory requirements.
To protect your investment and ensure uninterrupted productivity, the Professional C Metal Stud Roll Forming Machine is supported by advanced remote service technology. This proactive approach to after-sales service minimizes potential downtime, empowers your operational staff with expert knowledge, and ensures your Professional C Metal Stud Roll Forming Machine consistently performs at its peak throughout its entire lifecycle.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Professional C Metal Stud Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Professional C Metal Stud Roll Forming Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
