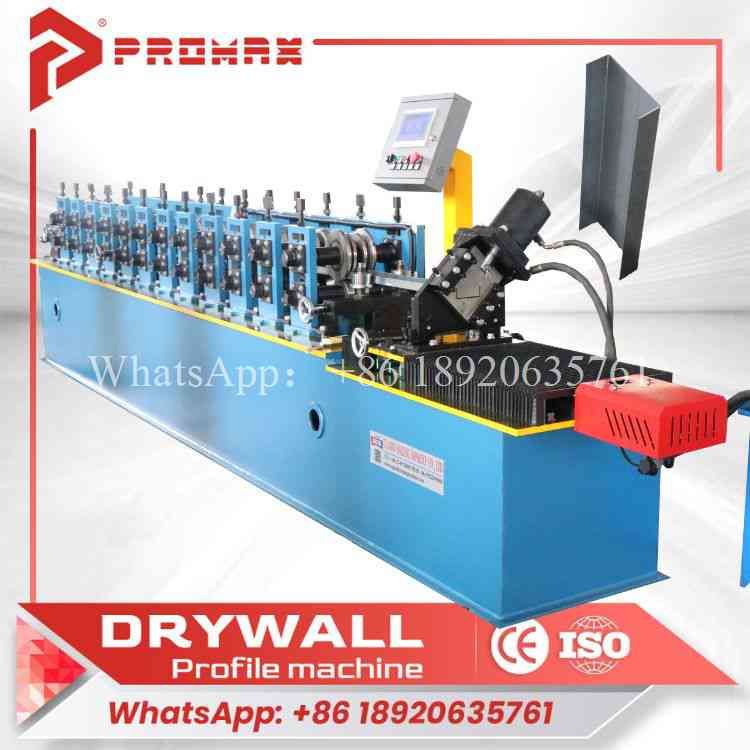

The global construction sector increasingly relies on light gauge steel framing systems for their strength, versatility, and efficiency. Within these systems, the U-shaped track or channel serves as the critical horizontal component, forming the top and bottom plates of walls and providing essential support for ceiling grids. To meet the specific demand for high-quality U-profile production, we have engineered a specialized solution. Our China light keel roll forming machine for making U type light steel keel is a dedicated, automated production line designed for the precision and high-volume fabrication of these essential components. This robust China light keel roll forming machine for making U type light steel keel exemplifies focused engineering, delivering consistent output for manufacturers who require reliable production of U-type keels for modern construction projects, from residential villas to commercial interiors.
The operational efficiency of our China light keel roll forming machine for making U type light steel keel is centered on a streamlined, automated process.

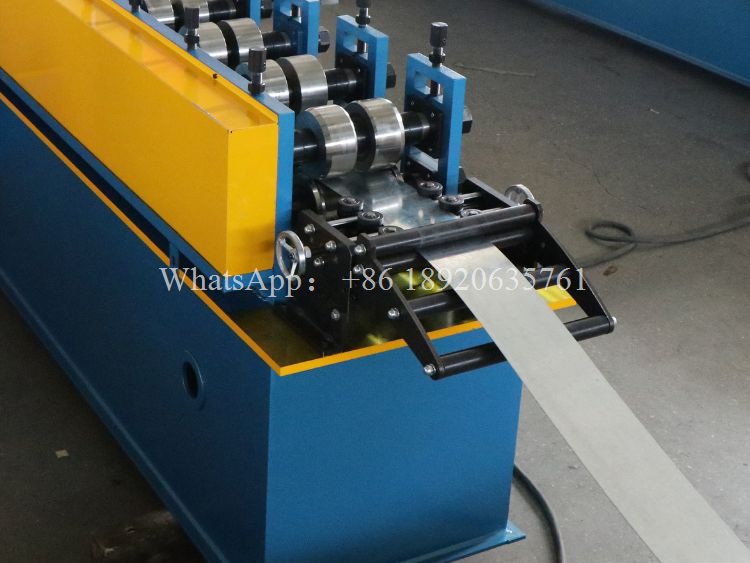

The production cycle begins with automatic decoiling and feeding, ensuring a smooth and steady introduction of galvanized steel coil into the system.

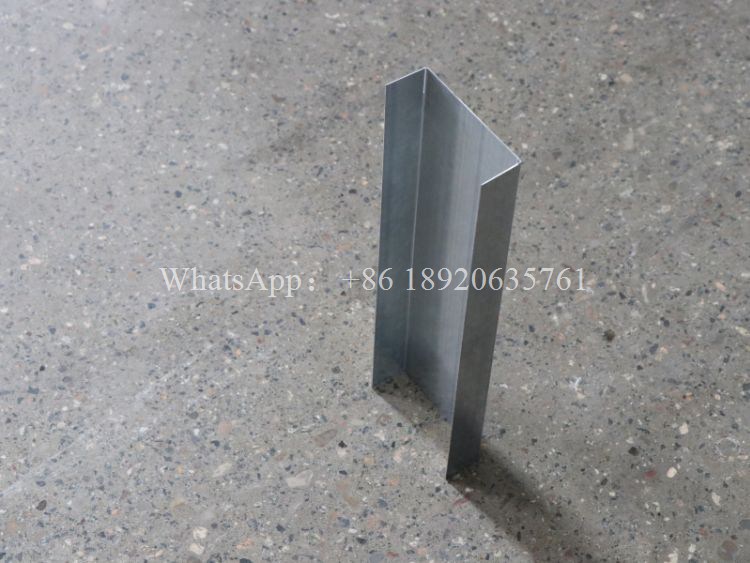

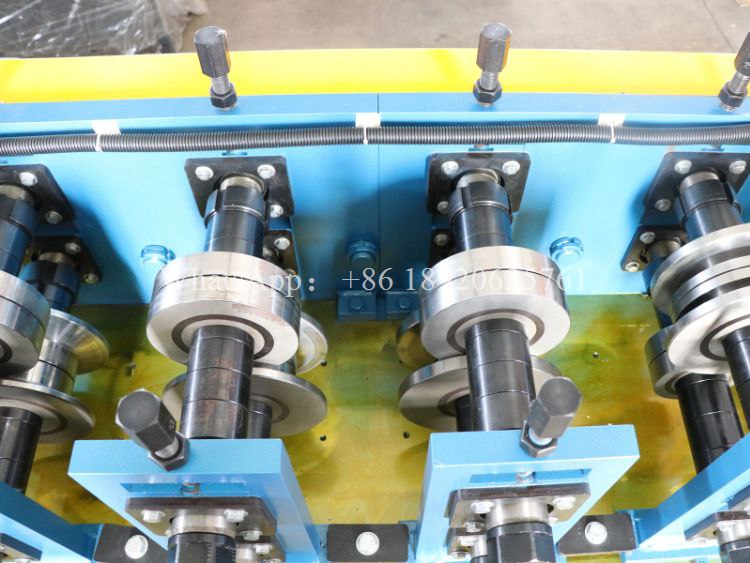

The material is then precisely guided through a multi-stage roll forming station. Here, a series of hardened, computer-designed rolls progressively shape the flat steel strip into the perfect U-profile geometry, ensuring consistent flange height and channel width.

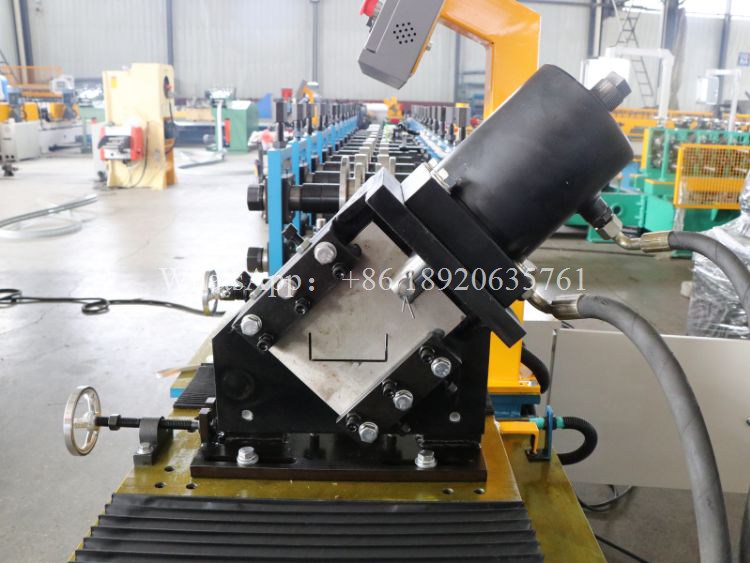

The formed profile is then cleanly cut to exact, programmed lengths by a high-speed servo shear.
This focused automation within the China light keel roll forming machine for making U type light steel keel guarantees dimensional accuracy, excellent material yield, and reliable output, making it an ideal asset for dedicated track manufacturing or for businesses supplying complete framing systems alongside C-stud production lines.
| Product Name | China light keel roll forming machine for making U type light steel keel |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |

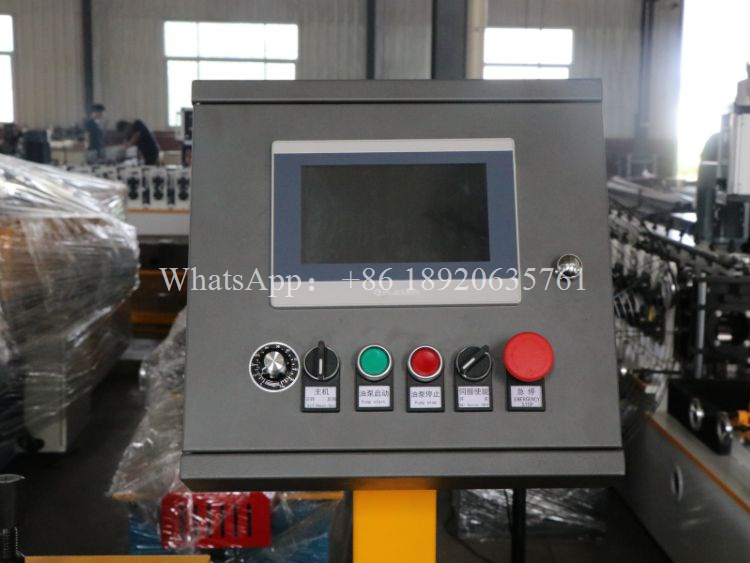

A key feature of this China light keel roll forming machine for making U type light steel keel is its customizability and certified build quality. Recognizing diverse international requirements, we offer extensive configuration options. Parameters such as the maximum material entry width, steel thickness capacity, operational voltage, and the language interface on the user-friendly touch-screen control panel can all be tailored to your factory's specific needs. This flexibility ensures seamless integration. Furthermore, the machine is designed and constructed in full compliance with stringent international standards, as evidenced by its CE certification. This provides essential assurance of safety and quality, facilitating trust and market access.
We support your investment with comprehensive remote assistance, including video guidance for setup and operation. The China light keel roll forming machine for making U type light steel keel represents a strategic tool for enhancing your production capability, enabling you to efficiently supply a fundamental component of the global LGS construction industry.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a China light keel roll forming machine for making U type light steel keel. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the China light keel roll forming machine for making U type light steel keel can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
