U Shaped Track Roll Forming Machine

In the realm of modern interior construction, precision and efficiency in producing structural framing components are fundamental to project success. The U Shaped Track Roll Forming Machine stands as a cornerstone piece of equipment, specifically engineered for the high-volume, consistent manufacturing of U-shaped tracks or channels. These critical profiles form the top and bottom plates in drywall wall systems and the main runners in ceiling grids, providing essential support and alignment for C-studs and furring channels. This automated system embodies a seamless integration of robust mechanics and intelligent control, delivering unparalleled reliability for manufacturers worldwide.

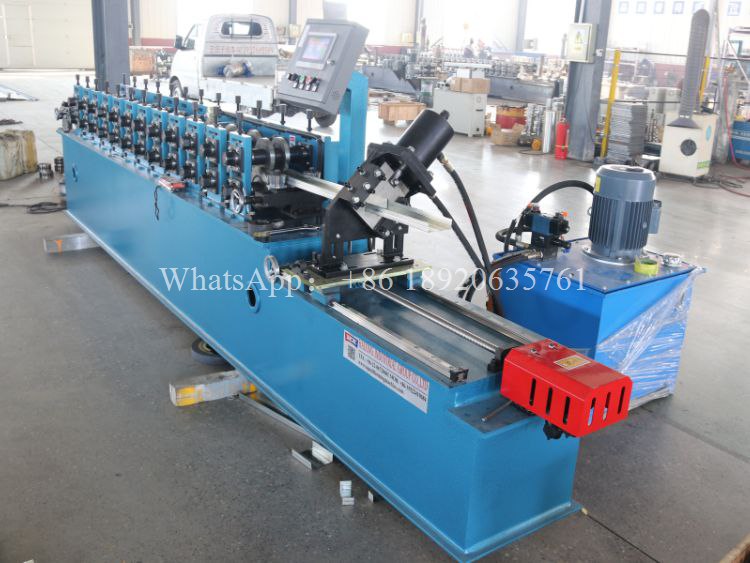

The operational excellence of the U Shaped Track Roll Forming Machine is rooted in its meticulously coordinated sequence of stations, transforming coiled steel into finished product with minimal manual intervention.

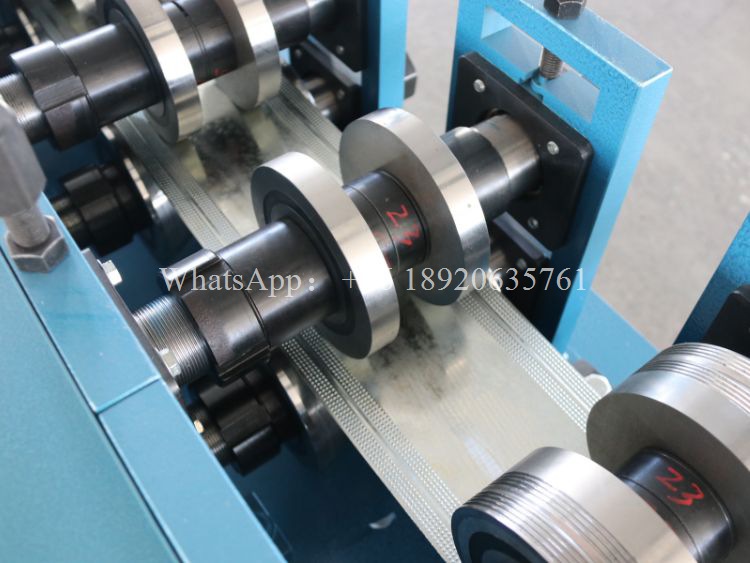

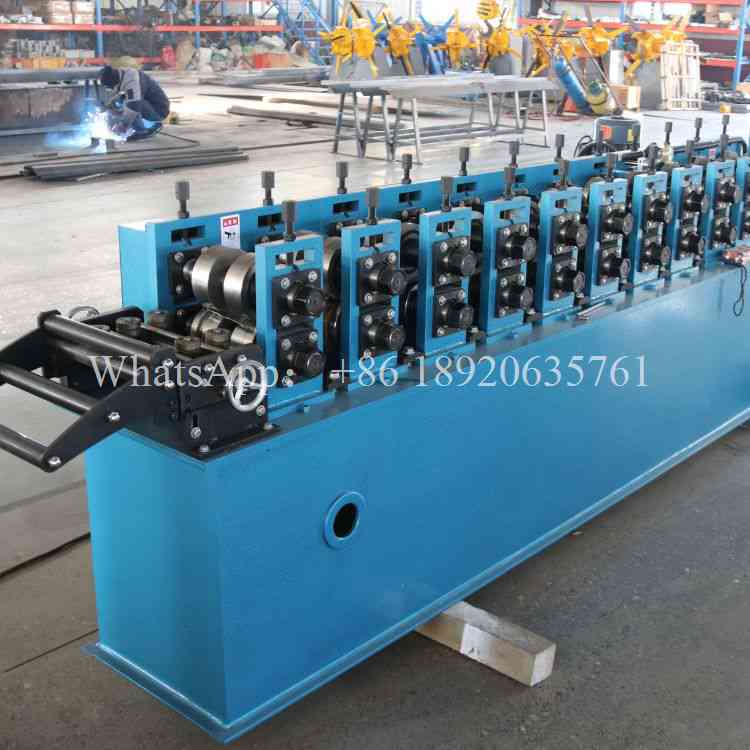

The process initiates at the heavy-duty decoiler, which securely holds and feeds large coils of pre-galvanized or cold-rolled steel strip into the line. The material then advances through a guided feeding and leveling platform, ensuring it enters the forming section flat and accurately aligned. The core of the machine is its precision roll forming station, where a progressive series of computer-designed roller dies gradually and consistently bend the flat metal into the perfect U-shaped profile.

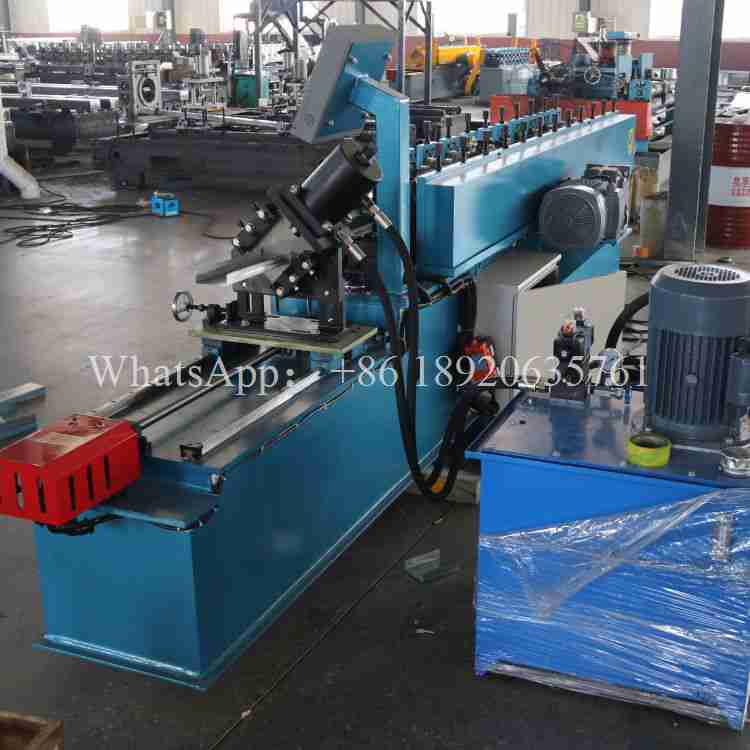

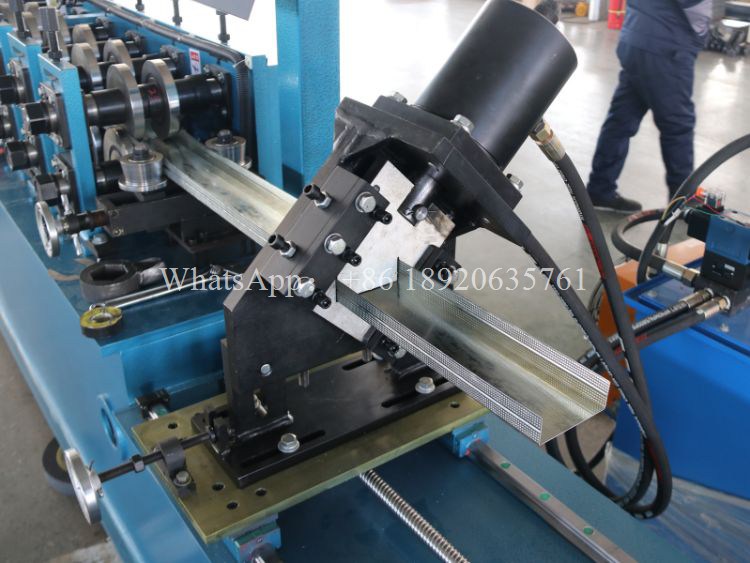

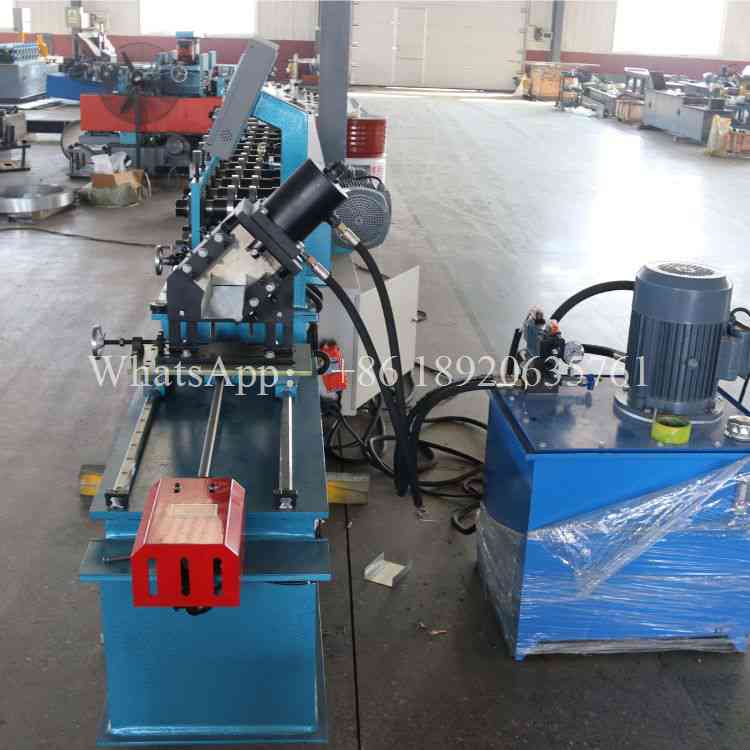

Following this, a high-speed, synchronized flying cut system—or precision shear—cleanly severs the continuous profile to pre-set lengths with exceptional accuracy. Finally, an automated output table or stacking rack organizes and counts the finished U-shaped tracks, completing a smooth, end-to-end production cycle.

Machine parameters

Beyond its mechanical proficiency, the U Shaped Track Roll Forming Machine is designed for operational simplicity and global adaptability. It is managed via a centralized PLC control system accessible through an intuitive multi-language touchscreen interface. A defining feature is the integrated remote technical support capability. Our engineers can provide live video guidance, real-time diagnostics, and operational parameter adjustments from afar, ensuring maximum uptime and immediate expert support for maintenance or optimization needs. This remote quality assurance program is a vital asset for maintaining continuous, productive operation.

Customization is at the heart of the U Shaped Track Roll Forming Machine design to meet diverse market demands. Critical parameters such as the material inlet width and the forming thickness can be tailored to produce various sizes of U-tracks. The machine's electrical configuration, including the main operating voltage, can be built to suit specific regional power standards. Furthermore, the touchscreen Human-Machine Interface (HMI) can be programmed in multiple languages, allowing operators to manage the system effortlessly in their native tongue, reducing training time and operational errors.

Safety and international compliance are non-negotiable. The U Shaped Track Roll Forming Machine is manufactured in strict accordance with CE machinery directives, certifying that it meets the rigorous health, safety, and environmental protection standards required for the European market. This certification provides our global customers with confidence in the machine's safe design, construction, and performance reliability.

Why Choose Us

28 years of professional R&D team

One-stop-solution for roll forming machine

Long-life stable running

High-precision finished products

High-quality raw materials

Brand electrical parts

About us

Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a U Shaped Track Roll Forming Machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the U Shaped Track Roll Forming Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
