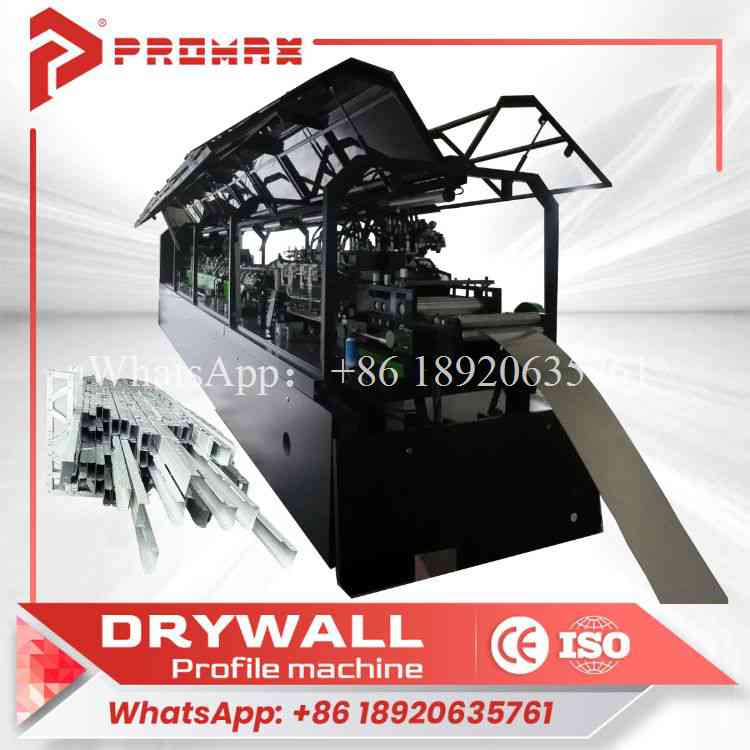

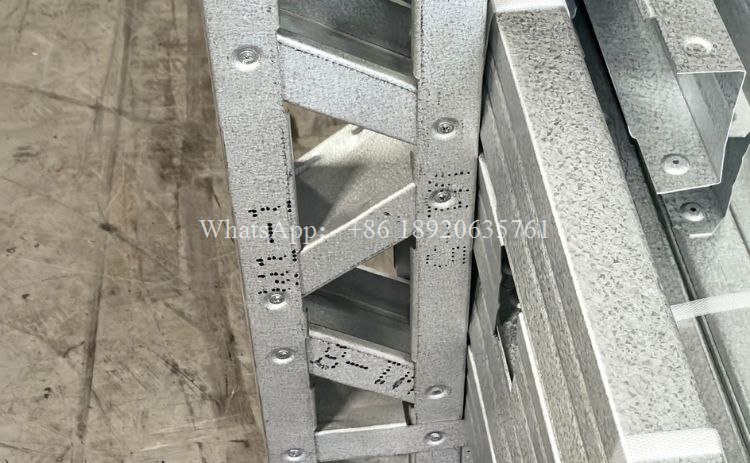

The construction industry worldwide is embracing innovative methods that offer superior speed, sustainability, and structural integrity. Light gauge steel (LGS) framing has emerged as the leading technology for modern residential construction, particularly for villas, eco-homes, and low-rise commercial projects, due to its exceptional strength-to-weight ratio and design flexibility. The efficiency of any LGS project is fundamentally dependent on the precision and quality of its core components—the studs, tracks, and joists that form the building's skeleton. To meet this critical manufacturing need, we are pleased to offer our state-of-the-art Light Steel Villa Keel Frame Roll Forming Machine for Sale. This fully integrated, automated production line is engineered specifically to fabricate high-tolerance framing components with maximum efficiency and reliability. The Steel Frame Machine for Sale For Light Villa Keel represents a complete, certified production solution, designed to equip manufacturers with the capability to become key suppliers in the rapidly growing prefabricated construction sector.
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System →Cutting Device →Out-let table

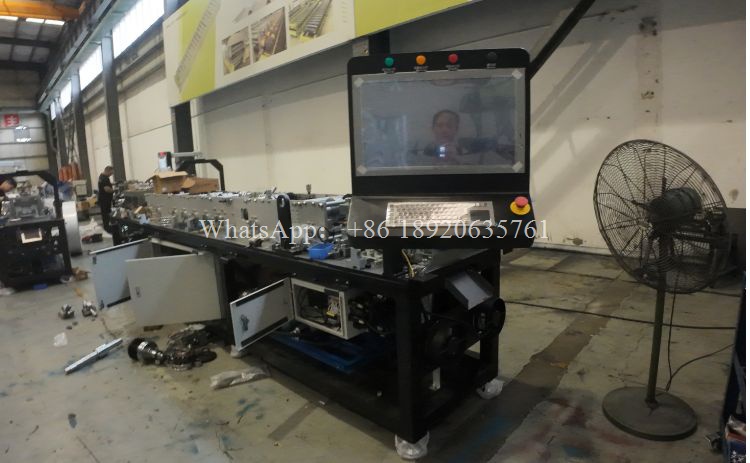

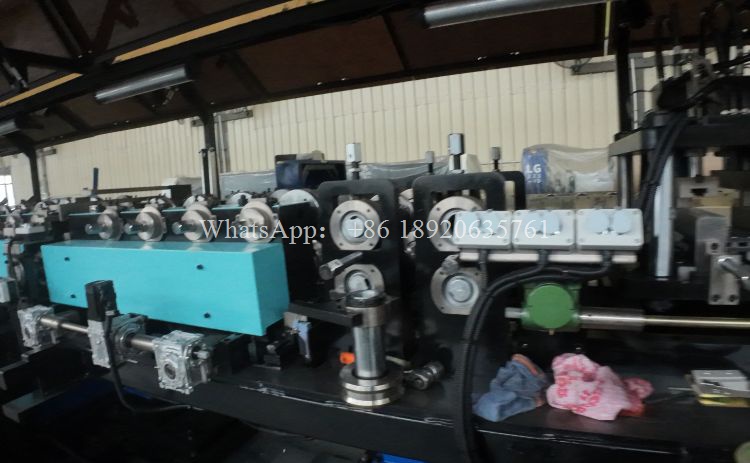

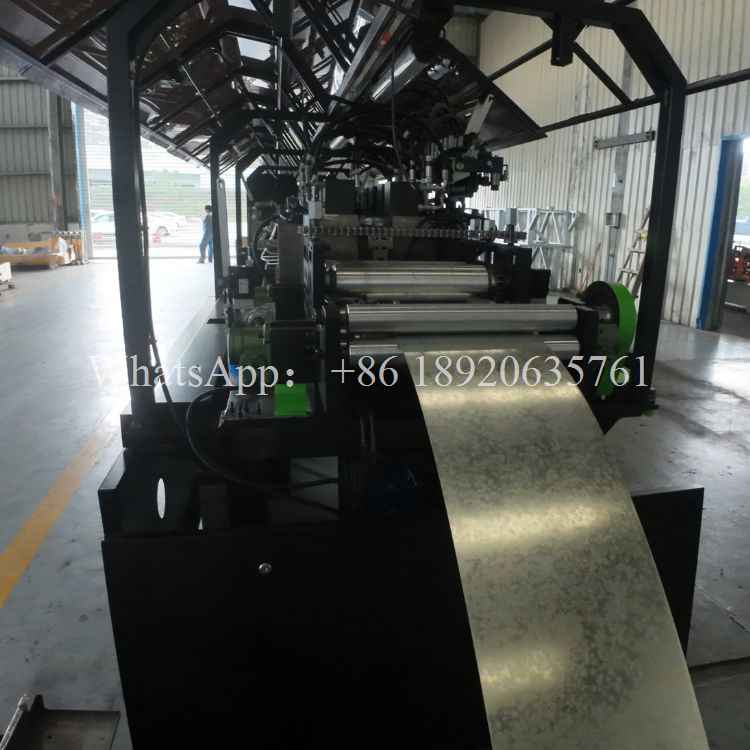

Operational excellence is engineered into every phase of the Steel Frame Machine for Sale For Light Villa Keel. The system executes a meticulously sequenced, automated workflow: It begins at the decoiling and feeding station, ensuring a smooth and stable supply of galvanized steel coil. The material then advances to a precision punching unit, where computer-controlled tooling creates accurate holes for utilities, services, and fasteners according to specific architectural plans, a vital feature for reducing on-site labor. The heart of the line is the robust roll forming mill, where the steel strip is progressively shaped through a series of hardened rolls into precise C or U profiles. A high-speed servo cutting system then delivers clean, square cuts to exact lengths, before the finished keels are neatly presented on the receiving table for bundling. This seamless integration within the Light Steel Villa Keel Frame Roll Forming Machine for Sale guarantees consistent dimensional accuracy, optimizes material usage, and enables the high-volume output necessary to supply multiple villa projects or large-scale developments.
A defining advantage of this Steel Frame Machine for Sale For Light Villa Keel is its exceptional customizability and adherence to the highest international safety standards. We understand that manufacturers serve diverse markets with varying building codes and client specifications. Therefore, this machine is highly configurable: key parameters such as maximum entry material width, acceptable steel thickness (gauge), operational voltage, and the language interface on the intuitive touch-screen control panel can all be tailored to your factory's specific requirements. This flexibility ensures a perfect fit for your production environment. Crucially, the Light Steel Villa Keel Frame Roll Forming Machine for Sale is CE certified, providing undeniable assurance of its compliance with stringent European health, safety, and environmental protection directives. This certification is a significant asset for building trust with discerning clients and facilitating access to regulated international markets.
To protect your investment and ensure uninterrupted productivity, the Steel Frame Machine for Sale For Light Villa Keel is supported by our comprehensive remote service program. Our expert engineers provide real-time video guidance for installation, in-depth operator training, troubleshooting, and preventative maintenance. This commitment minimizes potential downtime and ensures your production asset operates at peak performance throughout its lifecycle.
| Product Name | Steel Frame Machine for Sale For Light Villa Keel |
| Formed Material | Steel strip |
|
Profile Width(web)
|
90mm |
|
Profile Height(flange)
|
41mm |
|
Lips
|
7-12mm |
| Machine size | (length)5.5m x (width)1.25m x (height)1.65m |
| Machine weight | About 3.8T |
| Material Thickness | 0.75-1.20mm(22 gauge to 18 gauge),G550 Galvanized Strip Steel |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15 rows(As your requirement) |
|
Roller Material
|
GCr15, heat treat to HRC58-60 after CNC processing, and then finish turning, polishing and electroplatin |
|
Diameter of main shaft
|
ø60mm |
|
Material of main shaft
|
40Cr, after CNC processing, hrc28-32 is quenched and tempered, and then polished and electroplated |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutting material | Cr12 Cr12MoV Cr12 (3 blades for cutting to specific specifications) |
| Servo motor | Servo motor (7.5KW) + precision planetary gear reducer (Taiwan APEX)(7.5KW) + precision planetary gear reducer (Taiwan APEX) |
| Hydraulic station | 7.5 kw |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed |
High speed 48m/min, the actual production speed you can communicate separately) |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Investing in this Steel Frame Machine for Sale For Light Villa Keel for Sale is a strategic decision to secure a competitive position in the future of construction. This robust, versatile, and certified production line empowers you to manufacture the essential framework for durable, energy-efficient, and quickly assembled light steel villas. By acquiring this advanced Light Steel Villa Keel Frame Roll Forming Machine for Sale, you are not just purchasing machinery—you are deploying a complete, precision manufacturing system engineered for operational excellence, market adaptability, and long-term business growth.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Steel Frame Machine for Sale For Light Villa Keel. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Steel Frame Machine for Sale For Light Villa Keel can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
