Featuring high automation;
Superior precision;
Excellent efficiency;
User-friendly operation.
WhatsApp: 0086 18920635761
E-mail: lisa@hx-machinery.com

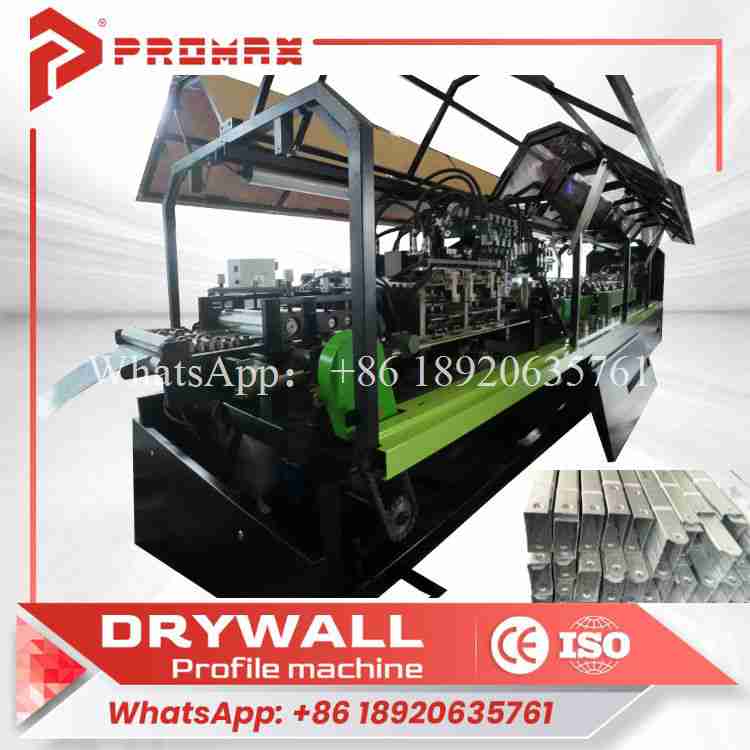

The global construction sector is undergoing a transformative shift towards methods that prioritize speed, sustainability, and structural resilience. At the heart of this evolution lies light gauge steel (LGS) framing, a system that redefines modern residential construction, particularly for villas, bespoke homes, and multi-unit developments. The efficiency and quality of any LGS project are fundamentally determined by the precision of its primary components. To empower manufacturers to lead in this dynamic market, we introduce our integrated Steel Framing Machines for Light Steel Villa Keel. This complete, automated production line is engineered for the high-volume fabrication of all critical framing members—studs, tracks, and joists—with unparalleled accuracy. The Steel Light Gauge Steel Villa Keel Framing Machines represent more than equipment; they are a certified production ecosystem designed to manufacture the essential skeleton for the next generation of high-performance, green buildings.
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System →Cutting Device →Out-let table

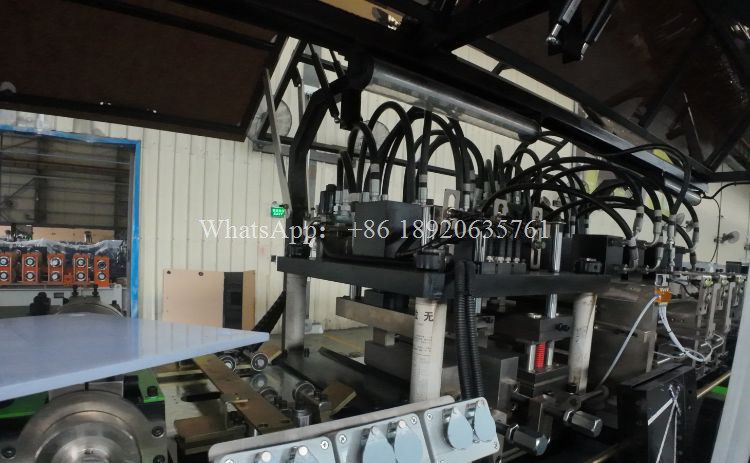

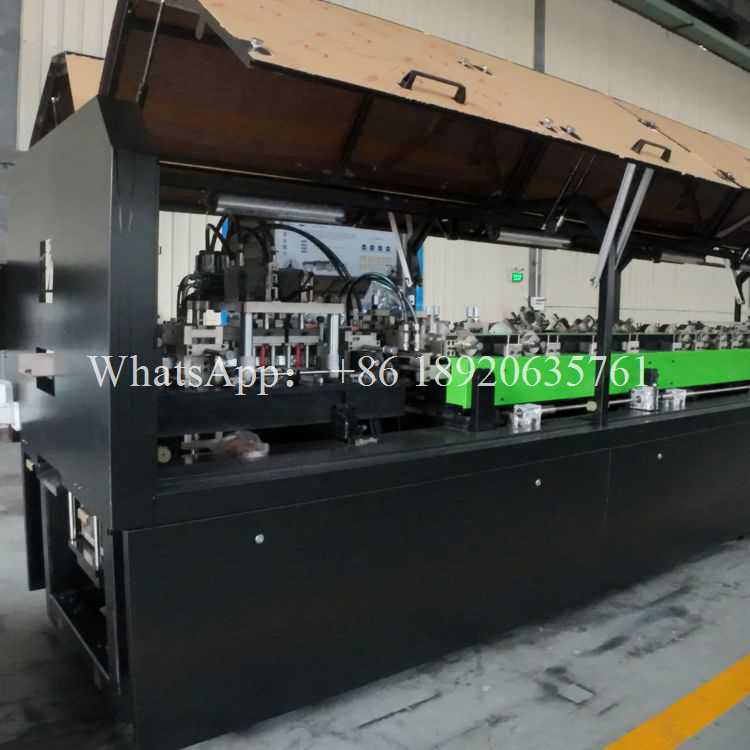

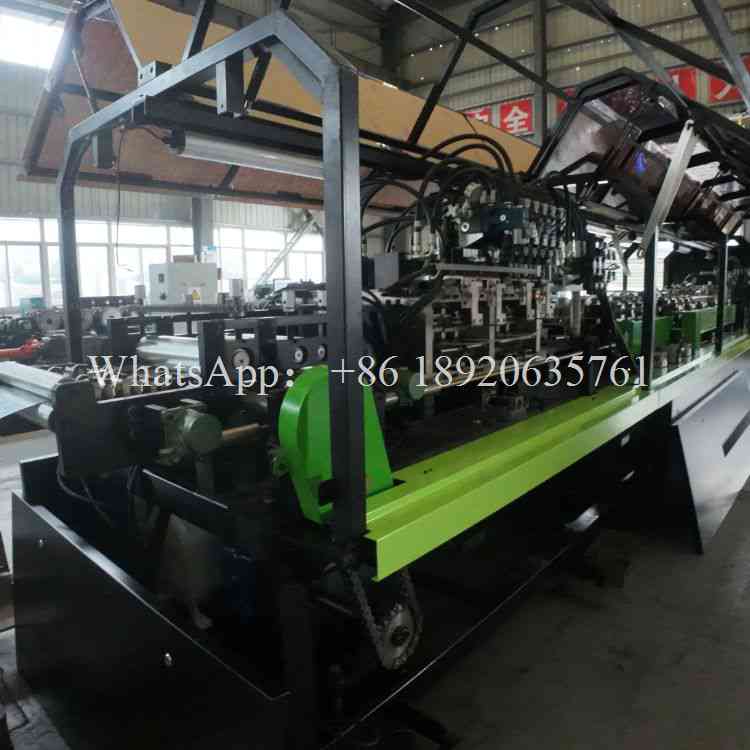

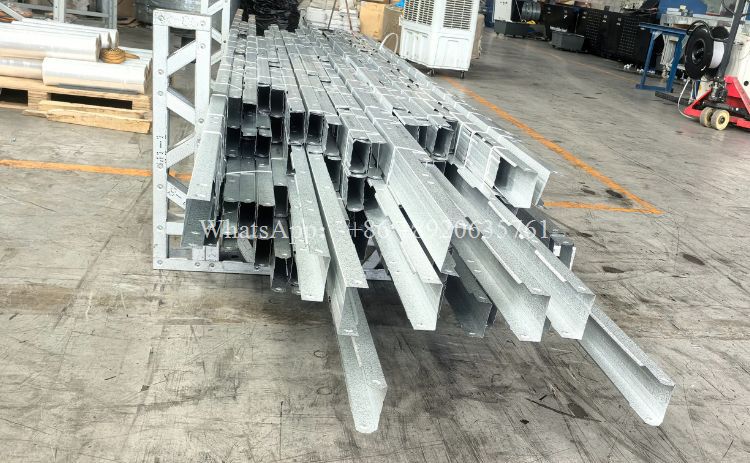

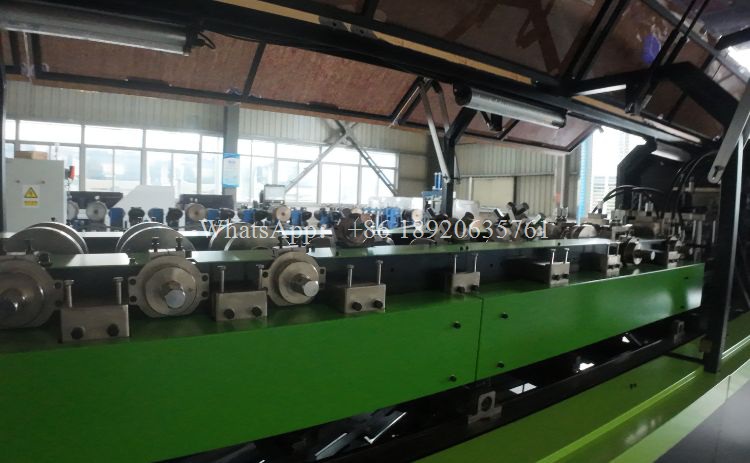

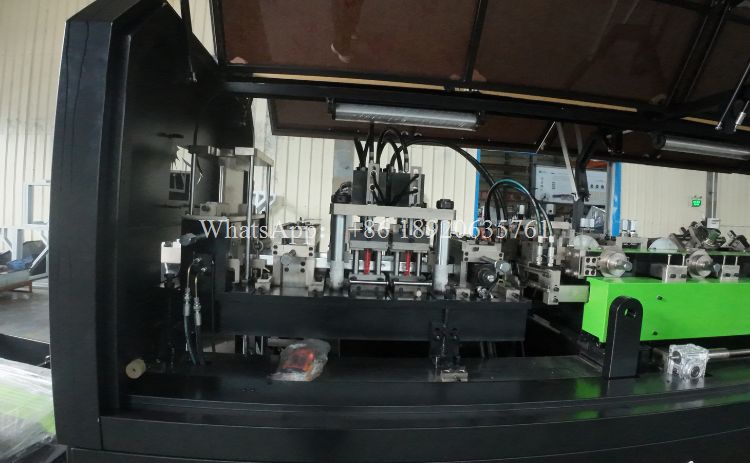

Precision engineering defines every stage of the Steel Framing Machines for Light Steel Villa Keel. The automated process follows a meticulously sequenced workflow: It begins at the decoiling and feeding station, which ensures a smooth, stable supply of galvanized steel coil. The material then advances to a computer-controlled punching unit, creating precise holes for electrical conduits, plumbing, and mechanical fasteners according to design specifications, a critical feature for streamlined on-site assembly. The heart of the system is the robust roll forming mill, where the strip is progressively shaped through hardened tooling into precise C and U profiles. A high-speed servo shear then cuts the profiles to exact lengths, before a receiving table facilitates orderly output. This seamless integration within the Steel Light Gauge Steel Villa Keel Framing Machines guarantees dimensional consistency, reduces material waste, and delivers the high-volume output required to supply large-scale or multiple villa projects simultaneously.

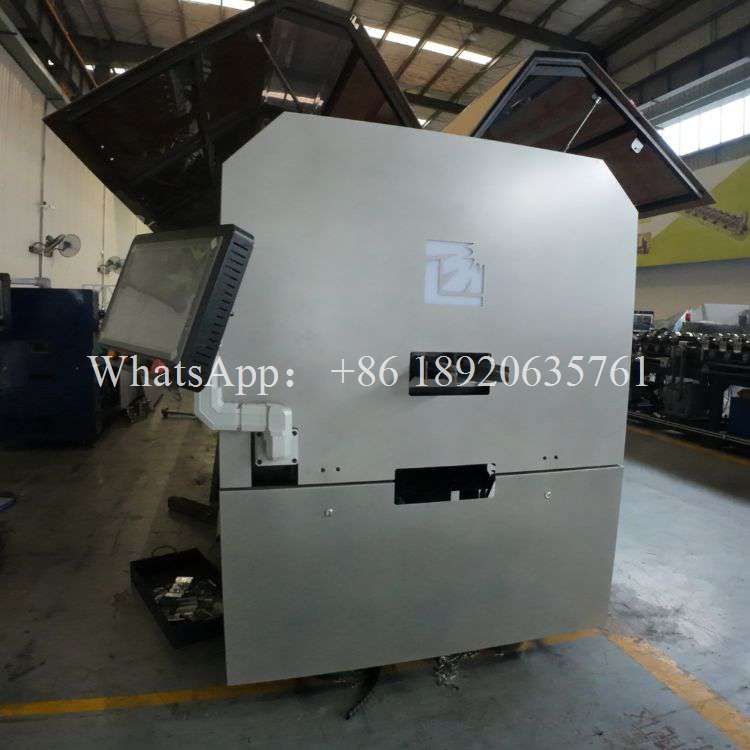

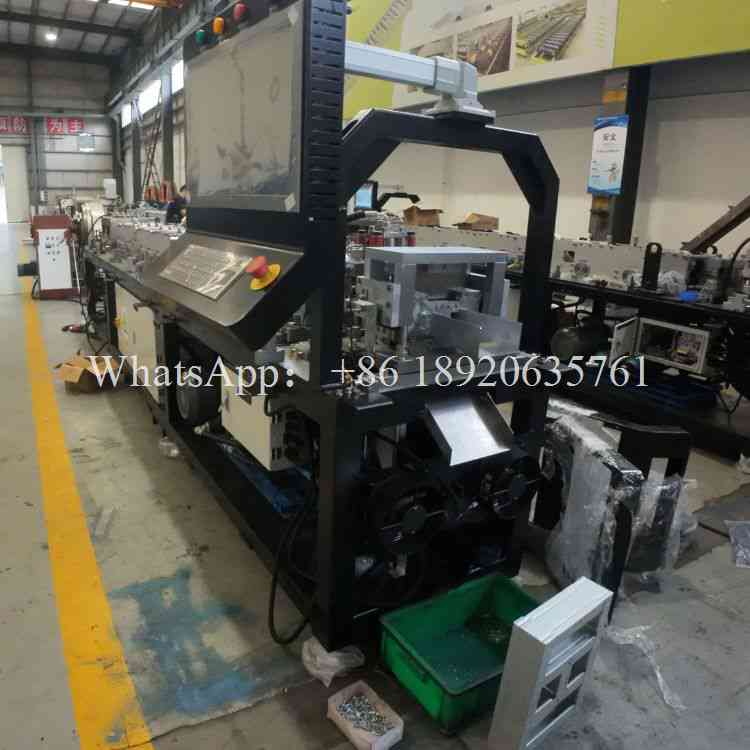

A paramount strength of the Steel Framing Machines for Light Steel Villa Keel is their exceptional adaptability and certified safety. Recognizing the diverse requirements of international building codes and architectural designs, this system is highly customizable. Key operational parameters, including maximum material entry width, steel thickness (gauge) capacity, main drive voltage, and the language interface on the user-friendly touch-screen HMI, can be tailored to your specific factory setup and market demands. This flexibility ensures seamless integration and quick adaptation. Furthermore, the Steel Light Gauge Steel Villa Keel Framing Machines carry CE certification, providing unequivocal assurance of their compliance with stringent European machinery safety and environmental directives. This mark is indispensable for manufacturers targeting quality-conscious global markets, as it builds client trust and simplifies regulatory compliance.
To ensure maximum return on investment and operational continuity, we support the Steel Light Gauge Steel Villa Keel Framing Machines with comprehensive remote services. Our engineers provide real-time video guidance for installation, operator training, troubleshooting, and preventative maintenance, minimizing potential downtime and ensuring your production line operates at peak efficiency. This commitment transforms the Steel Framing Machines for Light Steel Villa Keel from a capital asset into a continuously supported partnership.
| Product Name | Steel Framing Machines for Light Steel Villa Keel |
| Formed Material | Steel strip |
|
Profile Width(web)
|
90mm |
|
Profile Height(flange)
|
41mm |
|
Lips
|
7-12mm |
| Machine size | (length)5.5m x (width)1.25m x (height)1.65m |
| Machine weight | About 3.8T |
| Material Thickness | 0.75-1.20mm(22 gauge to 18 gauge),G550 Galvanized Strip Steel |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 15 rows(As your requirement) |
|
Roller Material
|
GCr15, heat treat to HRC58-60 after CNC processing, and then finish turning, polishing and electroplatin |
|
Diameter of main shaft
|
ø60mm |
|
Material of main shaft
|
40Cr, after CNC processing, hrc28-32 is quenched and tempered, and then polished and electroplated |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutting material | Cr12 Cr12MoV Cr12 (3 blades for cutting to specific specifications) |
| Servo motor | Servo motor (7.5KW) + precision planetary gear reducer (Taiwan APEX)(7.5KW) + precision planetary gear reducer (Taiwan APEX) |
| Hydraulic station | 7.5 kw |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed |
High speed 48m/min, the actual production speed you can communicate separately) |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Investing in our Steel Framing Machines for Light Steel Villa Keel is a strategic decision to capitalize on the booming prefabricated and sustainable construction sector. This robust, versatile, and certified production solution empowers you to be a key supplier in creating durable, energy-efficient, and rapidly constructed light steel villas. By deploying the Steel Light Gauge Steel Villa Keel Framing Machines, you are not just purchasing machinery—you are activating a precision manufacturing foundation engineered for efficiency, quality assurance, and sustained growth in the future of building.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Steel Framing Machines for Light Steel Villa Keel. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Steel Framing Machines for Light Steel Villa Keel can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
