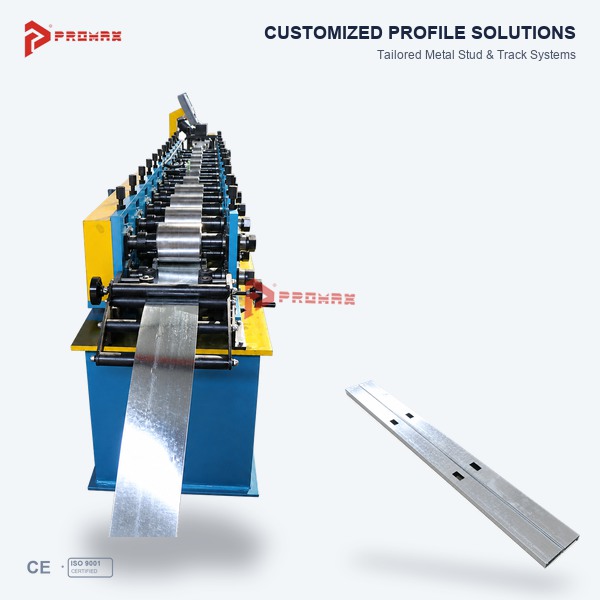

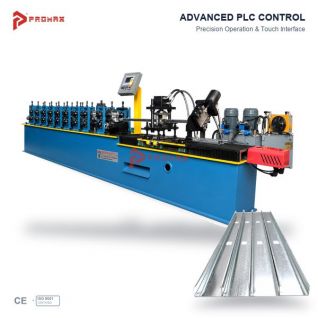

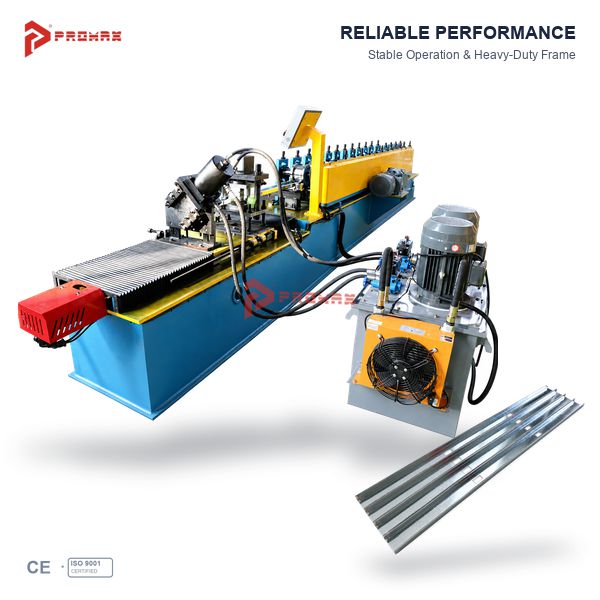

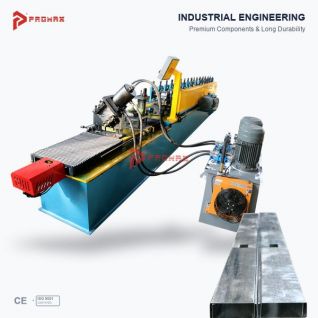

STRUT CHANNEL ROLL FORMING MACHINE

Strut Channel Roll Forming Machine | PROMAX

The strut channel roll forming machine from PROMAX is designed for manufacturers producing C-shaped steel channels for industrial support systems, construction projects, solar mounting structures, and mechanical and electrical installations. This roll forming solution transforms steel coils into consistent channel profiles and can be configured with customized punching patterns according to the customer's technical drawings. It is suitable for businesses looking to establish or expand their own strut channel manufacturing capacity.

Custom C Channel Production for Industrial Applications

PROMAX designs each production line around the required channel profile, material specifications, and intended application. Customers can provide drawings showing the channel width, depth, edge details, material thickness, and finished length. These details are used to determine the appropriate forming configuration and supporting equipment.

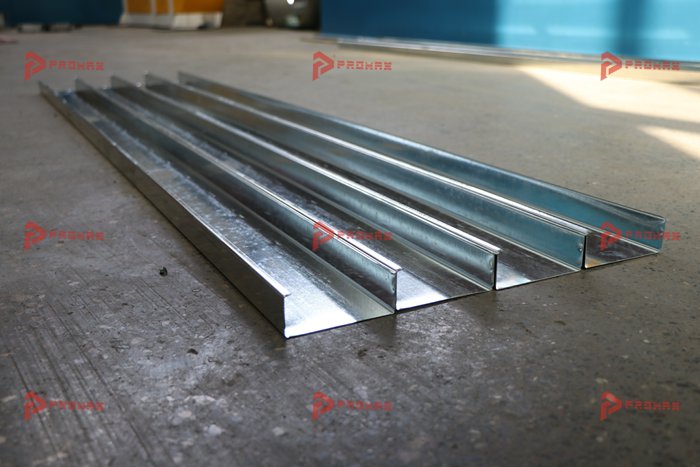

Strut channels are widely used as structural support components in building services and industrial installations. Depending on the profile design and project requirements, they can be used in cable management systems, pipe supports, equipment mounting frames, solar panel mounting structures, and other modular support assemblies. Manufacturers can supply these channels to construction contractors, installation companies, distributors, and industrial project suppliers.

Customized Punching Shapes and Hole Patterns

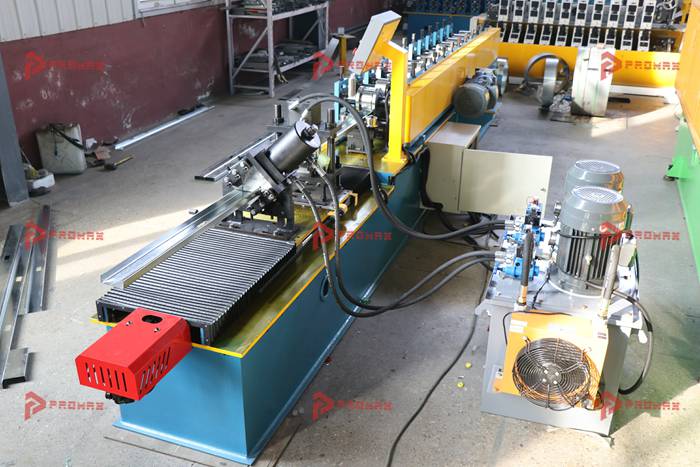

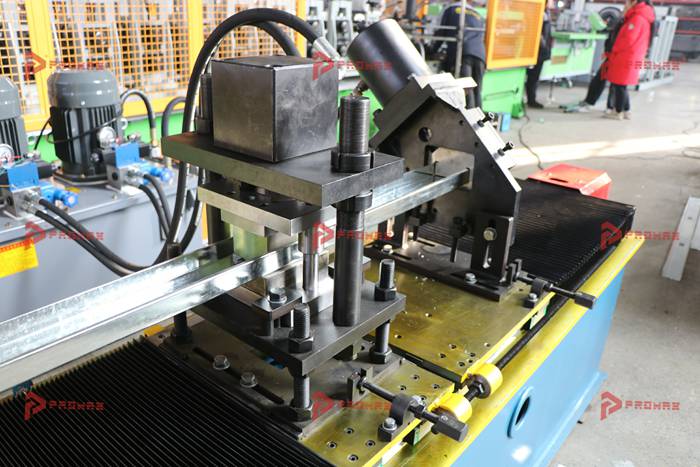

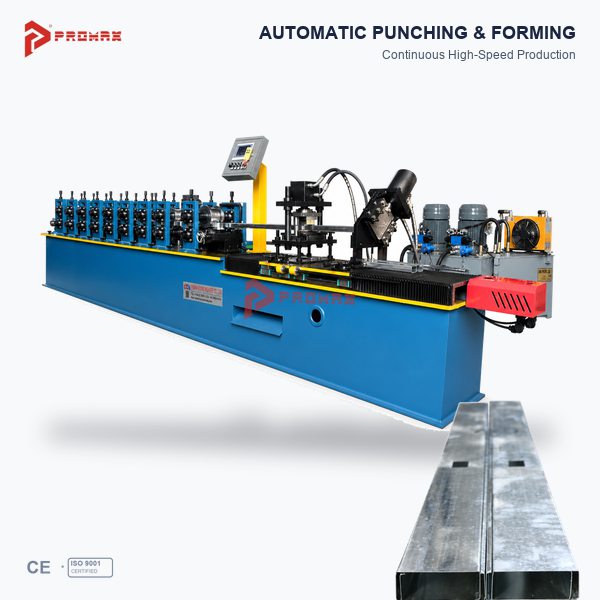

A key feature of the PROMAX strut channel roll forming machine is its customizable punching configuration. Different markets and installation systems may require different hole shapes, sizes, positions, and spacing. PROMAX can study the customer's drawings and develop a suitable punching solution based on the requested channel design and technical feasibility.

Possible requirements include round holes, elongated slots, mounting openings, and other application-specific perforations. The punching layout can be planned to match the intended connection method and installation requirements. By producing channels with the required openings, manufacturers can offer products tailored to their customers' support systems rather than relying only on standard channel designs.

Roll Forming Process and Production Line Configuration

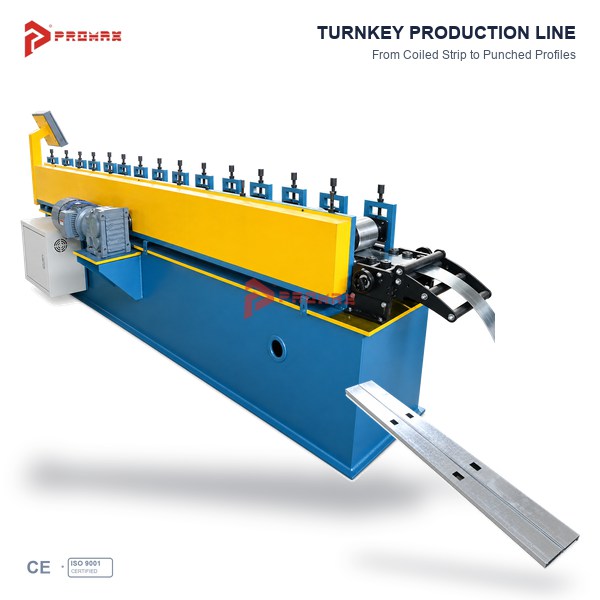

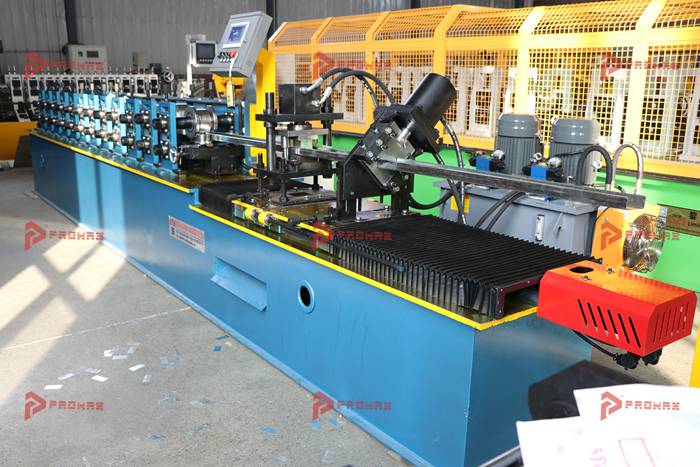

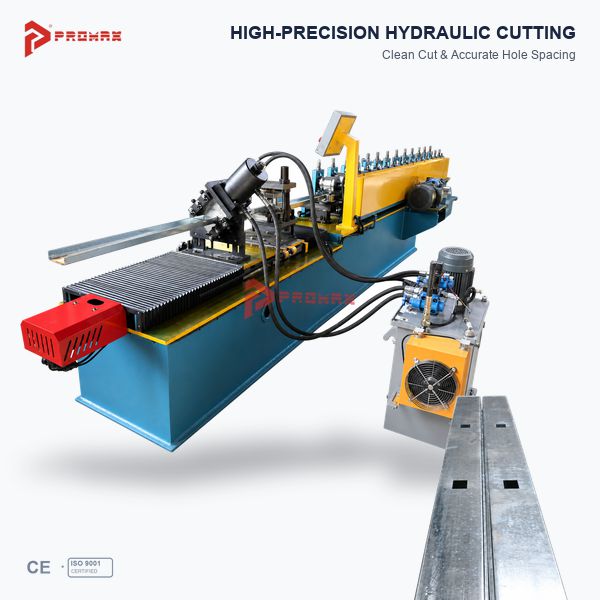

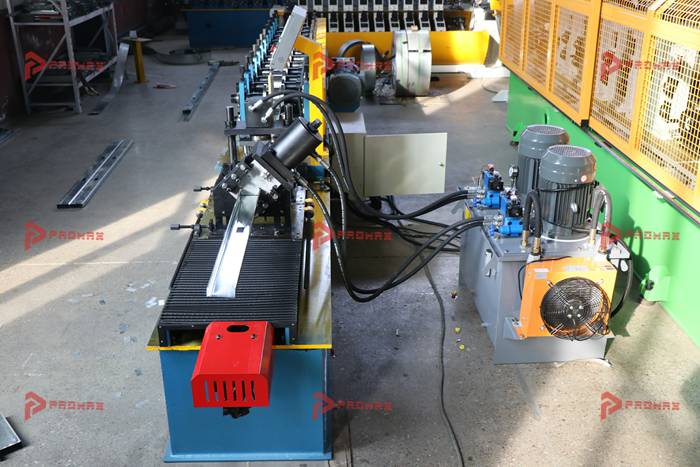

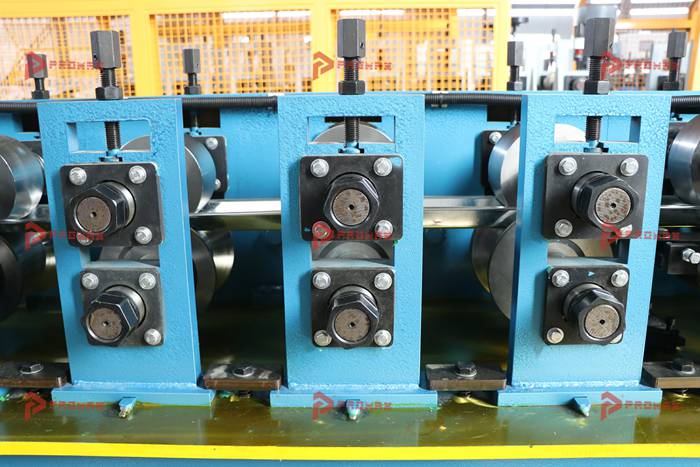

The manufacturing process begins with a steel coil loaded onto the decoiler. The strip is fed through the guiding system and enters a series of forming stations, where rollers progressively shape it into the required C-channel section. Punching and cutting equipment are integrated according to the approved production-line design.

The exact arrangement of the punching system, forming stations, and cutting unit depends on the channel dimensions, material properties, hole pattern, and production requirements. PROMAX evaluates these factors during the technical planning stage to develop a configuration suited to the finished product.

Designed for B2B Manufacturers and Project Suppliers

The PROMAX strut channel roll forming machine is intended for steel profile manufacturers, solar mounting system suppliers, cable support manufacturers, building material producers, and companies supplying components for industrial construction. A dedicated production line allows these businesses to manufacture channels according to their own product specifications and organize production around customer orders.

Customization is especially important for manufacturers serving different regional markets or supplying projects with specific installation requirements. Channel geometry and punching patterns can be reviewed before equipment production, helping buyers select a machine configuration that corresponds to their commercial product range.

Get a Customized Strut Channel Production Solution

PROMAX supports customers through profile evaluation, machine configuration, manufacturing, factory testing, and technical assistance. To request a proposal, send us your C-channel drawings, steel material and thickness, required punching shapes, hole spacing, finished lengths, and target production capacity.

Our team will review the information and discuss a suitable strut channel roll forming machine configuration for your manufacturing project. Contact PROMAX to explore a customized solution for producing C-shaped steel channels for your target market.
