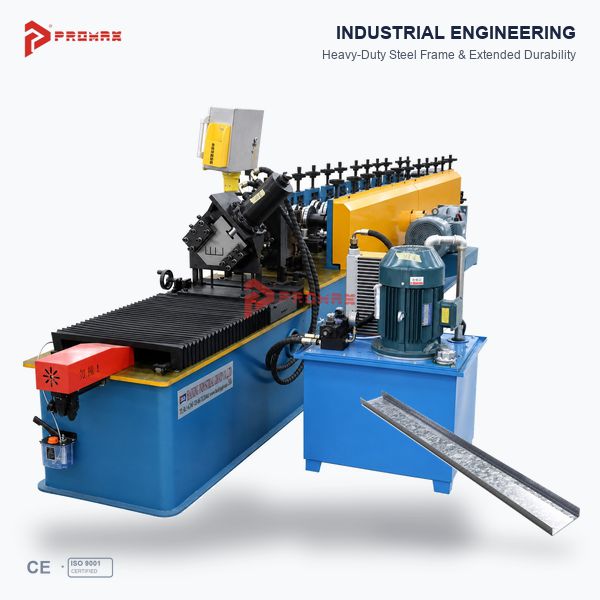

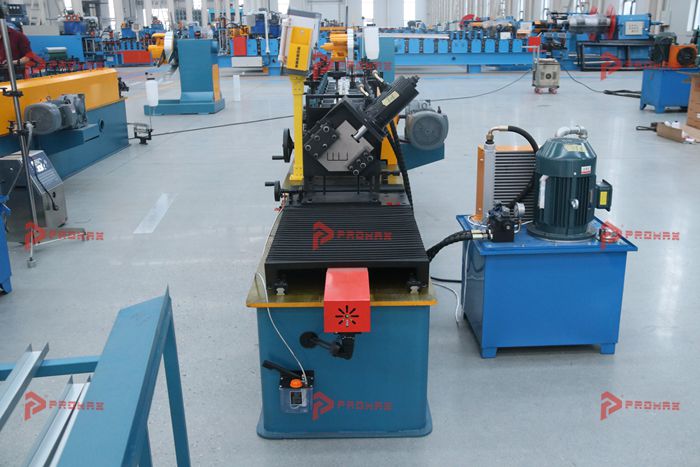

PROMAX Drywall Track Roll Forming Machine

PROMAX Track Roll Forming Machine for Drywall U Track Manufacturing

The PROMAX track roll forming machine is designed for manufacturing galvanized steel U tracks used in drywall partition walls, interior metal framing and light gauge steel construction systems. Using progressive cold roll forming technology, the machine transforms galvanized steel strip into accurately formed track profiles according to customer drawings and production requirements.

Drywall tracks are essential components of many interior partition systems. They are typically installed along floors and ceilings to guide and position compatible vertical metal studs. Consistent track dimensions help manufacturers supply profiles suitable for their intended framing systems.

PROMAX provides customized drywall track roll forming machines for drywall profile factories, construction material manufacturers and metal framing suppliers. Machine configurations are developed according to the required track dimensions, steel specifications and expected production requirements.

What Is a Drywall Track Roll Forming Machine?

A track roll forming machine is specialized cold forming equipment used to manufacture metal tracks from suitable steel coils.

In drywall partition systems, U tracks are commonly used as horizontal framing members at the top and bottom of partition walls.

They provide guidance and positioning for compatible vertical C studs, helping create the required framing arrangement.

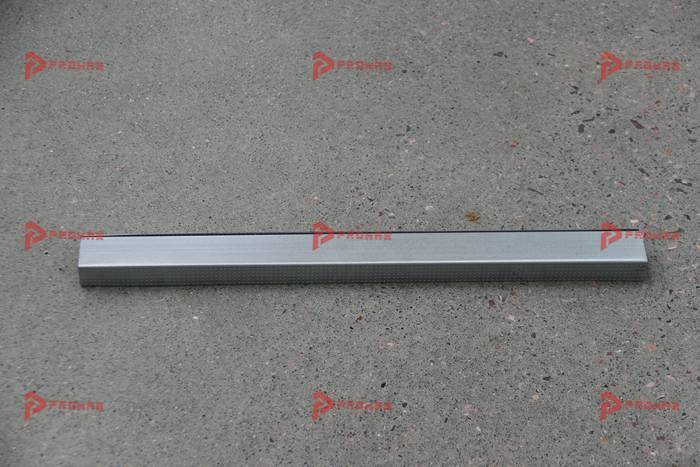

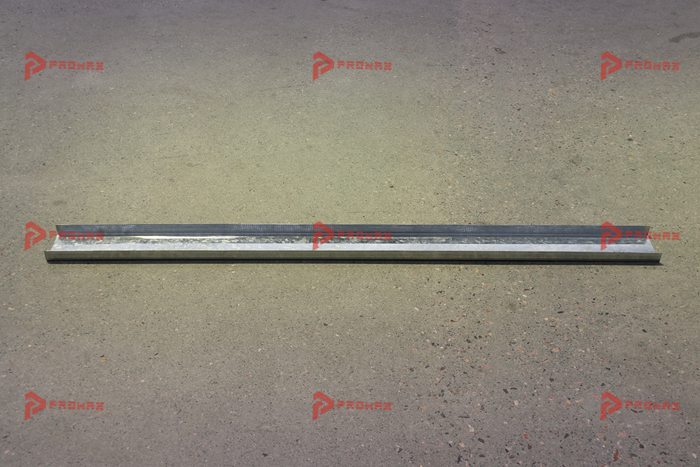

The finished tracks can have different web widths, flange heights and edge details depending on the intended drywall system.

PROMAX evaluates customer-supplied profile drawings to develop suitable forming rollers and machine configurations.

Precision Roll Forming for Metal Tracks

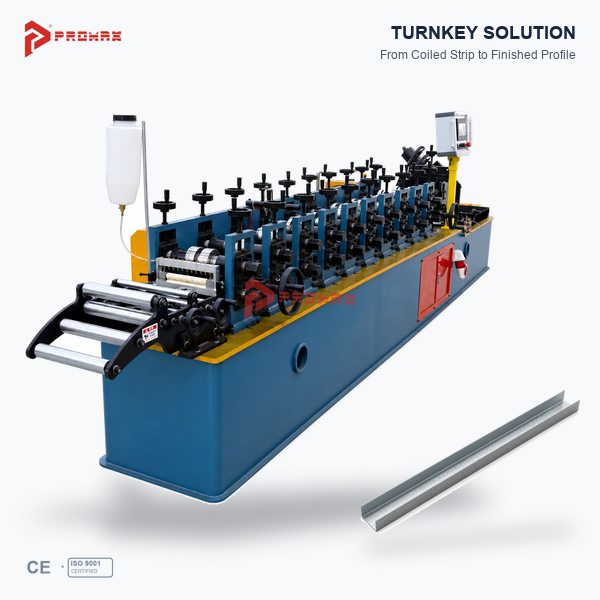

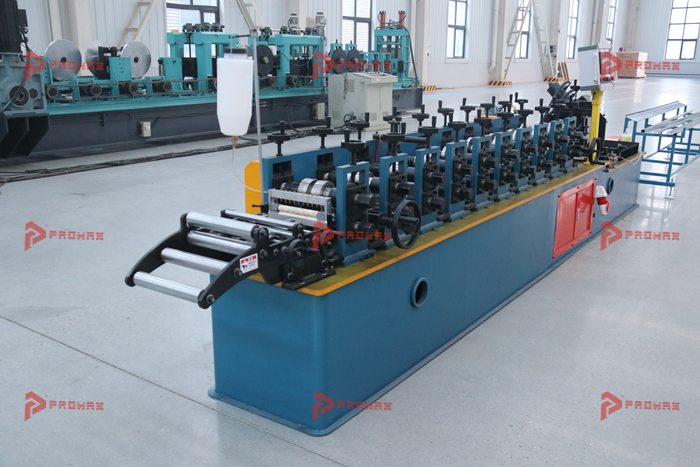

The PROMAX steel track forming machine uses dedicated roller stations to progressively shape flat galvanized steel strip into the required U-shaped track profile.

Each forming station performs a controlled bending operation, gradually developing the approved cross-section.

The roller design is developed according to the required track dimensions, steel thickness and material properties.

Accurate material guidance and forming roller alignment help support repeatable profile geometry during continuous manufacturing.

Finished tracks should be inspected against the approved technical drawings to confirm their dimensions and surface condition.

U Track and C Stud Framing Systems

U tracks and C studs are commonly used together in drywall partition systems.

U tracks are generally installed horizontally along the floor and ceiling, while compatible C studs are positioned vertically between the tracks.

This arrangement creates a framing structure for the installation of drywall boards and associated partition components.

Manufacturers supplying complete drywall framing systems often need compatible stud and track profiles with matching dimensions.

PROMAX can evaluate track production requirements according to the customer's existing stud profiles and framing system drawings.

For manufacturers requiring both profile types, separate production machines or an approved combined stud-and-track solution may be considered.

Customized Drywall Track Sizes

Different countries and construction markets use different U track dimensions for interior metal framing systems.

PROMAX can evaluate customized metal track making machines according to customer-supplied drawings.

Important customization parameters include track web width, flange height, edge geometry, galvanized steel thickness, incoming coil width and required cutting length.

Additional profile requirements, including specialized edges or punching details, can be evaluated during the technical design process.

Different track sizes may require dedicated forming tooling or an approved adjustment arrangement.

Customers requiring multiple track dimensions should confirm the supported size range and changeover method before ordering.

Galvanized Steel Track Manufacturing

Galvanized steel is widely used for manufacturing drywall tracks and other light gauge metal framing components.

The protective zinc coating provides corrosion resistance suitable for specified construction environments.

The galvanized steel track machine is configured according to the required material thickness, steel grade, incoming coil width and coating characteristics.

Different steel specifications may require adjustments to the forming roller design or production conditions.

PROMAX evaluates the customer's material specifications before confirming the final equipment configuration.

Drywall Track Production Process

A typical drywall track manufacturing process includes several coordinated production stages.

1. Decoiling: Galvanized steel coil is loaded onto a suitable decoiler and supplied to the production line.

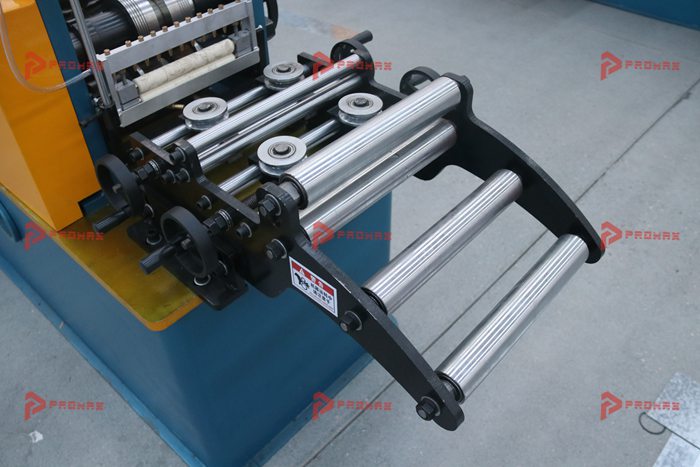

2. Material Guiding: The steel strip passes through a guiding section to support correct alignment.

3. Roll Forming: Dedicated forming rollers progressively shape the steel strip into the required U track profile.

4. Length Cutting: The finished track is cut to the specified production length.

5. Collection and Inspection: Completed U tracks are collected, checked and prepared for packaging.

The final production sequence and automation functions depend on the approved machine configuration.

PLC Control and Automatic Cutting Options

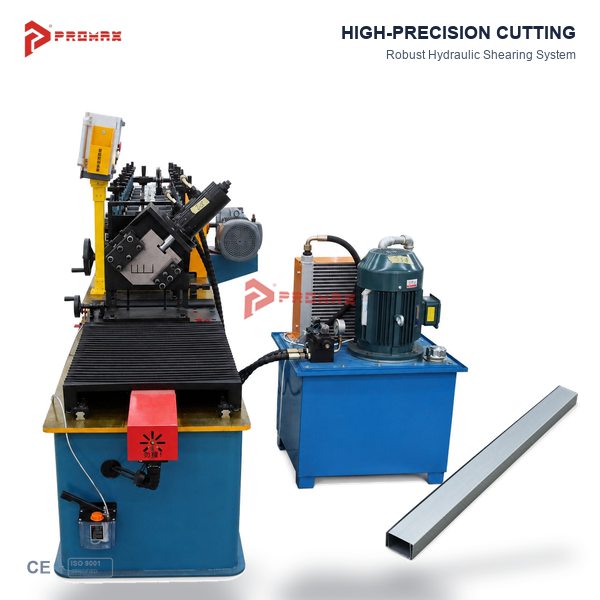

PROMAX track roll forming machines can be configured with PLC-based production control and automatic length cutting functions.

Depending on the approved control arrangement, operators may enter the required track length and production quantity through the machine interface.

Automatic cutting supports repeated manufacturing of U tracks in specified lengths.

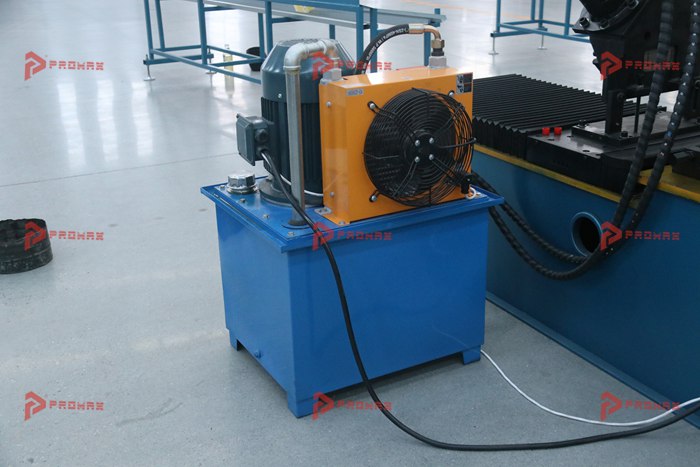

The cutting method is selected according to the track geometry, steel thickness and production requirements.

Specific electrical component brands, control functions and automation features are confirmed in the final technical proposal.

Applications of Drywall U Tracks

Drywall U tracks are commonly used in residential, commercial and institutional interior partition systems.

Typical applications include office partitions, apartment interiors, hotel rooms, shopping facilities, hospitals, schools and renovation projects.

Finished tracks are supplied to drywall contractors, building material distributors and metal framing system manufacturers.

The required track dimensions and installation methods depend on the intended drywall framing system and applicable project specifications.

Advantages of PROMAX Track Roll Forming Equipment

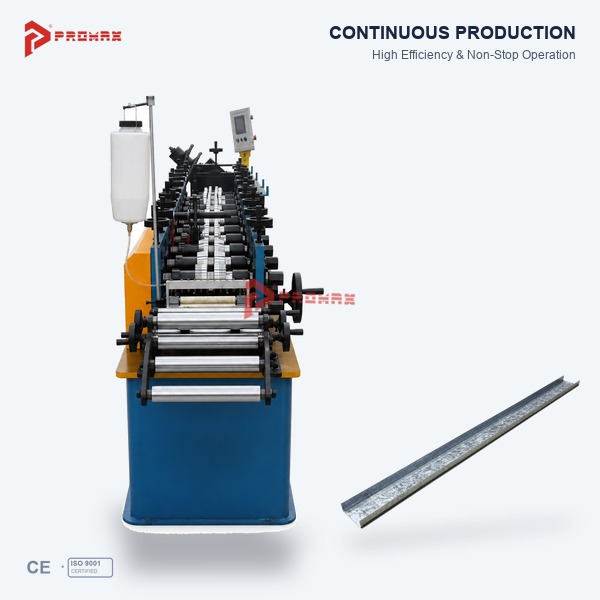

A dedicated drywall track roll forming machine supports continuous manufacturing of approved galvanized steel U track profiles.

Progressive cold forming helps manufacturers maintain repeatable track geometry when the equipment is correctly configured and operated.

Customized forming rollers allow manufacturers to develop track profiles suited to different construction markets.

Automatic cutting options can support production planning by manufacturing finished tracks in specified lengths and quantities.

Actual production performance depends on the machine configuration, material properties, profile geometry and operating conditions.

How to Choose a Track Roll Forming Machine

Before purchasing a track manufacturing machine, customers should confirm their required profile dimensions and steel specifications.

Important information includes the finished U track drawing, web width, flange dimensions, edge details, galvanized steel thickness, incoming coil width and cutting length.

Customers should also consider expected production capacity, available factory space, electrical supply and finished product handling requirements.

If multiple track sizes are required, the necessary tooling or profile adjustment arrangement should be confirmed during the technical evaluation.

PROMAX can review these requirements and prepare a suitable equipment configuration proposal.

Why Choose PROMAX Drywall Track Manufacturing Equipment?

PROMAX specializes in roll forming equipment for drywall framing profiles, metal studs, U tracks, ceiling channels and related light gauge steel construction products.

Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.

We develop customized machine solutions according to customer profile drawings, material specifications and manufacturing objectives.

Whether you are establishing a new drywall profile manufacturing factory or expanding an existing metal framing production facility, PROMAX can evaluate a suitable track production solution.

Request a Track Roll Forming Machine Quotation

Looking for a reliable track roll forming machine for your drywall framing manufacturing business?

Send PROMAX your required U track profile drawings, galvanized steel thickness, material grade, incoming coil width, finished cutting length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment proposal and quotation.

Contact PROMAX today to request your track roll forming machine price.
