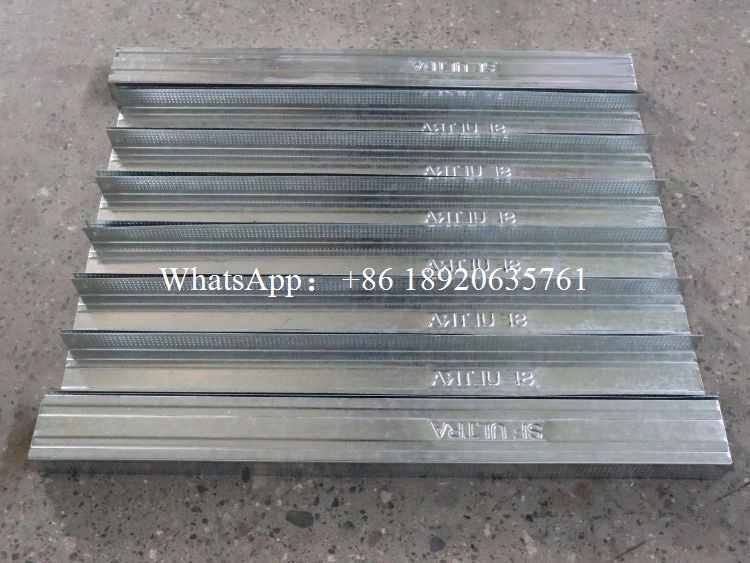

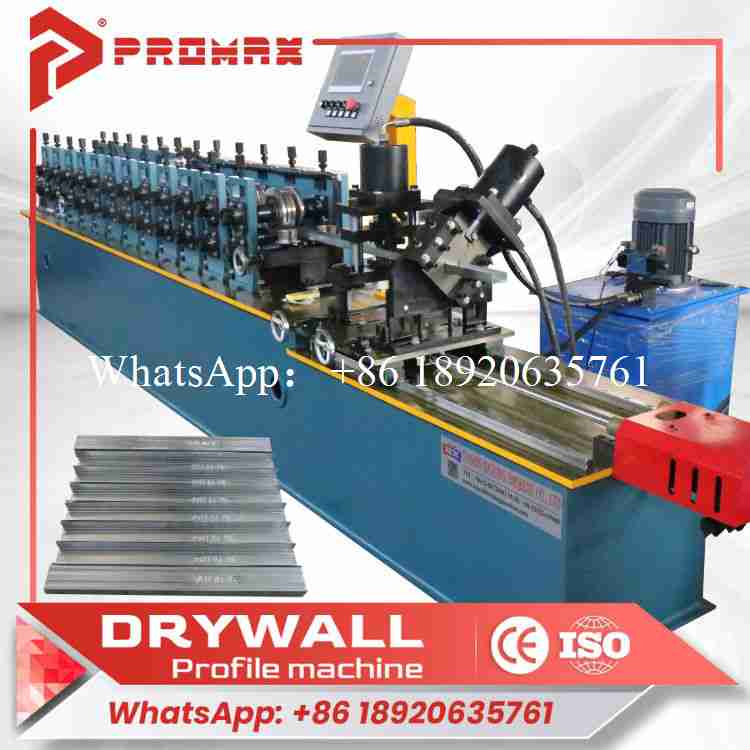

In the fast-paced world of modern construction, the efficiency of producing essential framing components is a direct determinant of project timelines and overall profitability. For manufacturers specializing in drywall and ceiling systems, the U-type track is a foundational element, requiring consistent quality and high-volume output. Integrating an automated, dedicated production line is the most effective strategy to meet these demands. The High Speed U Type Drywall Making Machine stands as a premier solution, engineered to deliver exceptional throughput and precision in the continuous forming of U-type drywall tracks, transforming raw material into finished product with high speed and reliability.
The core strength of the High Speed U Type Drywall Making Machine lies in its streamlined and robust operational sequence.

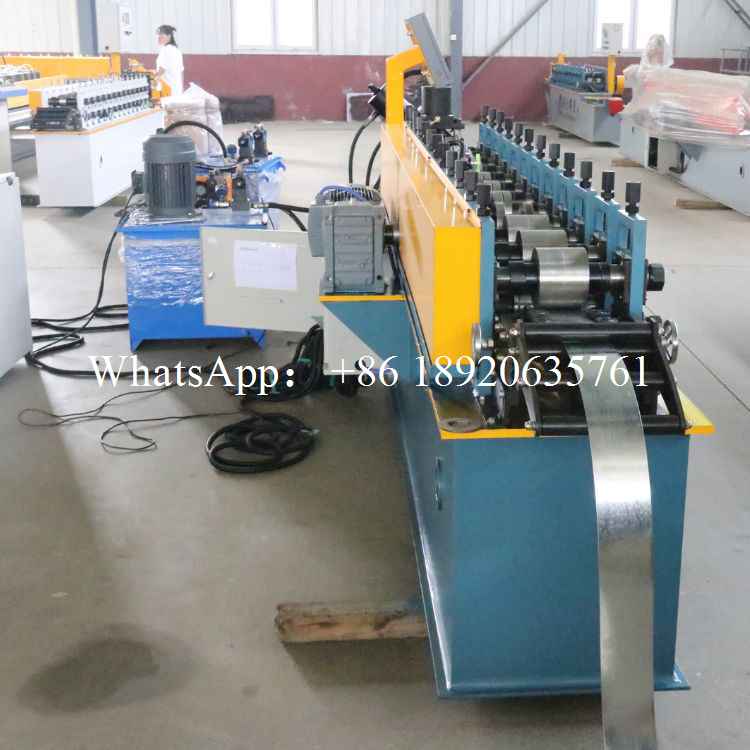

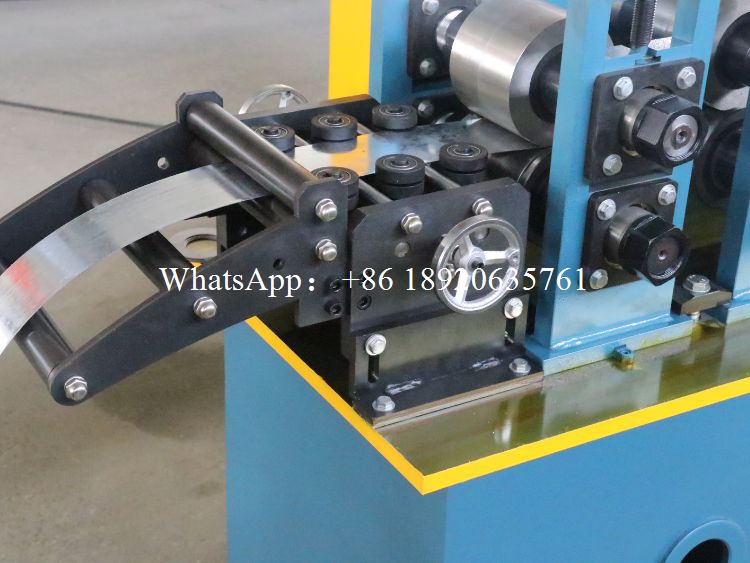

The process commences with an automatic decoiler that feeds steel coil into the system with consistent tension.

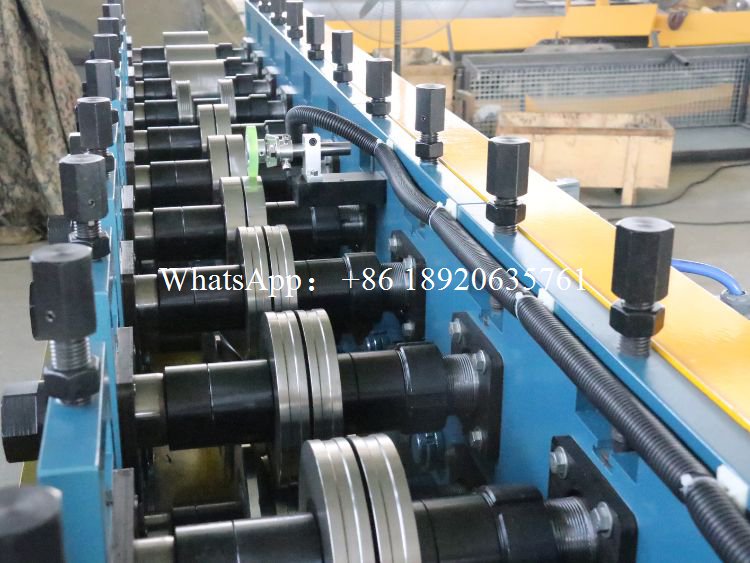

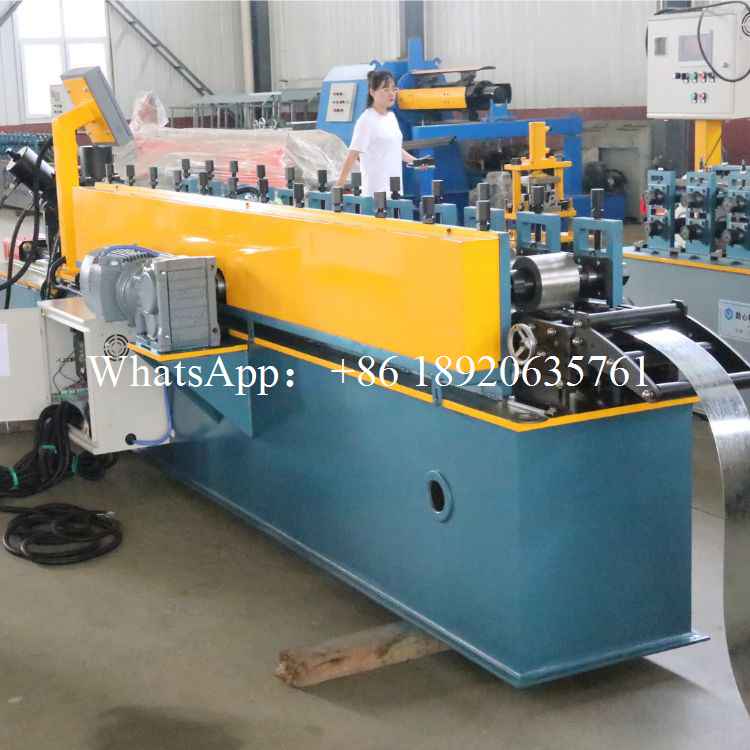

The material then advances into the precision roll forming section, where a series of meticulously calibrated roller dies progressively shape the flat strip into the exact U-profile geometry. This cold-forming process ensures superior dimensional accuracy and material strength.

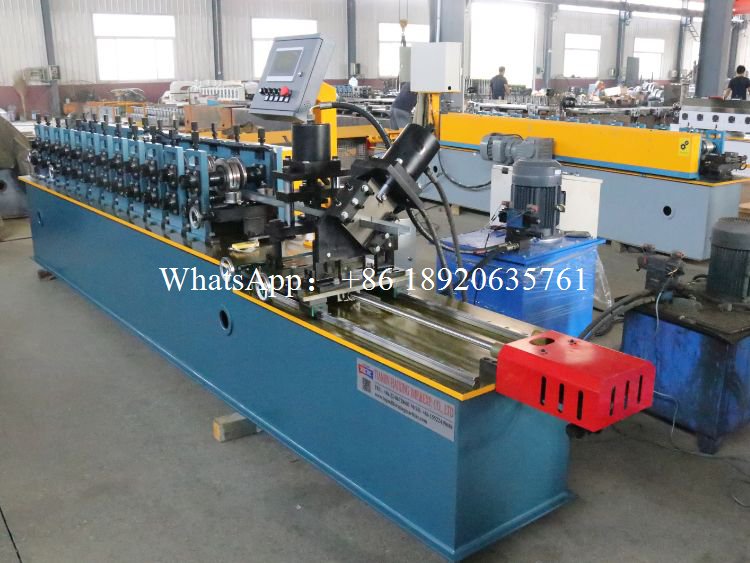

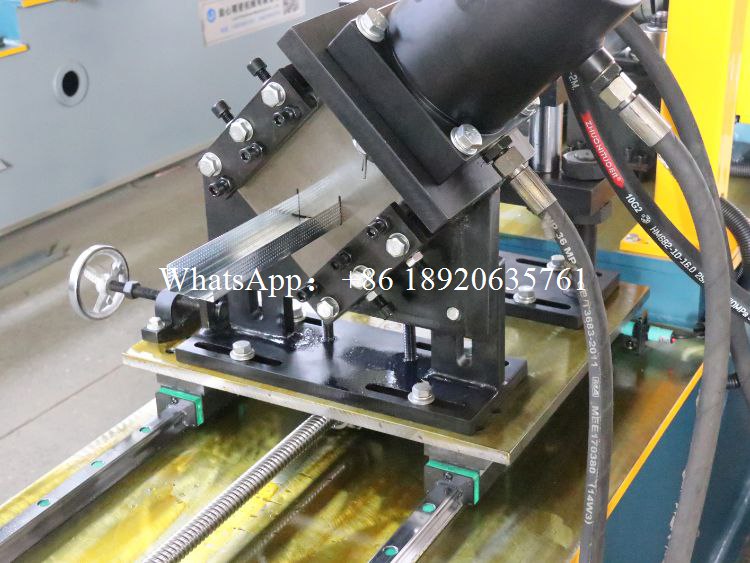

Immediately following forming, a high-speed, synchronized flying cut system shears the continuous profile into precise, pre-set lengths.
This seamless integration of decoiling, forming, and cutting into one continuous flow is the fundamental reason why this High Speed U Type Drywall Making Machine achieves such remarkable production rates while minimizing manual handling and potential for error.
| Product Name | High Speed U Type Drywall Making Machine |
| Formed Material | Steel strip |
| Machine size | 5900*900*1500mm |
| Machine weight | 2400kg |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
| Transmission method | Gear transmission |
| Cutting tolerance | +-1.0 mm |
Beyond its impressive velocity, the High Speed U Type Drywall Making Machine is designed for versatility and global compliance. It offers extensive customization to adapt to diverse production environments and client specifications. Key operational parameters, including the incoming material width, the forming thickness (or gauge), the operating voltage, and the language on the user-friendly touchscreen interface, can all be tailored. This adaptability ensures the High Speed U Type Drywall Making Machine integrates perfectly into your specific factory setup. Furthermore, the machine is constructed in full compliance with rigorous international standards, evidenced by its CE certification. This certification guarantees that the High Speed U Type Drywall Making Machine meets essential health, safety, and environmental protection requirements, facilitating its use in regulated markets and assuring operators of its built-in safety.
To protect your investment and ensure continuous operation, the High Speed U Type Drywall Making Machine is supported by advanced remote service capabilities. Our engineering team can connect to the system for real-time diagnostics, performance monitoring, and video-guided assistance. This proactive support model allows for immediate troubleshooting, remote maintenance guidance, and operational optimization, significantly reducing potential downtime and ensuring your High Speed U Type Drywall Making Machine maintains its peak productivity over the long term.
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a High Speed U Type Drywall Making Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the High Speed U Type Drywall Making Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
