The PROMAX C Stud Making Machine is designed for manufacturing galvanized steel C-shaped studs used in drywall partitions and interior metal framing systems. It supports precision roll forming, customized C stud dimensions and automatic cutting options.
Product Type: C Stud Roll Forming Machine
Key Features: Precision C-profile forming, continuous production, customized tooling and PLC control options.
Material: Galvanized steel coil.
Applications: Drywall partitions, interior wall framing and compatible light gauge steel construction.
Customization: C stud dimensions, steel thickness, cutting length and equipment configuration.
Brand: PROMAX
Contact PROMAX with your C stud drawing and production requirements to request a customized quotation.

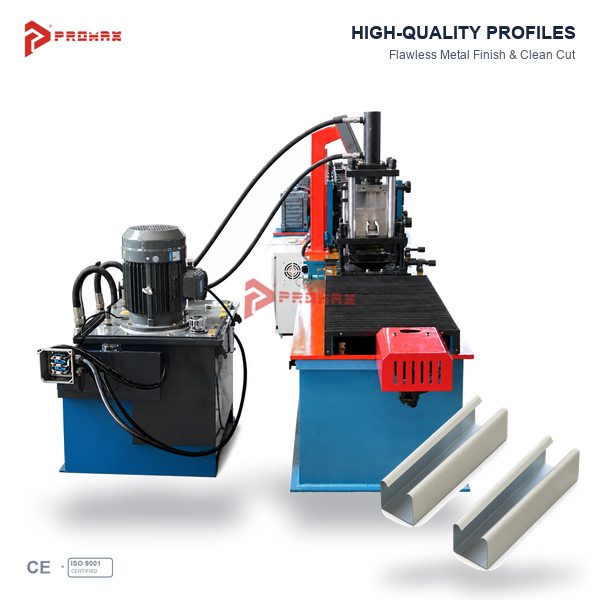

The PROMAX Drywall Stud Roll Forming Machine is developed for manufacturers producing galvanized steel C studs for drywall partition walls and interior metal framing systems. The equipment uses progressive cold roll forming technology to transform flat steel coils into accurately shaped framing profiles according to approved customer drawings.
As drywall construction continues to be adopted in residential, commercial and prefabricated building projects, metal stud manufacturers require equipment that can produce consistent profile dimensions and support different market specifications.
PROMAX provides customized drywall stud manufacturing solutions for building material factories, steel framing suppliers and construction product manufacturers. Each machine proposal is developed according to the required C stud geometry, material specifications and production objectives.
A drywall stud roll forming machine is designed to manufacture C-shaped steel framing members used in compatible drywall construction systems.
The finished profiles typically feature a central web, two flanges and return lips. These dimensions are determined by the required framing system and approved technical drawing.
Dedicated forming rollers progressively bend the galvanized steel strip into the specified cross-section, supporting repeated production of the same profile.
Compared with general-purpose metal bending equipment, a dedicated roll forming solution is designed around continuous manufacturing of the selected stud geometry.
The production process uses a series of roller stations to gradually form the incoming steel strip.
Each station performs a controlled bending operation, progressively developing the C stud web, flanges and return lips.
The forming sequence is determined according to the approved profile dimensions, material thickness and steel strength.
Appropriate material guidance, roller alignment and forming tooling help maintain the required profile geometry throughout the manufacturing process.
The finished C studs can be cut to specified lengths using a compatible cutting arrangement.
Drywall framing systems vary between construction markets. Manufacturers may require different C stud widths, flange dimensions and material thicknesses to match local building practices.
PROMAX can evaluate customized drywall stud machines based on customer-supplied profile drawings.
Important design parameters include web width, flange height, return lip dimensions, incoming coil width and required finished length.
For manufacturers producing multiple stud sizes, suitable adjustment mechanisms or additional tooling can be evaluated according to the requested product range.
The final supported profile dimensions depend on the approved equipment design.
Galvanized steel is widely used in drywall stud manufacturing because it provides suitable formability and protective surface coating characteristics for many interior construction applications.
The equipment configuration must match the selected steel thickness, yield strength, strip width and coating properties.
These material characteristics influence forming roller design, material feeding arrangements and production settings.
PROMAX reviews the intended steel specifications to determine a suitable forming solution for the required C stud profile.
A typical drywall stud manufacturing process includes coil preparation, material feeding, progressive forming, cutting and finished product collection.
Decoiling: A suitable decoiler supports the galvanized steel coil and supplies strip material to the machine.
Material Guidance: The incoming strip is aligned before entering the forming section.
Roll Forming: Dedicated roller stations progressively develop the required C-shaped stud profile.

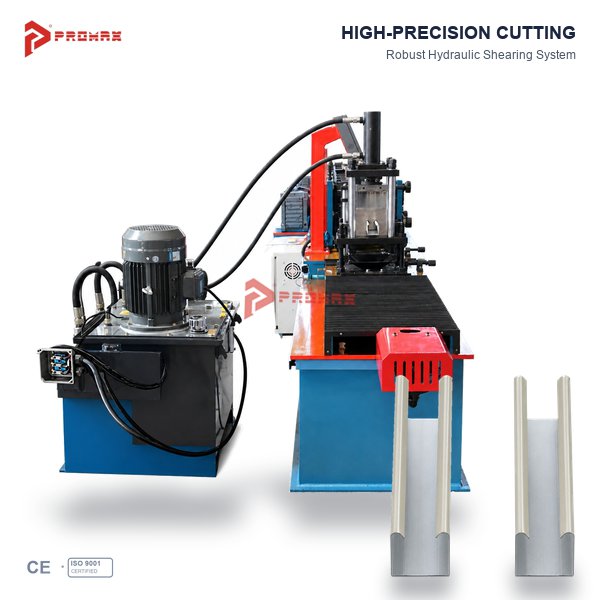

Cutting: The formed profile is cut according to the specified finished length.
Collection: Completed studs are inspected and prepared for stacking, packaging or delivery.
Additional equipment functions can be evaluated according to the customer's manufacturing requirements.

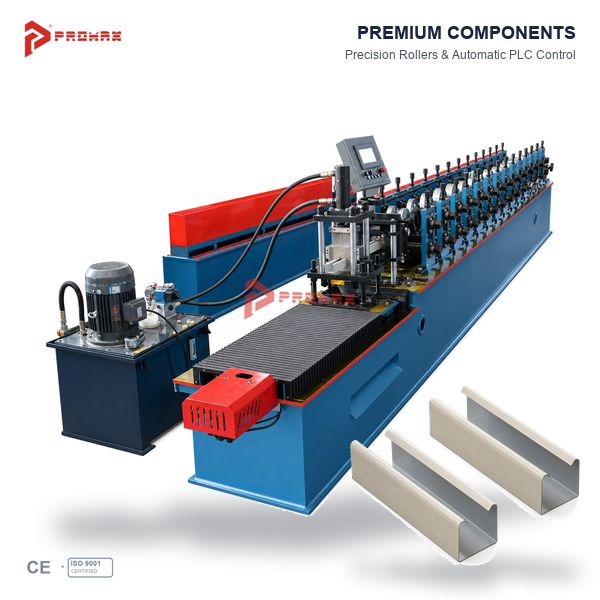

The PROMAX drywall stud roll forming machine can be configured with PLC-based controls and automatic length cutting options.
Depending on the approved machine design, operators may enter required production lengths and quantities through a control interface.
Automatic cutting arrangements support the manufacture of studs in different lengths for customer orders and construction projects.
Control components, cutting methods and other electrical specifications are confirmed during technical planning.
C-shaped metal studs are commonly used as vertical framing members in drywall partition systems.
They are typically assembled with compatible U tracks to form a framework supporting gypsum boards or other approved wall panels.
Applications include residential interior partitions, office fit-outs, commercial buildings, hotels, retail interiors and prefabricated wall assemblies.
Required stud dimensions, steel thickness and installation spacing depend on the intended framing system and project specifications.
Manufacturers should confirm compatibility with matching tracks, boards, fasteners and installation accessories.
A dedicated metal stud roll former enables manufacturers to produce drywall framing profiles according to their approved product requirements.
Continuous roll forming supports repeated manufacturing of a consistent cross-section when the machine is correctly configured for the selected steel material.
Manufacturers can organize production around different customer orders, profile lengths and market requirements.
Customized equipment also allows suppliers to develop products intended for specific drywall framing systems.
Actual production performance depends on machine configuration, material properties, profile dimensions and operating conditions.
PROMAX develops drywall stud manufacturing equipment according to the customer's required finished profile and production objectives.
Potential configuration options include dedicated forming rollers, suitable dimension adjustment arrangements, PLC control, automatic cutting and compatible coil handling equipment.
Optional punching arrangements or other special processing functions can be evaluated separately when required by the customer.
Different profile dimensions and special manufacturing functions may require additional tooling or equipment adjustments.
The final machine configuration is determined according to the approved technical specifications.
Dimensional consistency is important for metal studs because the finished profiles must fit the intended drywall framing system.
Recommended inspection items include web width, flange dimensions, return lip geometry, finished length, straightness and visible surface condition.
Sample profiles should be compared with approved technical drawings before regular manufacturing.
Consistent inspection procedures help manufacturers identify dimensional variations and maintain production quality.
Before selecting a drywall stud manufacturing machine, customers should define their required profile geometry and production requirements.
Important information includes the C stud cross-sectional drawing, steel thickness, incoming coil width, finished stud length and expected production capacity.
Factory space, electrical supply, coil handling arrangements and finished product collection requirements should also be considered.
PROMAX can review these specifications and prepare a customized equipment proposal.
PROMAX specializes in roll forming equipment for drywall profiles, metal studs, tracks and light gauge steel framing products.
We provide customized machine solutions based on customer drawings, material specifications and manufacturing objectives.
Our services include profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new drywall profile factory or expanding an existing metal framing manufacturing business, PROMAX can evaluate a suitable equipment solution.
Looking for a reliable drywall stud roll forming machine for your metal framing manufacturing business?
Send PROMAX your required C stud drawing, profile dimensions, galvanized steel thickness, incoming coil width, finished stud length and expected production capacity.
Our technical team can review your requirements and prepare a customized machine proposal and quotation.
Contact PROMAX today to discuss your drywall stud manufacturing project.
