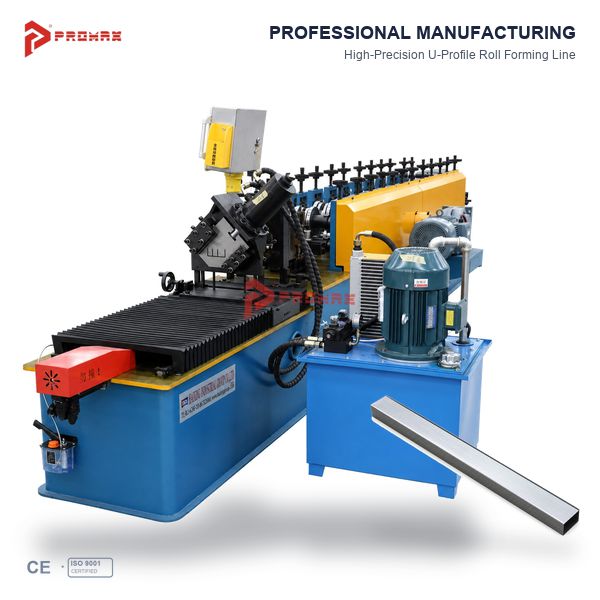

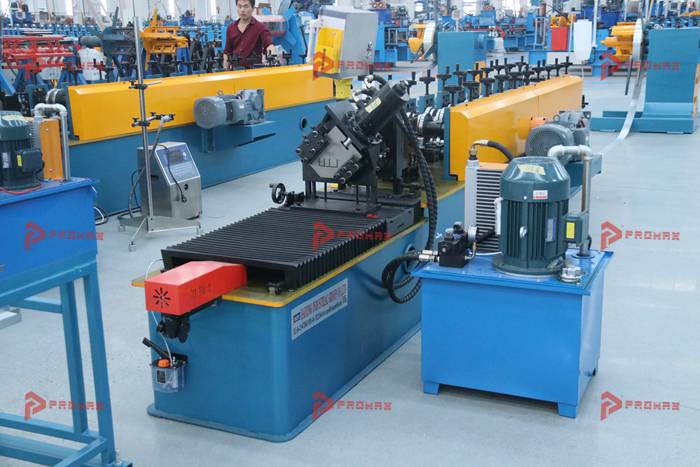

PROMAX U Channel Roll Forming Machine

PROMAX U Channel Roll Forming Machine for Galvanized Drywall Track Production

The PROMAX U channel roll forming machine is designed for manufacturing galvanized steel U-shaped profiles used in drywall partition systems, interior metal framing and light gauge steel construction applications. Using progressive cold roll forming technology, the machine transforms galvanized steel coils into accurately formed U channels according to customer drawings and production requirements.

U channels, also known as U tracks in drywall framing systems, are commonly installed along floors and ceilings to guide and position compatible vertical metal studs. Consistent track dimensions are important for proper assembly and installation of metal framing systems.

PROMAX provides customized U track roll forming machines for drywall profile manufacturers, building material suppliers and light steel framing factories. Machine configurations are developed according to the required U profile dimensions, steel specifications and production objectives.

U Channel Manufacturing for Drywall Partition Systems

A U channel roll forming machine is specialized cold forming equipment used to manufacture U-shaped metal profiles from suitable steel strip.

In drywall partition systems, U tracks are generally used as horizontal framing members at the top and bottom of the partition wall.

They provide positioning and guidance for compatible vertical C studs, helping form the required metal framing structure.

U-shaped profiles can have different web widths, flange heights and edge details depending on the intended construction system.

PROMAX evaluates customer-supplied profile drawings to develop suitable forming rollers and machine configurations.

Precision Cold Roll Forming Technology

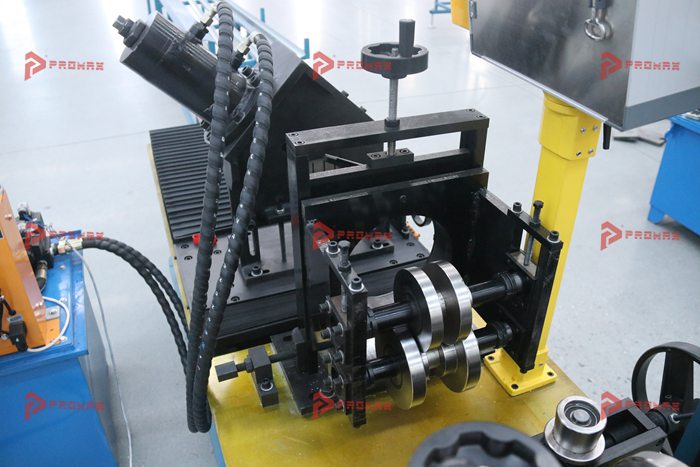

The PROMAX steel U channel machine uses a series of dedicated roller stations to progressively shape flat galvanized steel strip into the required U-shaped cross-section.

Each forming station performs a controlled bending operation until the specified profile geometry is achieved.

The roller arrangement is developed according to the required track dimensions, material thickness and steel properties.

Accurate strip guidance and roller alignment help support consistent profile dimensions during continuous production.

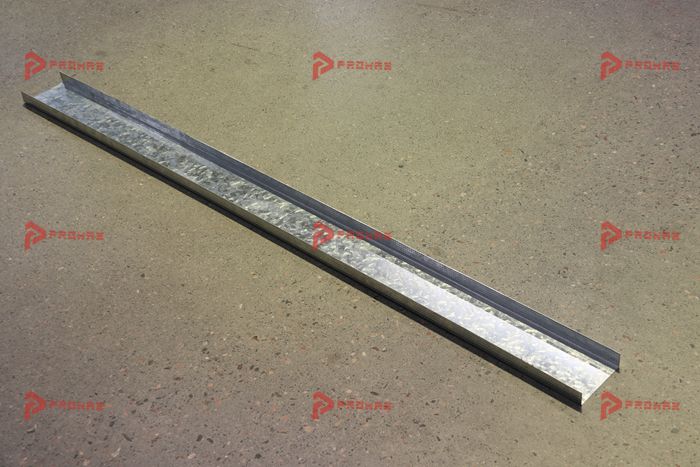

Finished U tracks should be inspected against the approved technical drawings to confirm their dimensions and surface condition.

Customized U Track Profiles and Dimensions

Different construction markets require different U track dimensions for drywall framing systems.

PROMAX can evaluate customized U channel making machines according to customer-supplied drawings.

Important customization parameters include U channel web width, flange height, galvanized steel thickness, incoming coil width and required cutting length.

Additional profile features, such as specialized edge details or punching requirements, can be evaluated according to the intended product design.

Different U channel sizes may require dedicated forming tooling or an approved adjustment arrangement.

Customers requiring multiple U track dimensions should confirm the supported size range and changeover method before ordering.

Galvanized Steel U Profile Processing

Galvanized steel is commonly used for manufacturing drywall U tracks and other light gauge metal framing components.

The protective zinc coating provides corrosion resistance suitable for specified construction environments.

The galvanized U profile machine is configured according to the required steel grade, material thickness, incoming coil width and coating characteristics.

Different material specifications may require adjustments to the forming roller design or production conditions.

PROMAX evaluates the customer's steel specifications before confirming the final equipment configuration.

Automatic U Channel Manufacturing Process

A typical U channel manufacturing process includes several coordinated production stages.

1. Decoiling: Galvanized steel coil is loaded onto a suitable decoiler and supplied to the production line.

2. Material Guiding: The steel strip passes through a guiding section to support correct alignment.

3. Roll Forming: Dedicated forming rollers progressively shape the steel strip into the required U channel profile.

4. Length Cutting: The finished U track is cut to the specified production length.

5. Collection and Inspection: Completed U profiles are collected, checked and prepared for packaging.

The final production sequence and automation functions depend on the approved machine configuration.

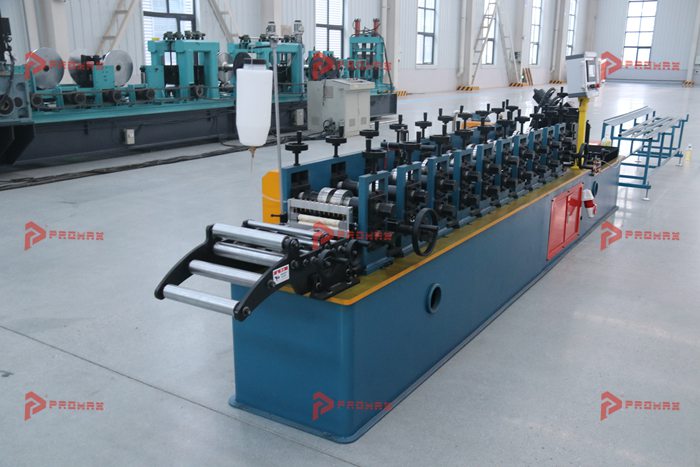

PLC Control and Automatic Cutting Options

PROMAX U channel roll forming equipment can be configured with PLC-based production control and automatic length cutting functions.

Depending on the approved control arrangement, operators may enter the required profile length and production quantity through the machine interface.

Automatic cutting supports repeated production of U tracks in specified lengths.

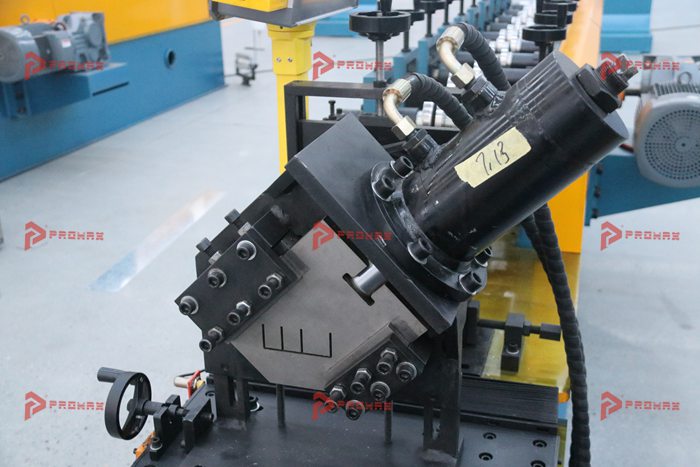

The cutting method is selected according to the U profile geometry, galvanized steel thickness and production requirements.

Specific electrical component brands and automation functions are confirmed in the final technical proposal.

Applications of U Channel Profiles

U channels are widely used in drywall partition walls and interior metal framing systems.

Typical applications include residential interior partitions, commercial office walls, hotels, shopping facilities, hospitals, schools and renovation projects.

Finished U tracks are commonly supplied to drywall contractors, building material distributors and metal framing system manufacturers.

The required track dimensions and installation methods depend on the intended drywall framing system and applicable project specifications.

Benefits of U Channel Roll Forming Equipment

A dedicated U channel roll forming machine supports continuous manufacturing of approved galvanized steel U track profiles.

Progressive cold forming helps manufacturers maintain repeatable profile geometry when the equipment is correctly configured and operated.

Customized forming rollers allow manufacturers to develop U profiles suited to different construction markets.

Automatic cutting options can support production planning by manufacturing finished tracks in specified lengths and quantities.

Actual production performance depends on the machine configuration, material properties, profile geometry and operating conditions.

How to Choose a U Channel Roll Forming Machine

Before purchasing a U track manufacturing machine, customers should confirm their required profile dimensions and steel specifications.

Important information includes the finished U track drawing, web width, flange dimensions, galvanized steel thickness, incoming coil width and cutting length.

Customers should also consider expected production capacity, available factory space, electrical supply and finished product handling requirements.

If multiple U channel sizes are required, the necessary tooling or profile adjustment arrangement should be confirmed during the technical evaluation.

PROMAX can review these requirements and prepare a suitable equipment configuration proposal.

Why Choose PROMAX U Track Manufacturing Equipment?

PROMAX specializes in roll forming equipment for drywall framing profiles, metal studs, U tracks, ceiling channels and related light gauge steel construction products.

Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.

We develop customized machine solutions according to customer profile drawings, material specifications and manufacturing objectives.

Whether you are establishing a new drywall profile manufacturing factory or expanding an existing metal framing production facility, PROMAX can evaluate a suitable U track production solution.

Request a U Channel Roll Forming Machine Quotation

Looking for a reliable U channel roll forming machine for your drywall framing manufacturing business?

Send PROMAX your required U track profile drawings, galvanized steel thickness, material grade, incoming coil width, finished cutting length and expected production capacity.

Our technical team can review your requirements and prepare a customized equipment proposal and quotation.

Contact PROMAX today to request your U channel roll forming machine price.
