The PROMAX U Channel Forming Machine is designed for producing galvanized steel U tracks used in drywall partition systems and interior metal framing.
Brand: PROMAX
Machine Type: U Track Cold Roll Forming Machine
Material: Galvanized Steel
Key Features: Precision U profile forming, continuous production, customized track dimensions and automatic cutting options.
Applications: Drywall U tracks, interior partitions and light gauge steel framing.
Customization: Profile dimensions, material thickness, cutting length and machine configuration.
Send PROMAX your U channel drawing to request a customized machine quotation.

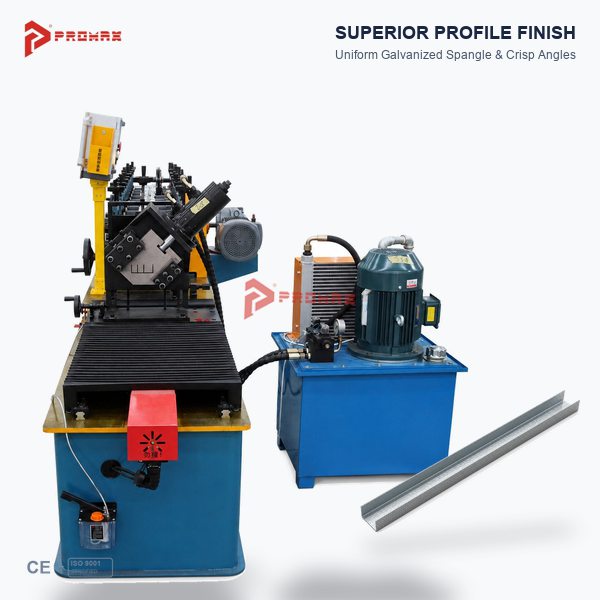

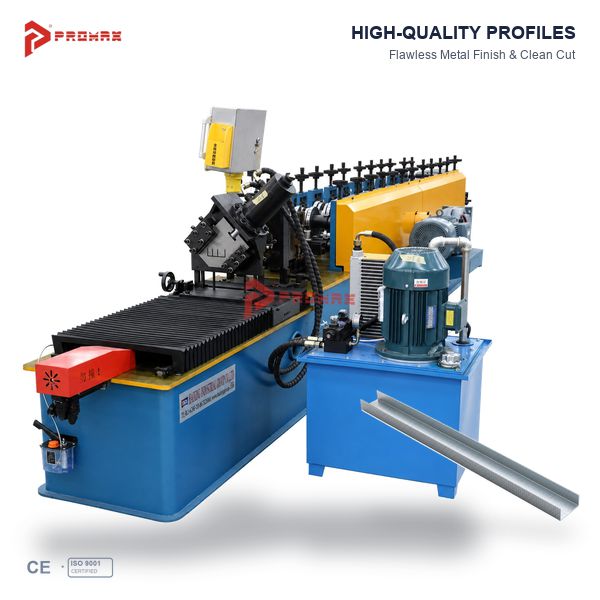

The PROMAX U channel forming machine is designed to manufacture galvanized steel U-shaped profiles for drywall partition systems and interior metal framing applications. Through progressive cold roll forming, the equipment converts flat steel strip into U channels with dimensions and cross-sectional geometry based on approved customer drawings.
In drywall construction, U channels are commonly referred to as U tracks. These profiles are installed along the floor and ceiling to position compatible vertical steel studs. Accurate track dimensions are important for assembling metal framing systems and maintaining consistency between related framing components.
PROMAX supplies customized steel U channel forming machines for drywall profile manufacturers, building material suppliers and metal framing factories. The equipment can be designed around specified U channel dimensions, galvanized steel properties and production requirements.
A U channel forming machine is a type of cold roll forming equipment used to shape metal strip into a U-shaped cross-section.
For drywall framing applications, the finished U channels typically serve as tracks that hold and guide compatible C-shaped studs.
The profile geometry may include a flat web, two flanges and other specified details depending on the intended construction system.
Unlike general-purpose metal bending equipment, a dedicated roll forming machine uses multiple forming stations to shape the material progressively during continuous production.
PROMAX develops forming arrangements according to customer drawings and the required material specifications.

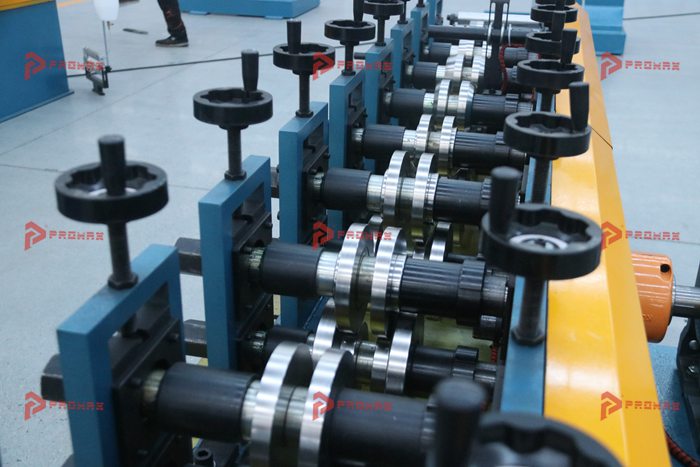

The PROMAX metal U channel forming machine uses successive roller stations to gradually bend galvanized steel strip into the required U-shaped profile.
Each station contributes to the forming sequence, helping control the shape as the strip travels through the machine.
The roller arrangement is developed according to the specified web width, flange height, steel thickness and material properties.
Correct material guidance, roller alignment and equipment adjustment help support repeatable profile geometry.
Finished U channels should be inspected against the approved drawings to verify their dimensions and surface condition.
U channels used in drywall framing are manufactured in different dimensions according to local construction practices and framing system requirements.
PROMAX can evaluate customized U channel making machines for specified track profiles.
Key design information includes the required web width, flange dimensions, steel thickness, incoming strip width, edge details and finished cutting length.
Customers can provide technical drawings or representative profile samples for evaluation.
Additional requirements, including punching or specialized profile geometry, can be reviewed during the machine design process.
Manufacturing multiple U channel sizes may require dedicated tooling or a suitable profile adjustment arrangement. The supported range must be confirmed before production.
Galvanized steel is commonly selected for drywall tracks because its zinc coating provides corrosion protection suitable for specified interior construction environments.
The galvanized U channel machine is configured according to the intended steel grade, material thickness, coil width and coating characteristics.
Material specifications affect roller design, forming conditions and machine adjustment requirements.
PROMAX reviews customer material data to develop an appropriate equipment configuration.
Other materials can be evaluated where technically suitable, but compatibility must be confirmed for the specific machine design.
A typical U channel manufacturing process includes the following stages:
1. Steel Coil Loading: A suitable galvanized steel coil is positioned on the decoiler.
2. Material Feeding: The steel strip is guided into the forming section with the required alignment.
3. Progressive Roll Forming: Dedicated forming rollers gradually bend the steel into the specified U-shaped cross-section.
4. Length Cutting: The formed channel is cut to the required finished length using the configured cutting system.
5. Product Collection: Finished channels are collected for dimensional inspection, counting and packaging.
Optional processes and the degree of automation depend on the approved production line configuration.

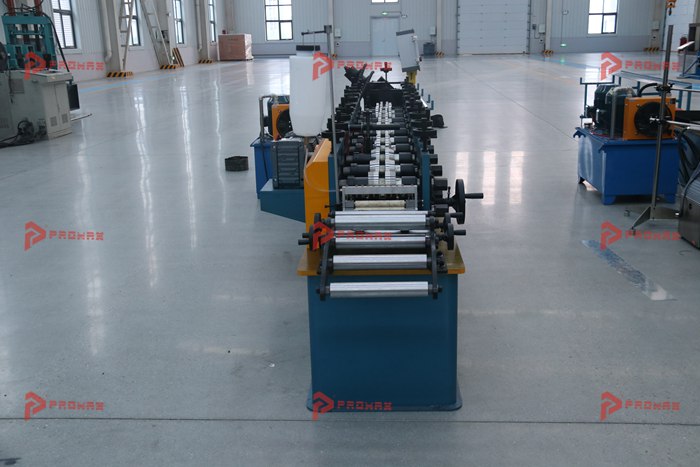

PROMAX U channel forming machines can be configured with PLC-based controls and automatic cutting systems.
Depending on the selected control arrangement, operators may enter the required finished length and production quantity through a control interface.
Automatic cutting can support repetitive production of U channels with consistent specified lengths.
The appropriate cutting method depends on the profile geometry, material thickness and expected production conditions.
Control functions and electrical component brands are confirmed in the final technical specifications.

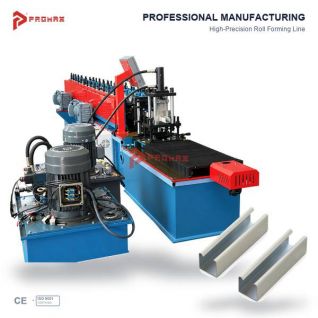

Drywall U tracks are designed to work with compatible C studs in a metal partition framing system.
U tracks are generally installed horizontally, while C studs are positioned vertically between the tracks.
For manufacturers supplying both products, the dimensions of the stud and track must be coordinated according to the intended framing system.
PROMAX can evaluate U channel production requirements using the customer's existing C stud drawings.
Manufacturers needing both profile types may consider separate machines or a suitable combined stud-and-track production solution.
The available production arrangement depends on the selected equipment configuration.
U channels manufactured for drywall framing are used in residential, commercial and institutional interior construction.
Common applications include apartment partition walls, office interiors, hotels, shopping centers, hospitals, schools and renovation projects.
Finished U tracks may be supplied to drywall system manufacturers, building material distributors and installation contractors.
Profile dimensions and installation methods should follow the relevant construction system requirements.
A dedicated U channel forming machine offers a continuous production method for approved U-shaped metal profiles.
Progressive forming supports repeatable profile geometry when the equipment is correctly configured and operated.
Customized rollers allow manufacturers to produce U tracks designed for their target construction markets.
Automatic cutting options can help organize production by finished length and order quantity.
The equipment can also be configured according to the available factory space, material specifications and expected production volume.
Actual manufacturing performance depends on the approved technical configuration and operating conditions.
When selecting a U channel manufacturing machine, customers should first confirm the required finished profile drawings.
Important parameters include U channel web width, flange height, steel thickness, incoming coil width, material grade and cutting length.
Manufacturers should also consider their expected production capacity, electrical supply, factory layout and finished product handling requirements.
If several U channel dimensions are required, the tooling arrangement and adjustment method should be evaluated in advance.
PROMAX can review these details and recommend a suitable machine configuration.
PROMAX focuses on roll forming equipment for drywall profiles, steel studs, U tracks, ceiling channels and other light gauge metal framing products.
Our team supports customers through profile evaluation, equipment design, machine manufacturing, factory testing and technical assistance.
Machine solutions can be developed according to customer-supplied drawings, material specifications and production objectives.
Whether you are starting a drywall track manufacturing business or upgrading an existing profile factory, PROMAX can evaluate equipment suitable for your production requirements.
Looking for a reliable U channel forming machine for your drywall profile manufacturing business?
Send PROMAX your U channel drawings, galvanized steel specifications, material thickness, required cutting length and expected production capacity.
Our technical team can evaluate your requirements and prepare a customized equipment proposal.
Contact PROMAX today to request your U channel forming machine price and technical quotation.
